The Configuration menu contains the administrative controls for a WebReports installation. Use it to set up email delivery, review application database storage, maintain registration and tenant licenses, change global settings, customize branding, authorize integrations, and manage extensions.
Use Configuration during initial setup and when an operational requirement changes—for example, when moving to a new mail provider, reviewing report retention, or granting an integration access. Report publishing, connections, users, roles, and assignments are managed in the Management area.
Available options depend on the installed WebReports version, license, and your permissions. Screenshots illustrate the interface in WebReports 2026.10.12.3.

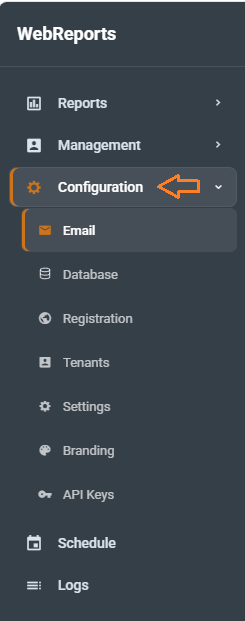

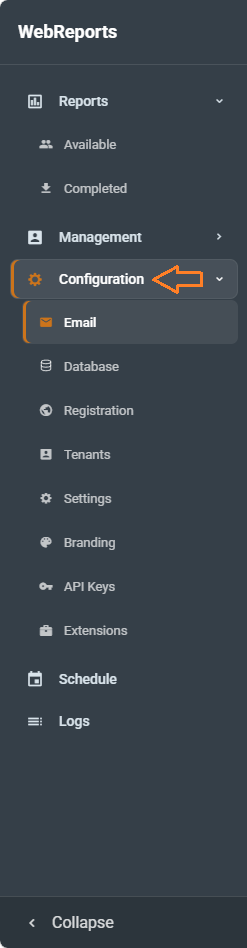

Open Configuration
- Sign in to WebReports with an administrator account.
- Expand Configuration in the left navigation.
- Select the configuration page you want to manage.
Screenshots use fictional demo data. Example settings are not recommended values or a statement of the defaults. Select an image to view its full size.
Choose the configuration area
| Area | What it controls | When to use it |
|---|---|---|
| SMTP or Microsoft Graph delivery and account-email templates. | Set up outgoing messages or change the mail provider or message wording. | |
| Database | Application database storage, shrinking, and importing WebReports data. | Investigate growth or plan an application-data migration. |
| Registration | Registration details and status for this installation. | Review licensing or submit registration information. |
| Tenants | Tenant licenses and email-domain associations. | Manage a licensed multitenant deployment. |
| Settings | Global processing, retention, statistics, notifications, AI, and integration settings. | Change application behavior or investigate capacity and storage requirements. |
| Branding | Application colors, header text, images, and favicons. | Apply the organization’s visual identity. |
| API Keys | Credentials and restrictions for Report Designer and Management API clients. | Authorize an integration or maintain an existing key. |
| Extensions | Installed packages, entitlement information, and available licensed extensions. | Review extension availability and plan installation. |
Set up SMTP delivery for application messages and account workflows. Save with Update, then use Send Test Email to verify delivery. See Creating an Email Profile in WebReports.

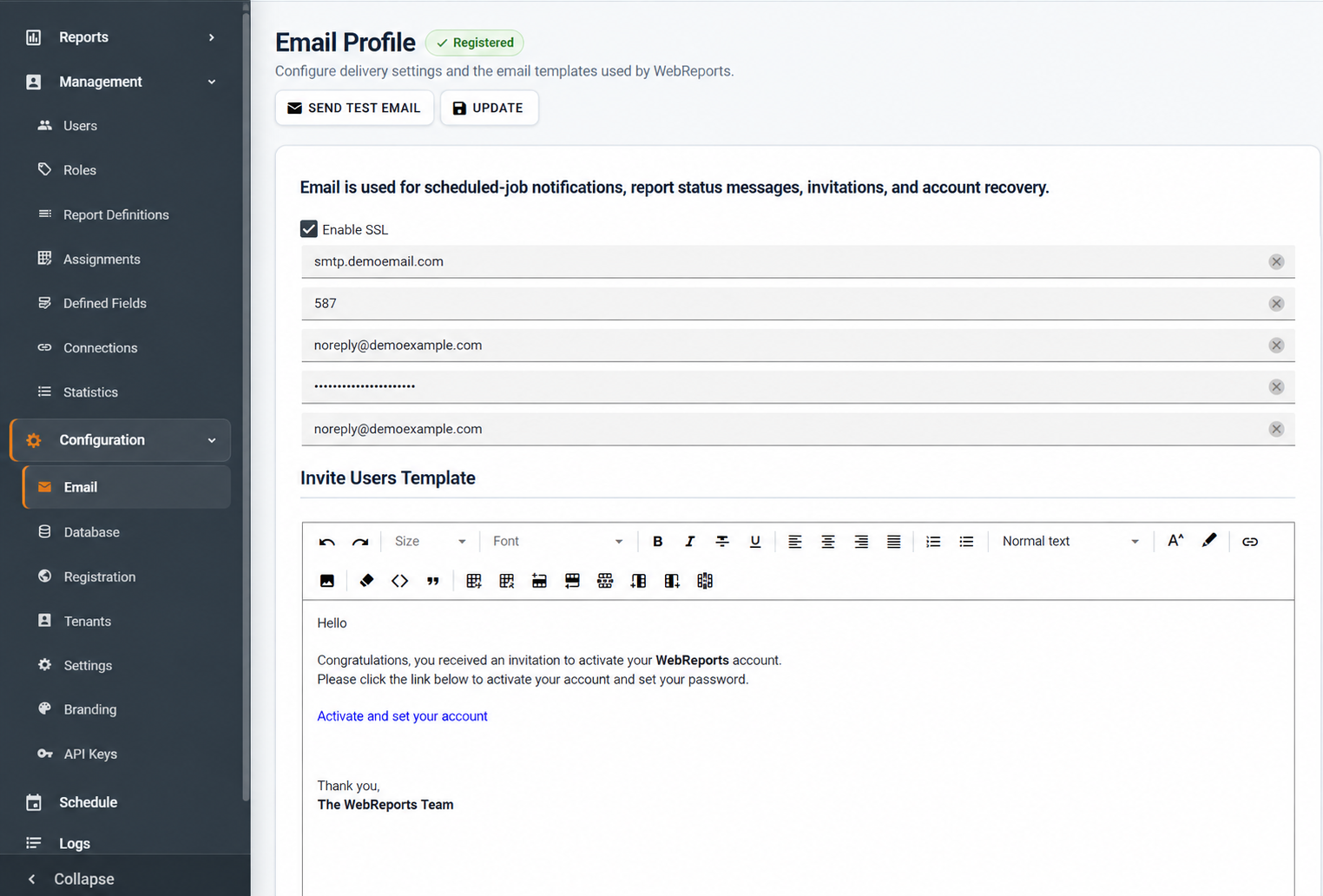

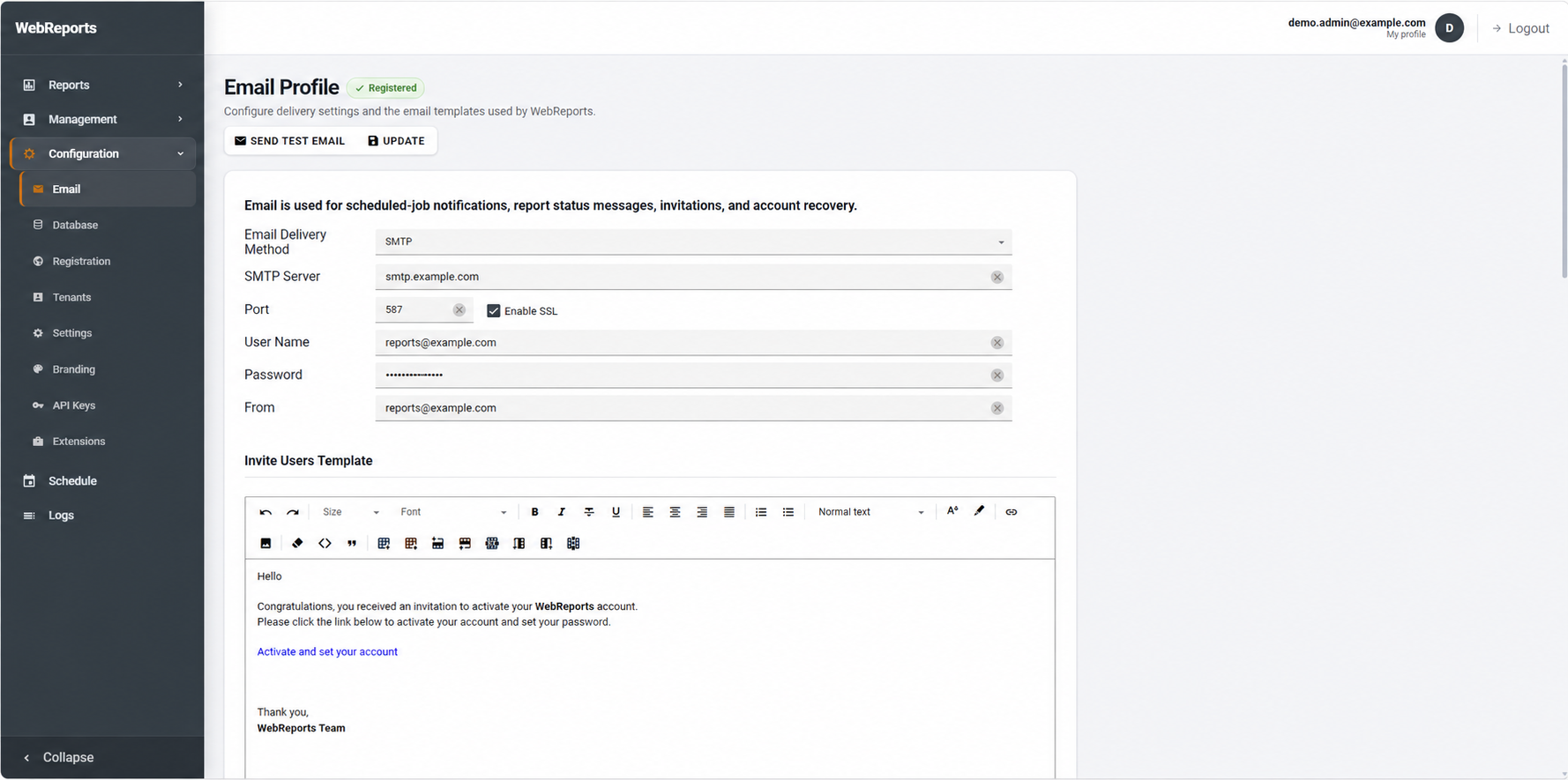

Email Profile with SMTP selected and fictional sender settings.

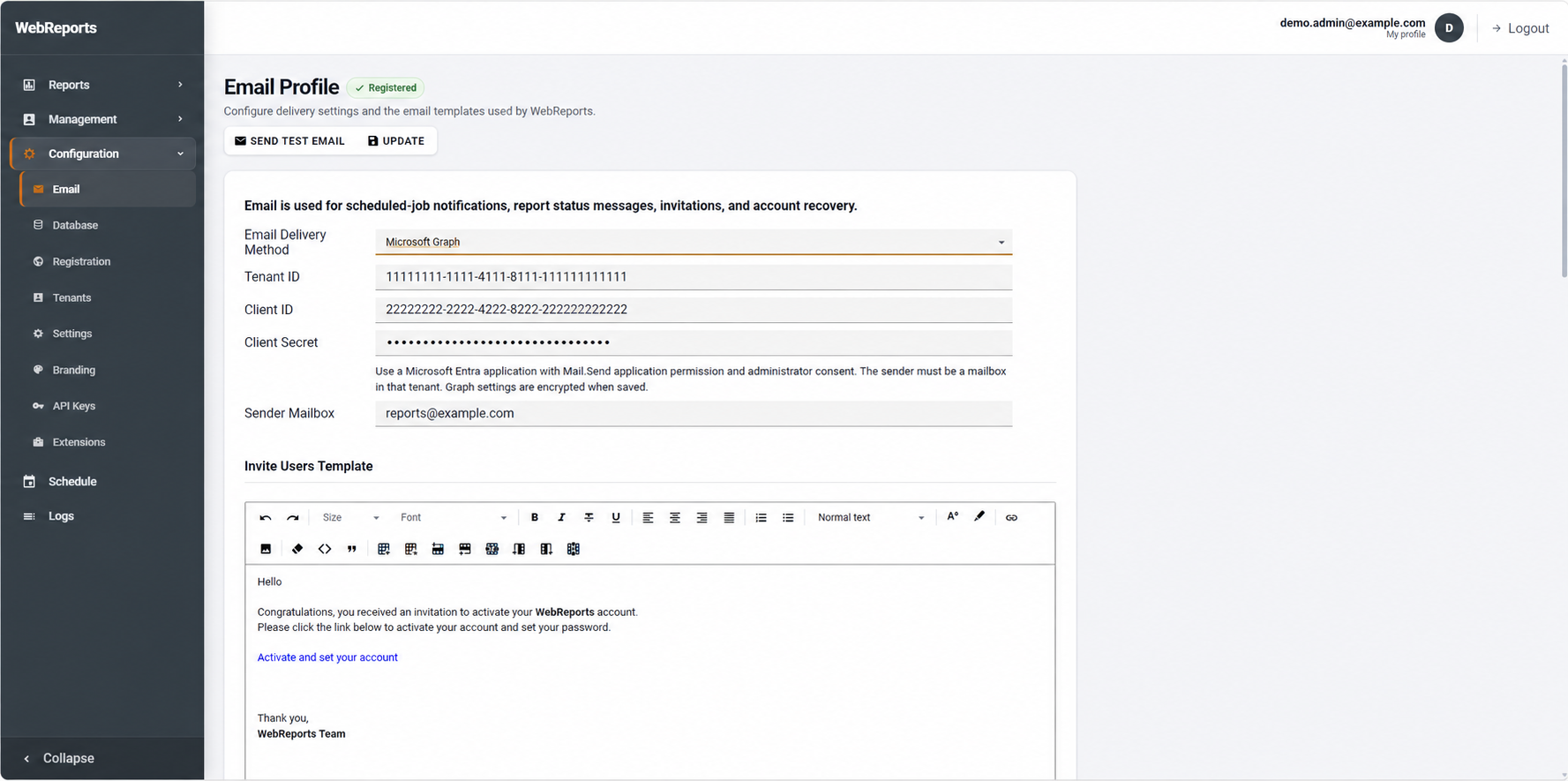

Microsoft Graph email
Use Microsoft Graph when your organization sends application email through Microsoft 365. Prepare the Entra application and mailbox permissions before entering the Graph fields in WebReports. See Setting Up Microsoft Graph Email for WebReports.
Email Profile with Microsoft Graph selected and fictional application identifiers.
Database
Review application database storage before planning maintenance. The manual shrink and import actions change database state and should be planned with the database administrator. See Database Maintenance.

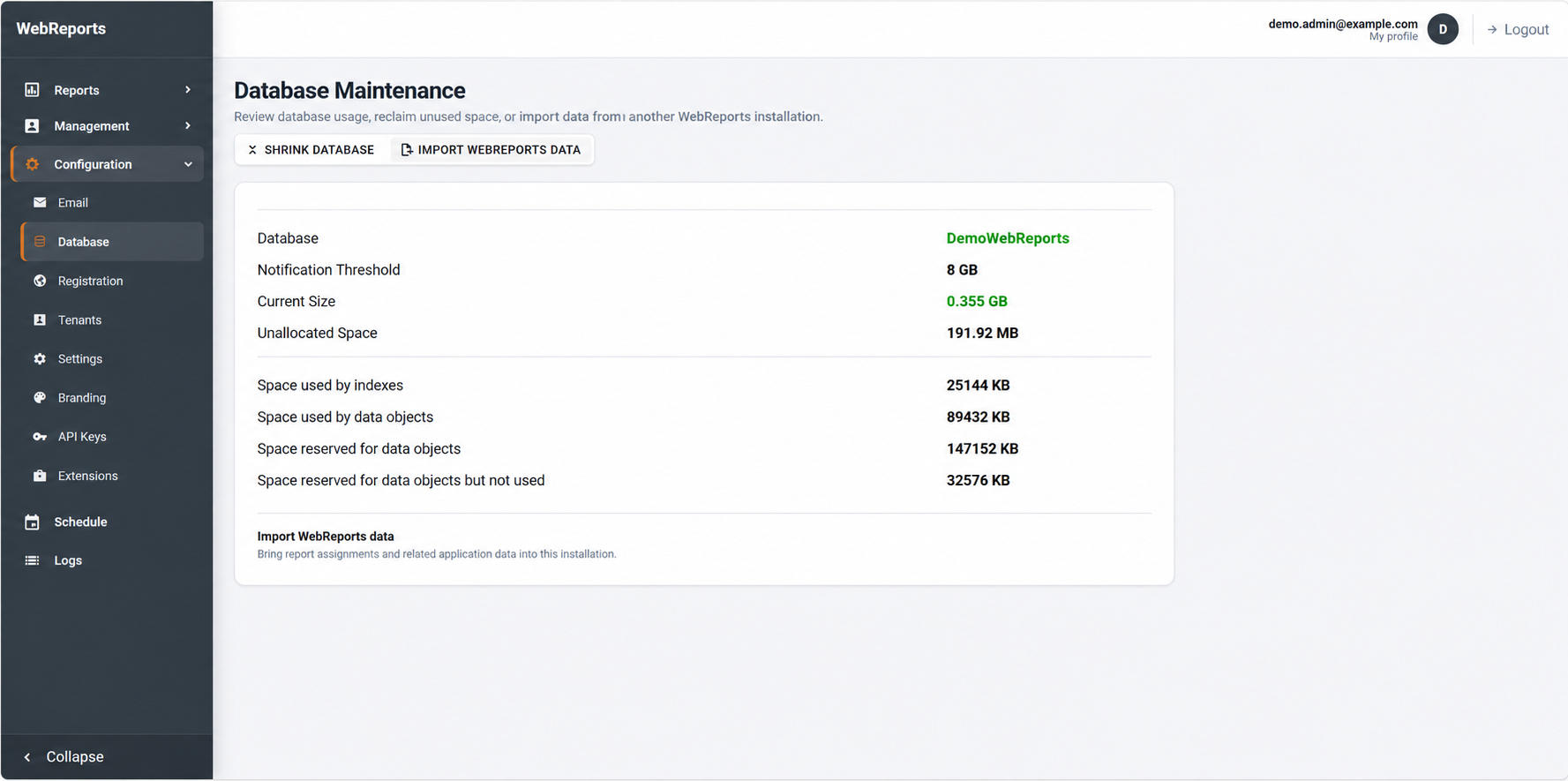

Database Maintenance for the fictional DemoWebReports application database.

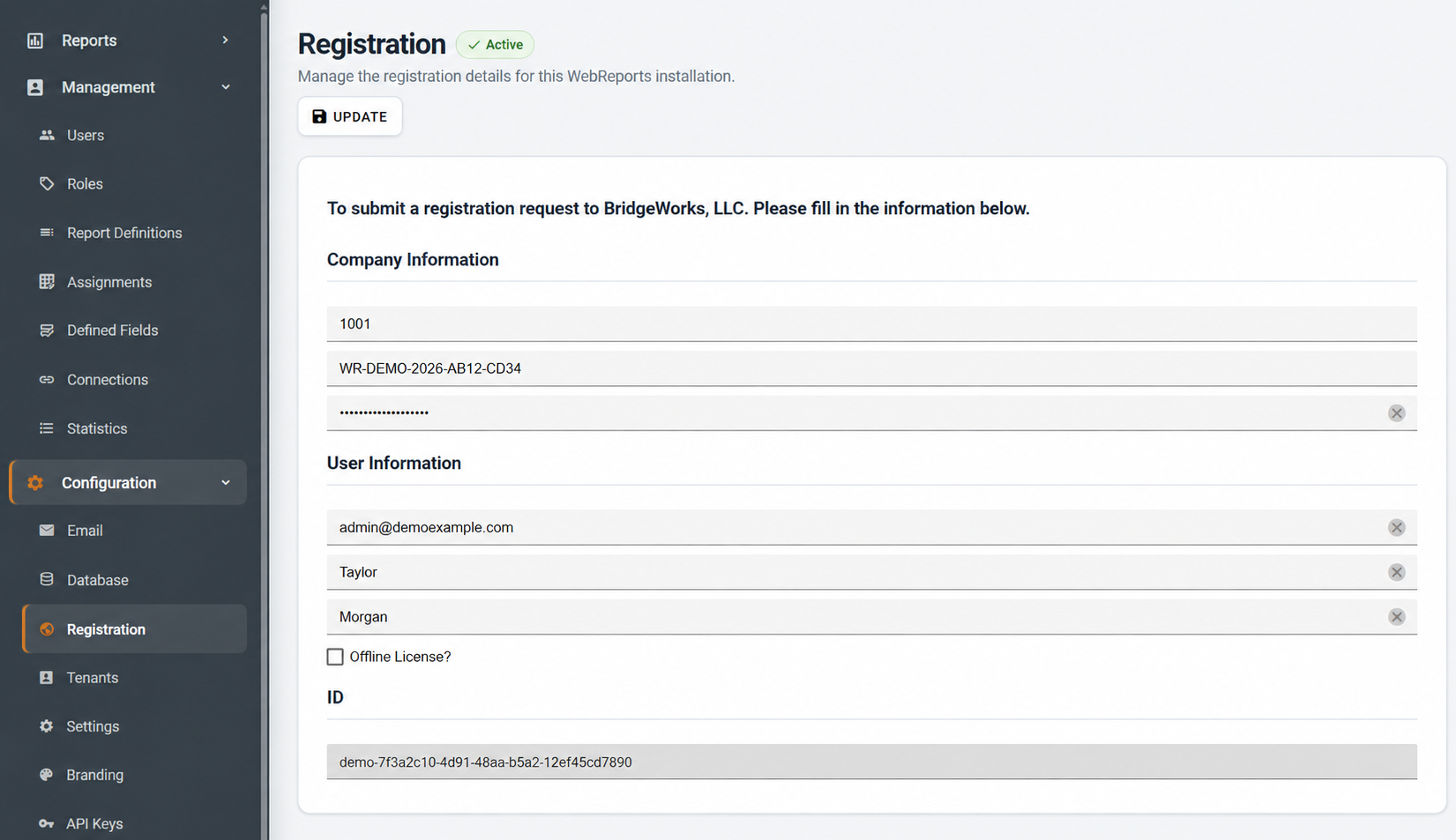

Registration
Review the installation’s registration status and maintain its company licensing information and registration contact. Submit changes with Update, then check the returned status. See WebReports Registration.

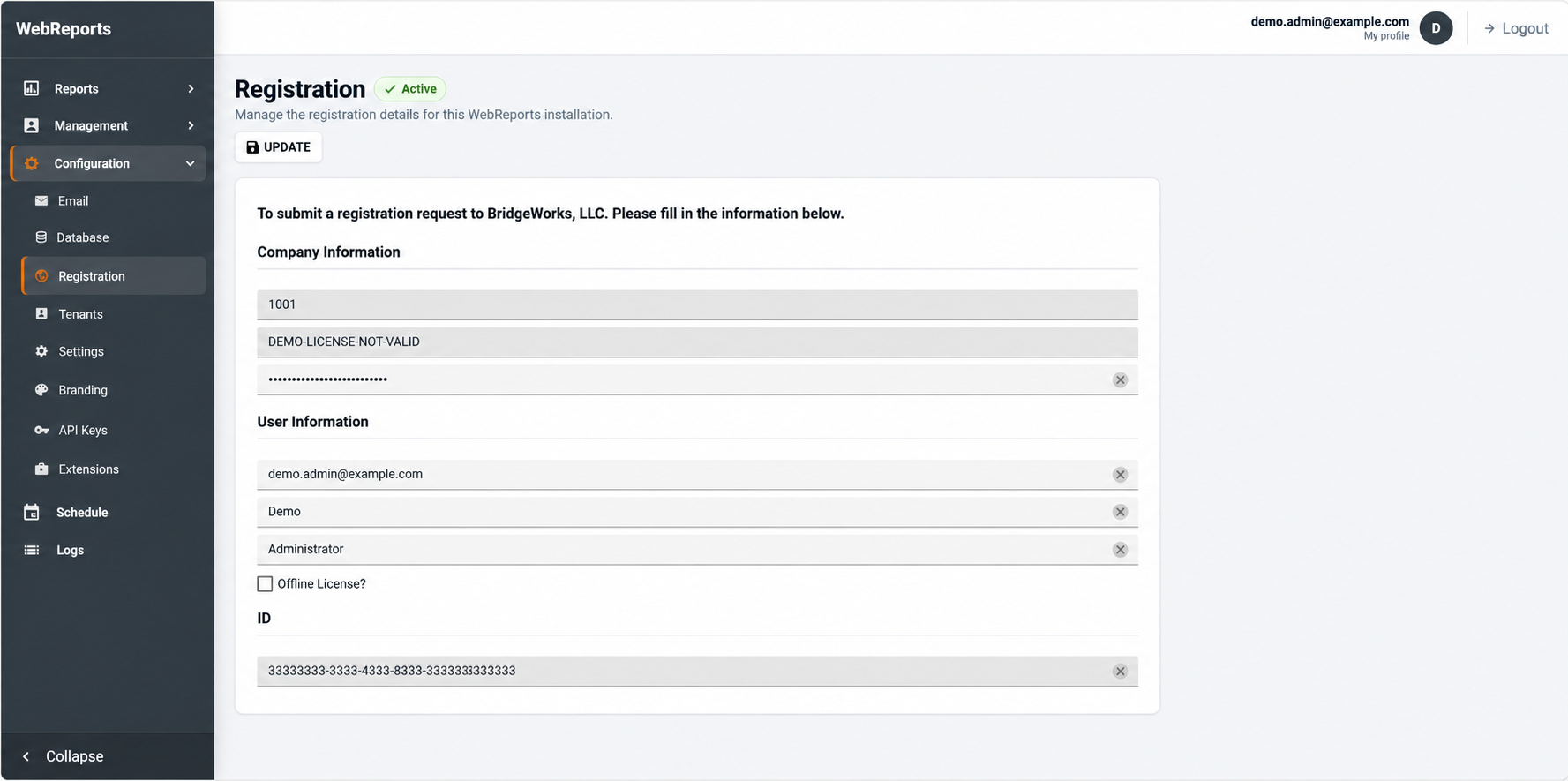

Registration with fictional company, contact, license, and installation values.

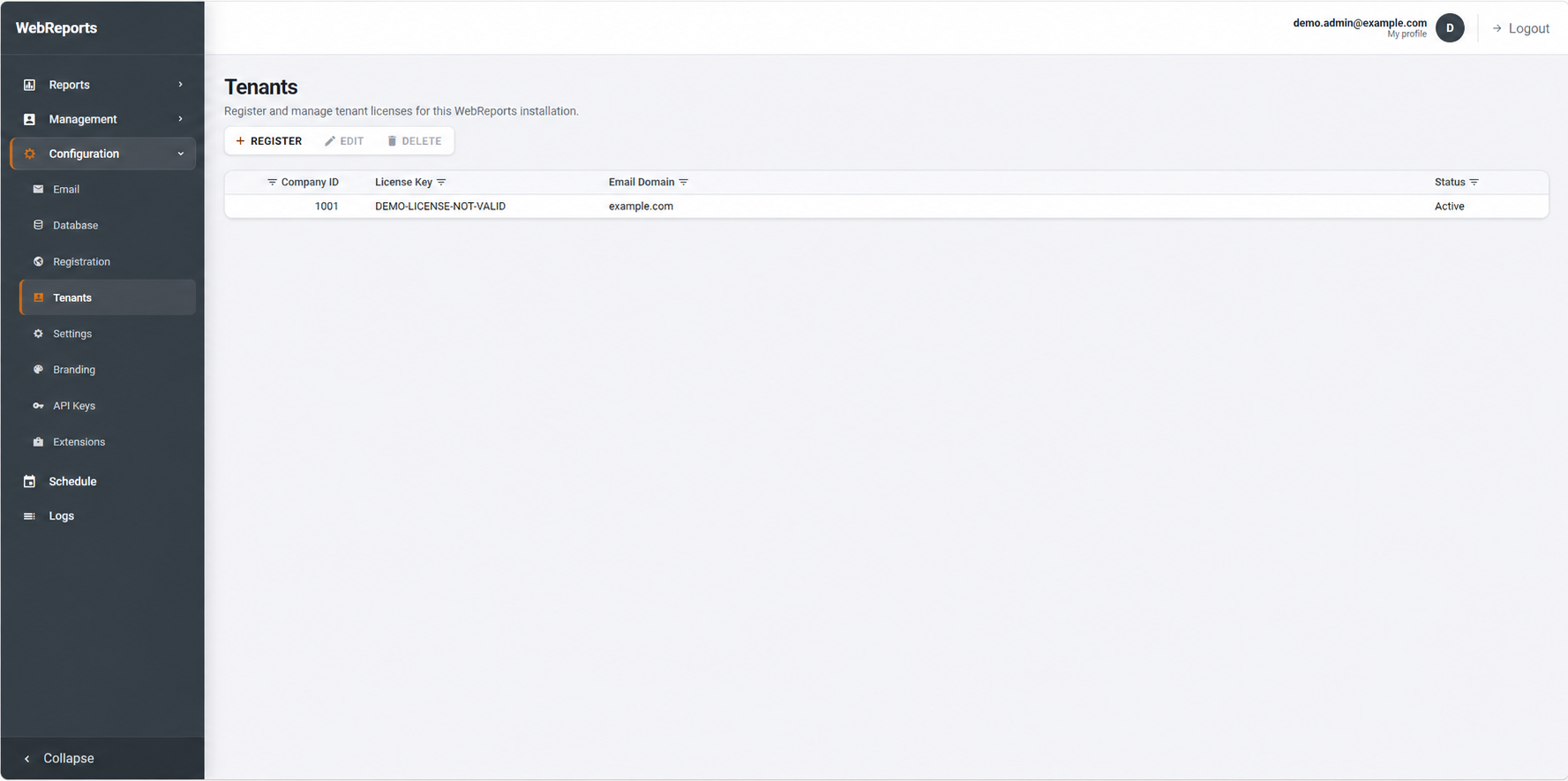

Tenants
Register and maintain tenant licenses and their associated email domains in a licensed multitenant deployment. Select a tenant row before editing or deleting it. See Managing Tenants in WebReports.

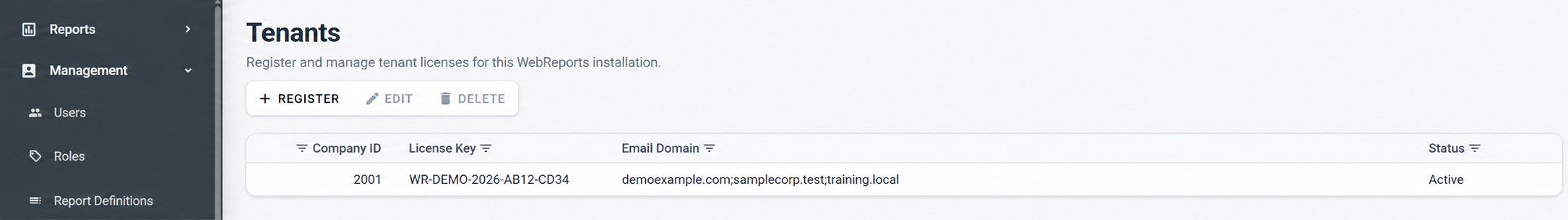

Tenants showing a fictional active license associated with example.com.

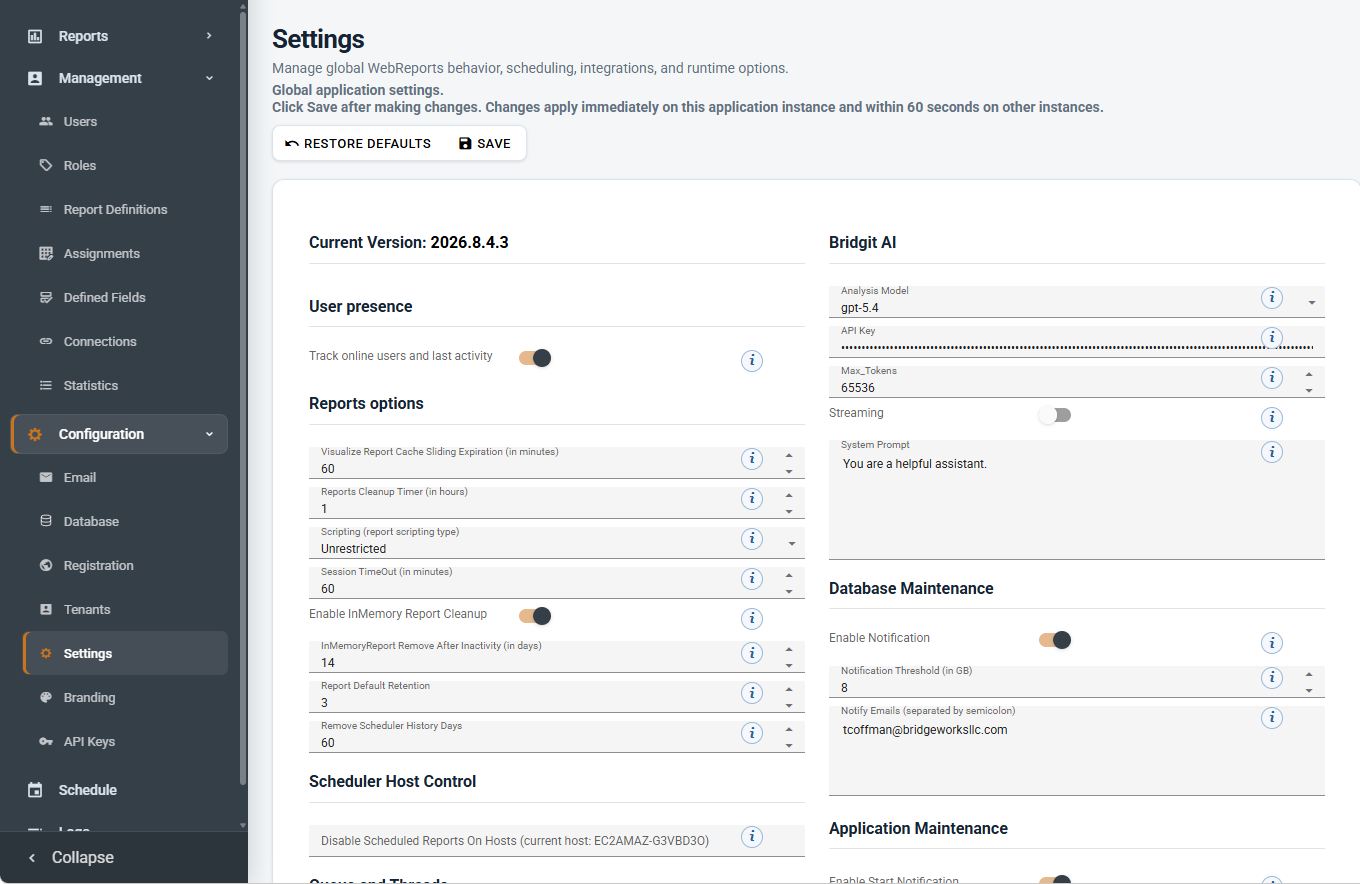

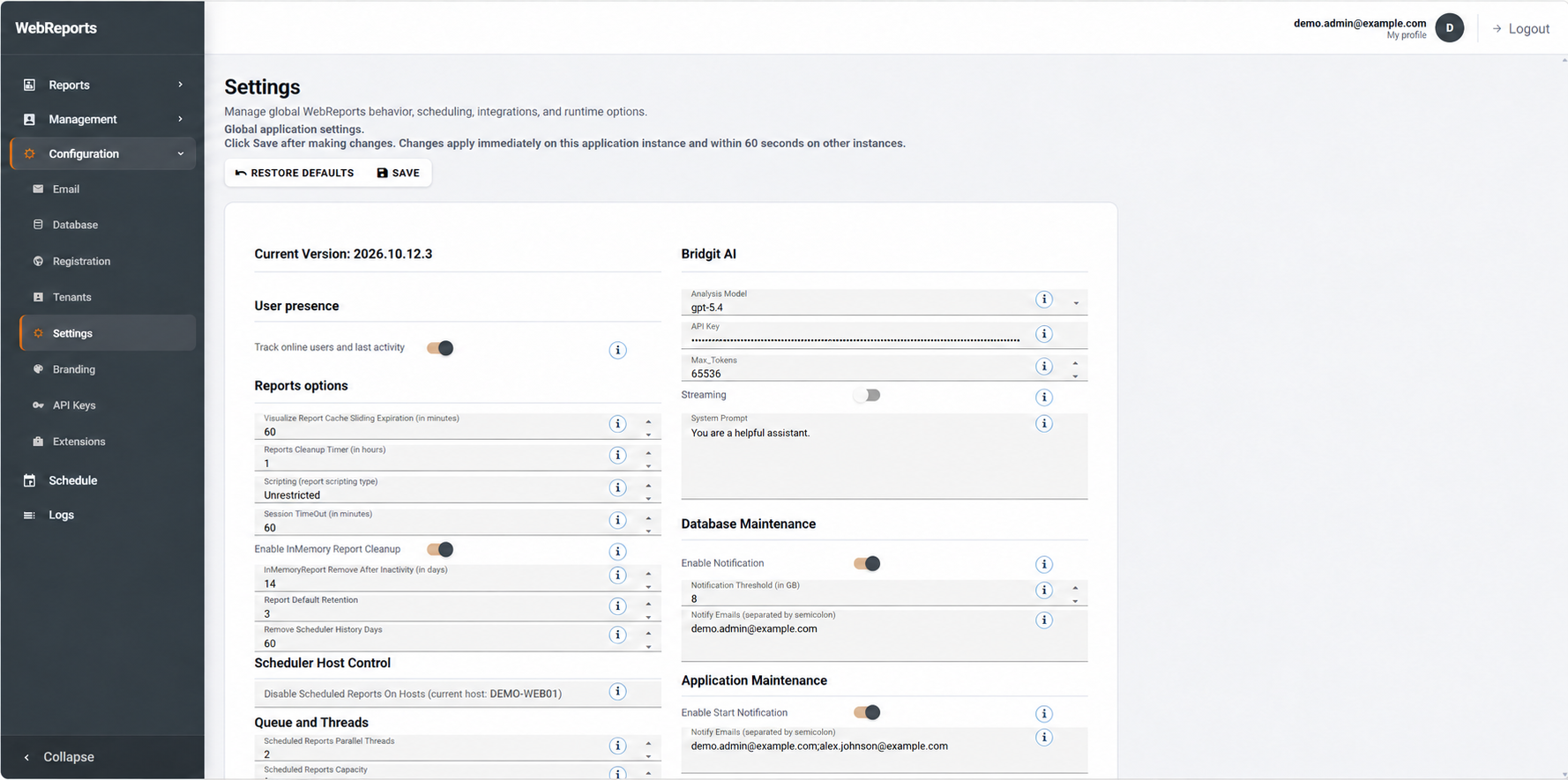

Settings
Change global behavior such as processing, retention, notifications, statistics, and integrations. Use each information icon for field help and select Save after making changes. See Configuring Application Settings in WebReports.
Settings for the demo installation; values illustrate an example configuration.

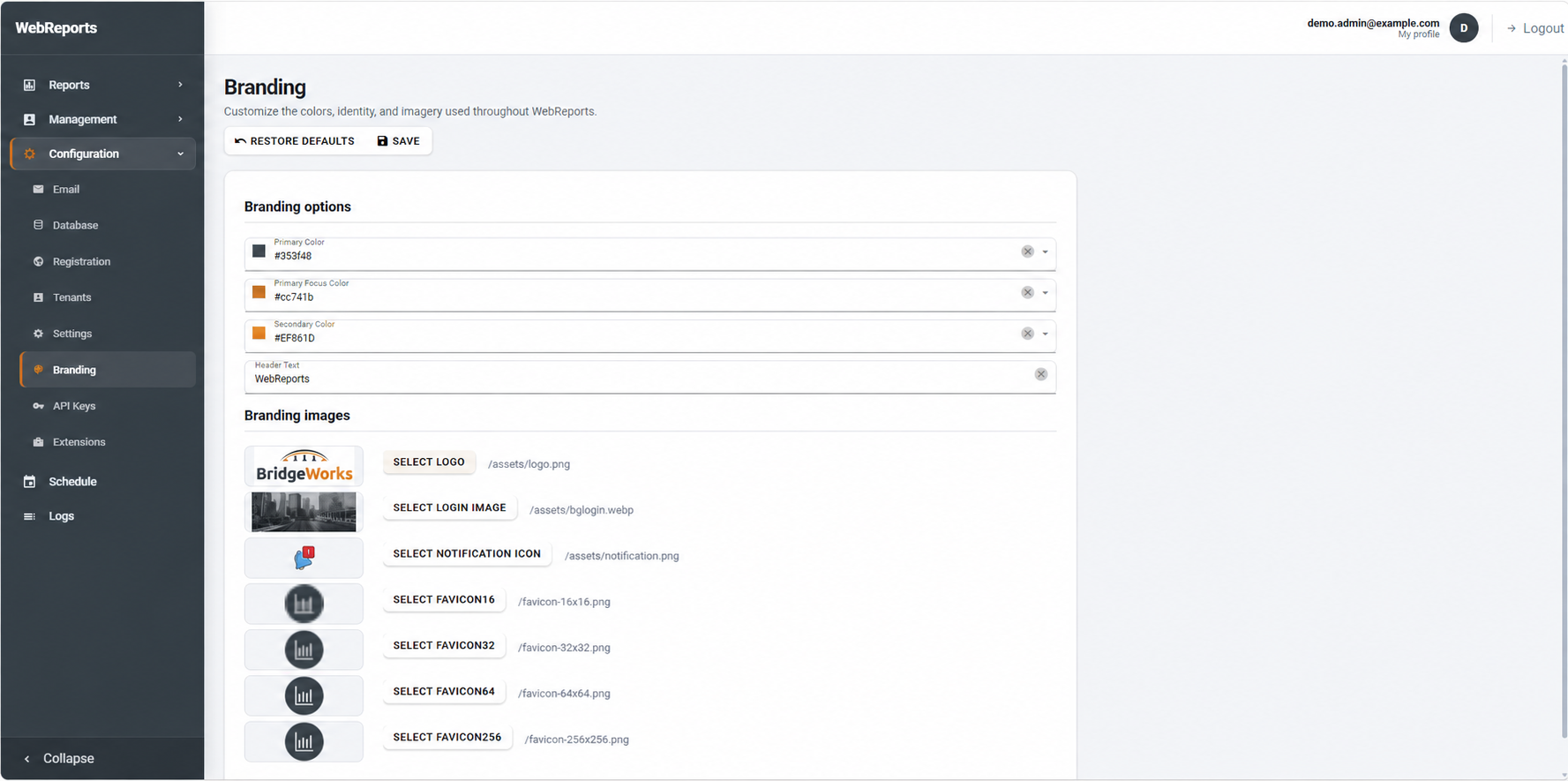

Branding
Apply the organization’s visual identity using colors, header text, images, and favicons. Review the previews and select Save to apply the selections. See Customize Branding in WebReports.

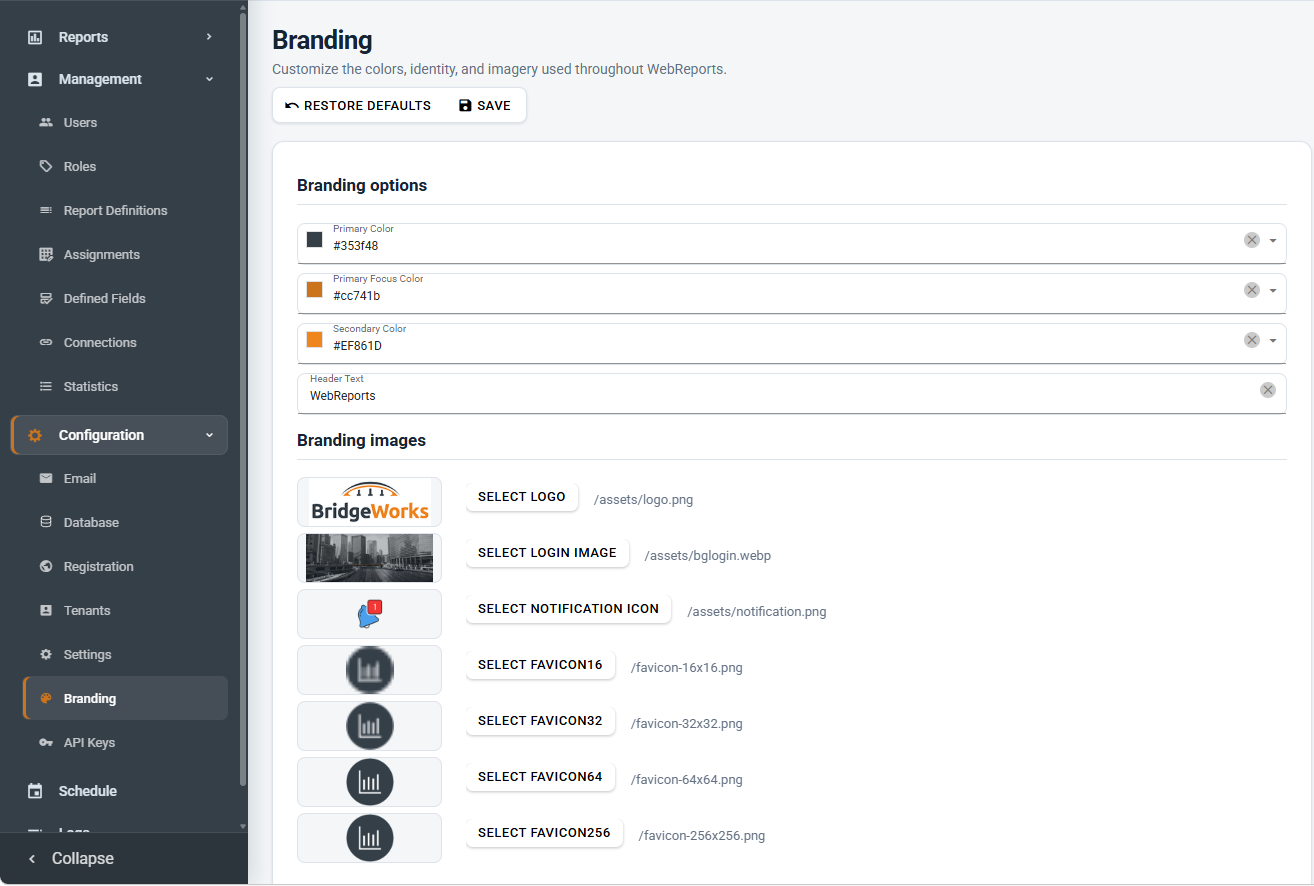

Branding controls for application colors, header text, images, and favicons.

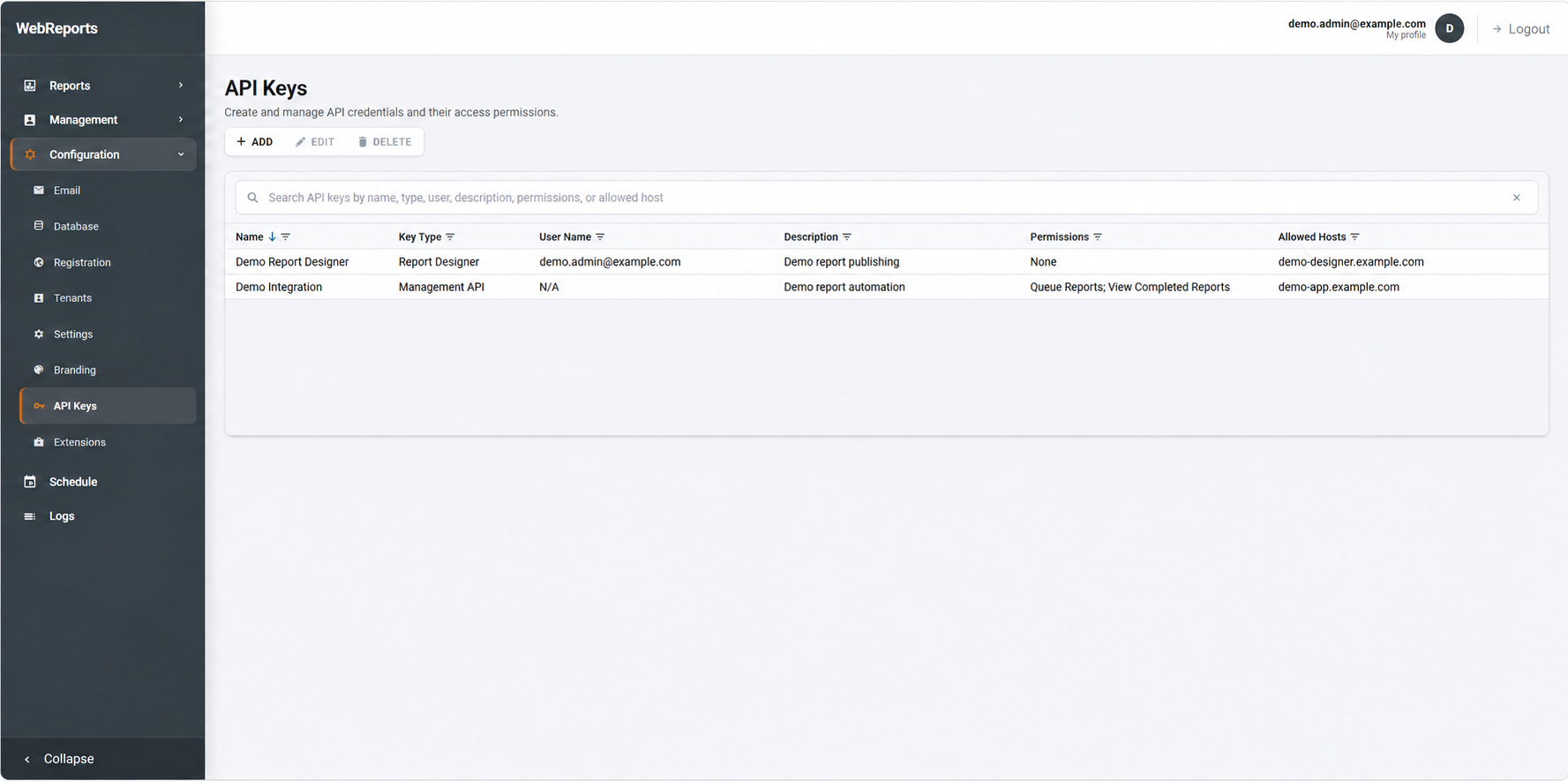

API Keys
Authorize Report Designer or a Management API client with a purpose-specific key. Select the required user or permissions, restrict allowed hosts, and securely store the generated secret. See Managing API Keys in WebReports.

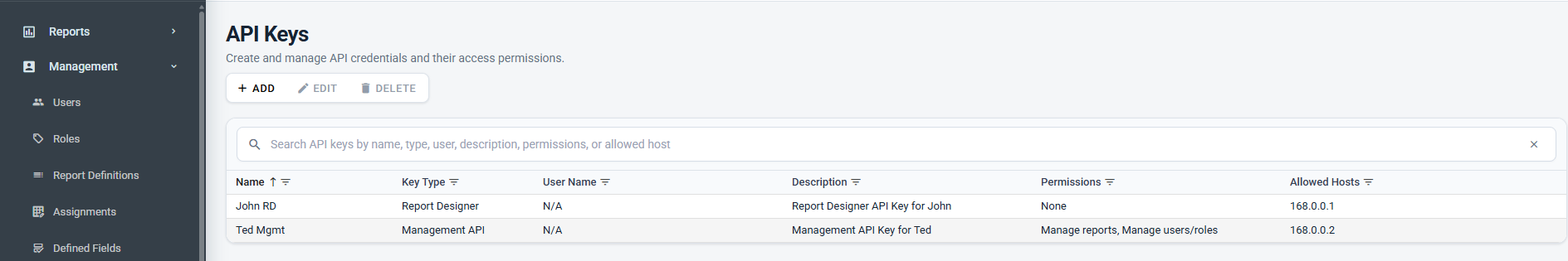

API Keys showing fictional Report Designer and Management API integrations.

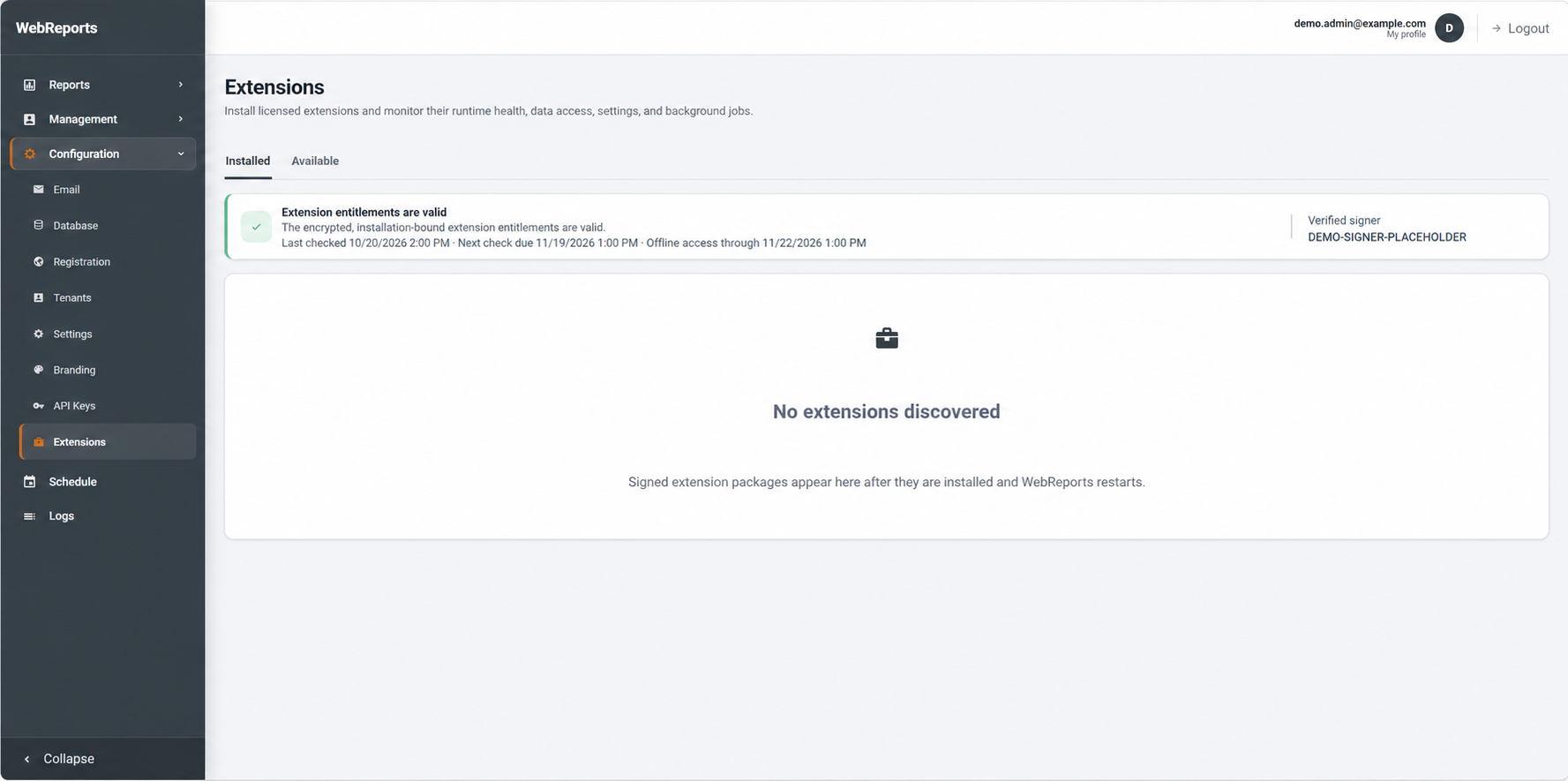

Extensions
Review discovered packages on Installed and licensed packages on Available. Confirm compatibility and follow the extension-specific instructions before installation. See Extensions Overview.

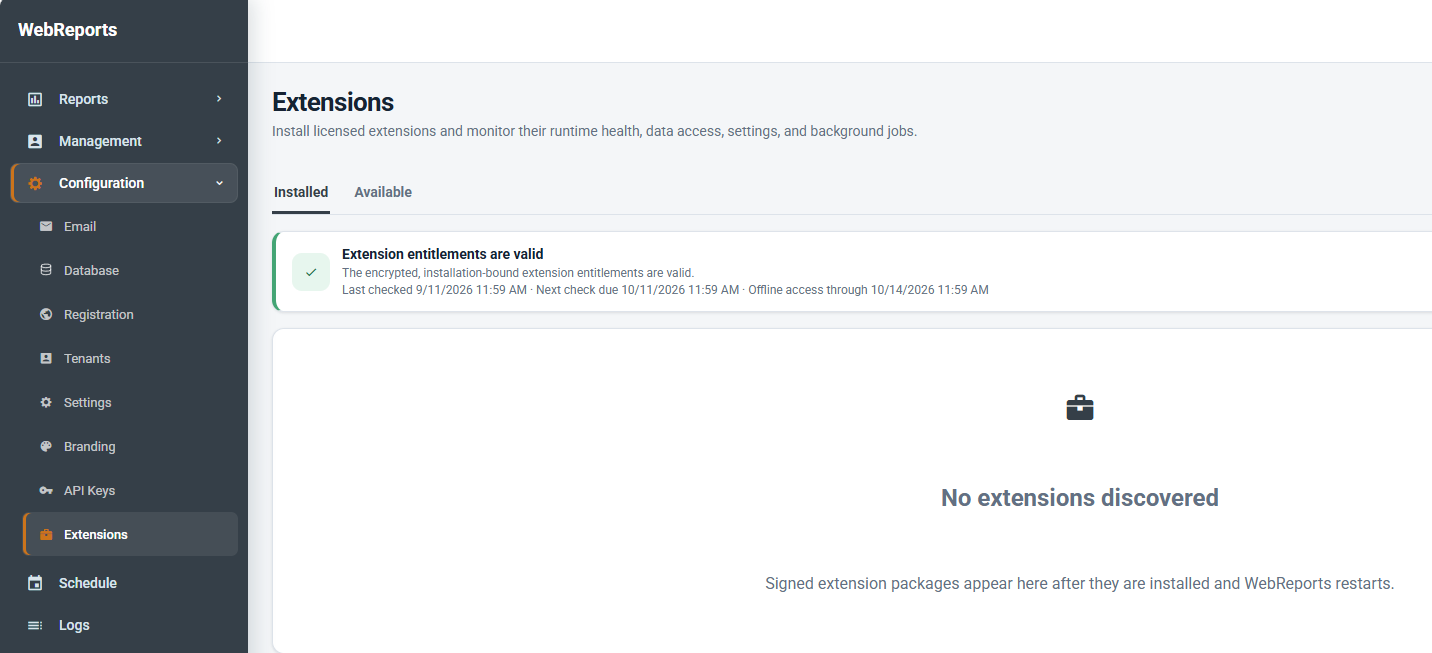

Installed extensions and entitlement information in the demonstration environment.
Apply and verify changes
- Open the relevant page and review its current values. Record environment-specific values before changing them.
- Use the page’s Update or Save action as described in its guide. Opening a page or editing a field does not by itself verify the configuration.
- Verify the affected feature: send a test email, inspect a report’s expiration, check registration status, or test the authorized integration.
Do not use Restore Defaults, Shrink Database, import, or deletion actions to test navigation. These actions change configuration or application data.
