Newly Added Fields Are Missing from the Data Grid

Trouble Viewing Images? Right-click on any image and select "Open in new tab" to view a larger version. You can also zoom in using Ctrl + Mouse Wheel for easier readability.

Problem

I just added new fields to my view. However, when I run the view, the new fields are not being populated into the data grid.

Reason

This may occur if the view was saved prior to running the view. For example: A view was modified by adding more fields but saved and closed instead of running the view first. When you add new fields to any view, you must run the view, confirm the new fields are added to the data grid, and then save the view.

Example

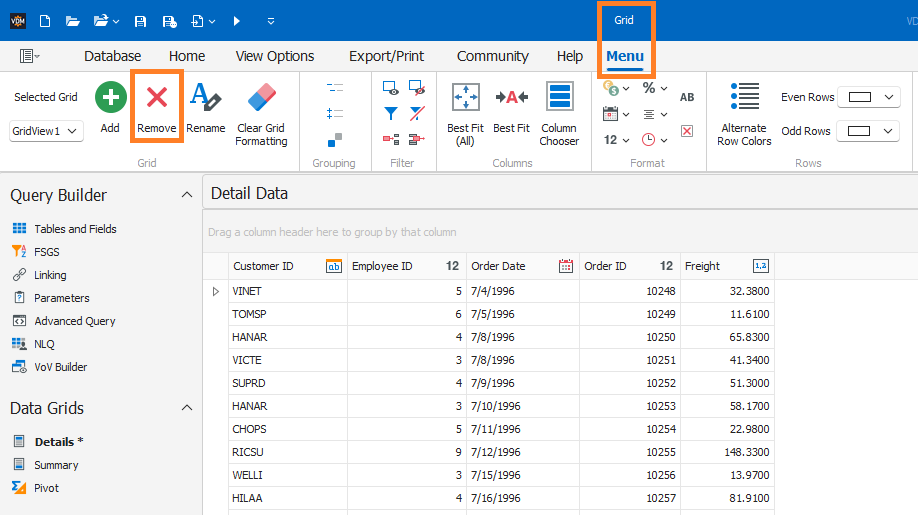

From the example below, you will see that there are 5 fields selected. However, the data grid is only populating 4 fields as its missing the Orders.Freight field.

This view was saved prior to running the view.

Solution

1. Open VDM.
2. Open the View that is having the challenge.
3. Run the View.
4. Click on Details to show the Data Grid.
5. Under the Menu option, Press Remove.
6. Now save the view.

*Selecting the Remove button under the Menu option will populate the grid with the missing fields.
