Using @WRExportType to Set Export Formats in VDM and WebReports

Trouble Viewing Images? Right-click on any image and select "Open in new tab" to view a larger version. You can also zoom in using Ctrl + Mouse Wheel for easier readability.

This article explains how to use the @WRExportType reserved word to control the export format of a report when using VDM / WebReports.

What is @WRExportType?

@WRExportType is a special keyword (called a reserved word) that helps automatically set the export format (like PDF, HTML, Excel, etc.) for a report based on how it's run—whether in VDM or through WebReports via API calls.

How @WRExportType Works: Using @WRExport as the Default Value

1. Running the Report in VDM

• The @WRExportType value will be empty/null.

• VDM will automatically use the first option in your list of export types (e.g., “HTML”).

2. Running the Report in WebReports Without Export Settings Set

• If the API URL does not include an ExportType or SaveFile setting:

  • @WRExportType will be empty.

  • WebReports will default to the first option in your export type list (e.g., “HTML”).

3. Running the Report in WebReports With Export Settings

• If the API URL includes SaveFile and an ExportType (like PDF, XLSX, etc.):

  • That value will be passed to @WRExportType.

  • The report will export in that specified format.

Understanding API URL Calls

If you're unfamiliar with API URL calls used in WebReports, here’s a quick overview:

An API URL is a specially formatted web address that sends information to WebReports to run a report automatically. It includes details like:

• The report name

• Connection name

• Parameters (like date filters or export format)

• Whether to use saved data

• Whether to export the file, and what format to export in

Example API URL with SaveFile / ExportType:

https://webreports.bridgeworksllc.com/api/FinishedReport?report=WRExportType.vdm&
Connection=ABCLocal%20Web%20Reports&Type=Finished%20Report&UseSavedData=True&&SaveFile=True&ExportType=PDF

🔍 What to notice:

• ExportType=PDF tells WebReports to export the result as a PDF file

• This value (PDF) is passed to the @WRExportType parameter behind the scenes

• If the API URL does not include an ExportType or SaveFile setting: @WRExportType will be empty and default to the first value in the parameters value collection list.

Video Tutorial:

Not Yet Available

How to Set Up the WRExportType Parameter in VDM.

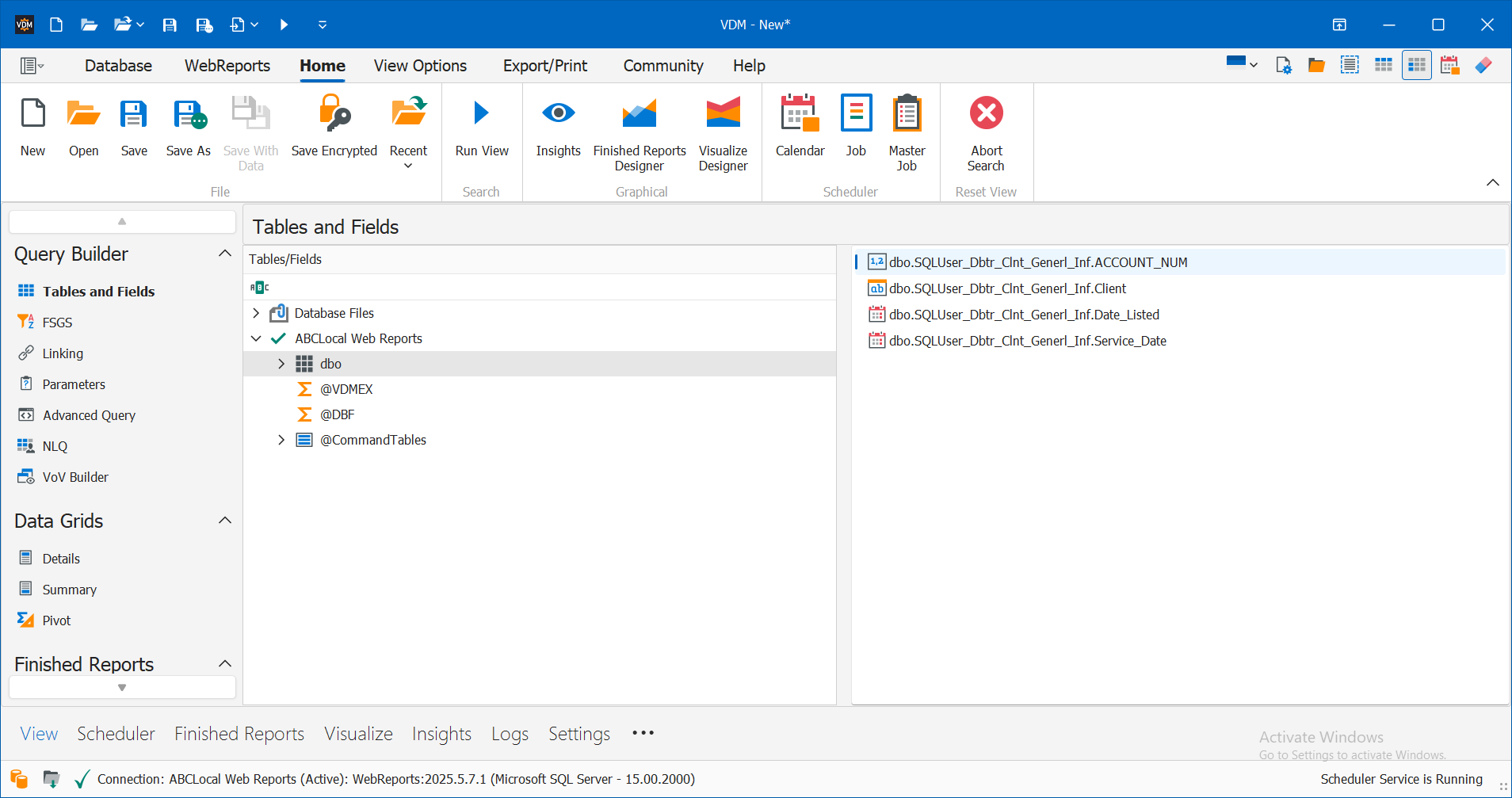

1. Open Your View in VDM:  Launch VDM.

Either:

• • Open an existing view you want to modify

  • Create a new view

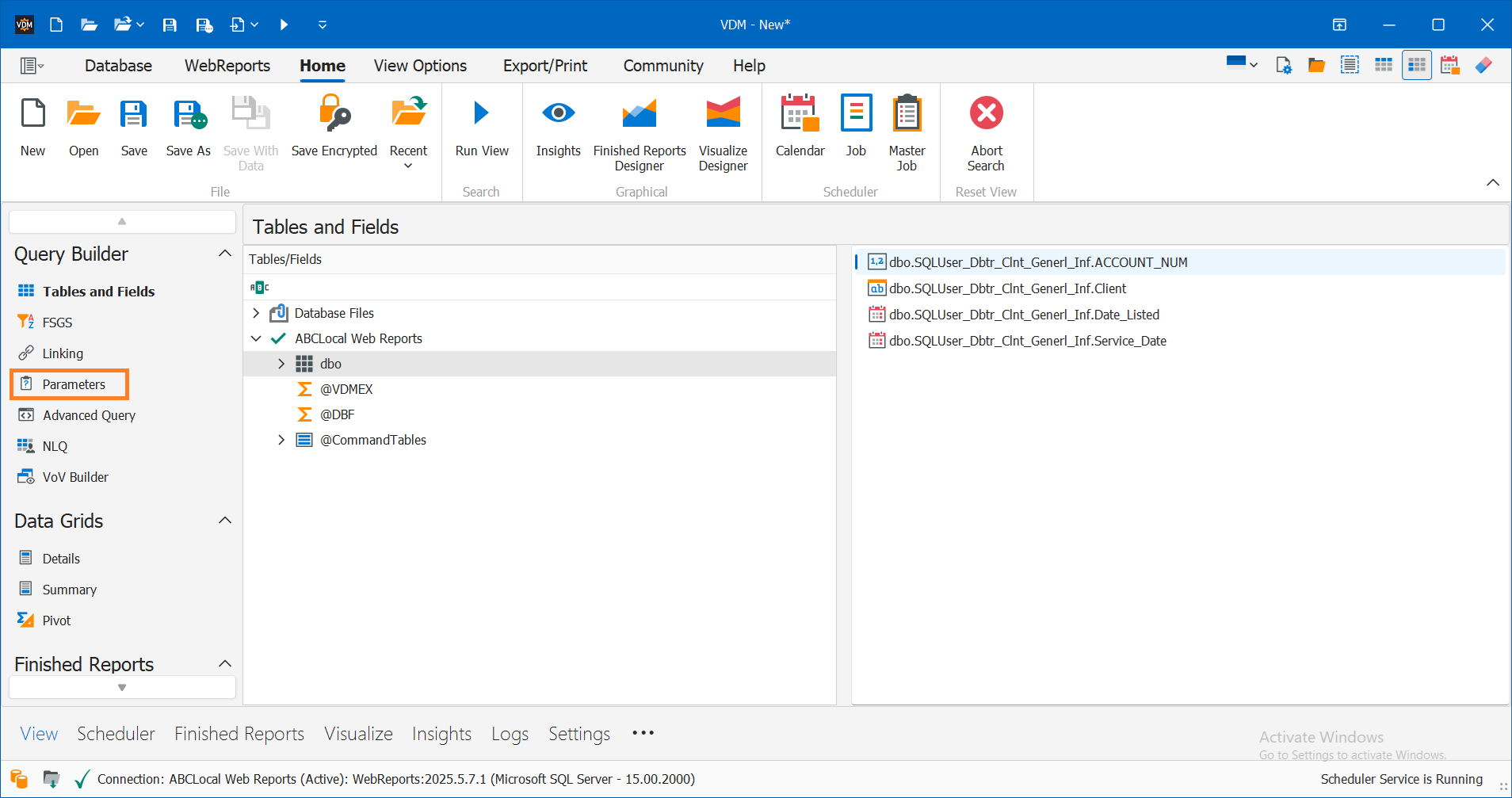

2. Access the Parameters Setup: Click the “Parameters” button on the toolbar or from the menu.

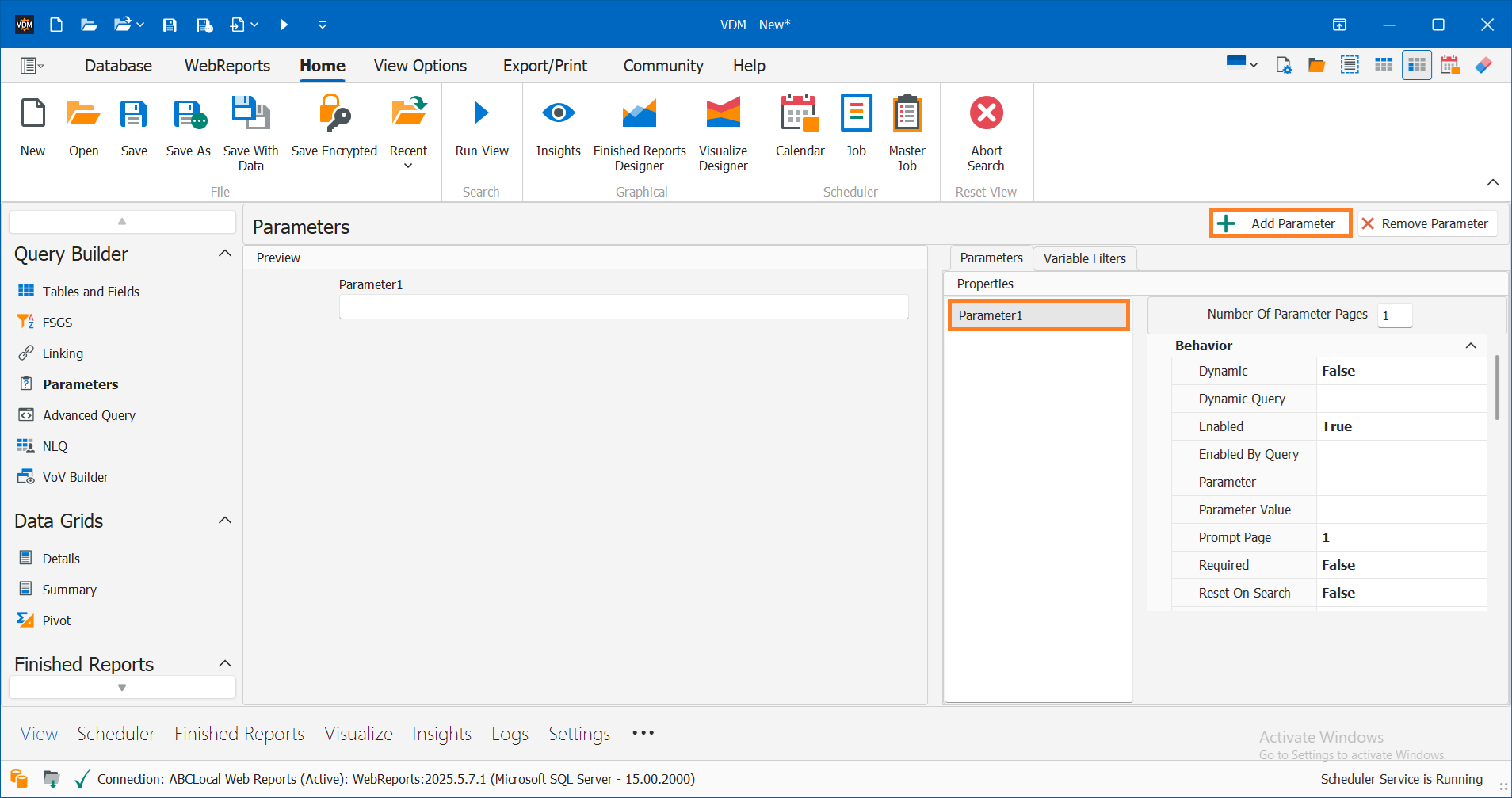

3. Add a New Parameter: Click “Add Parameter.”

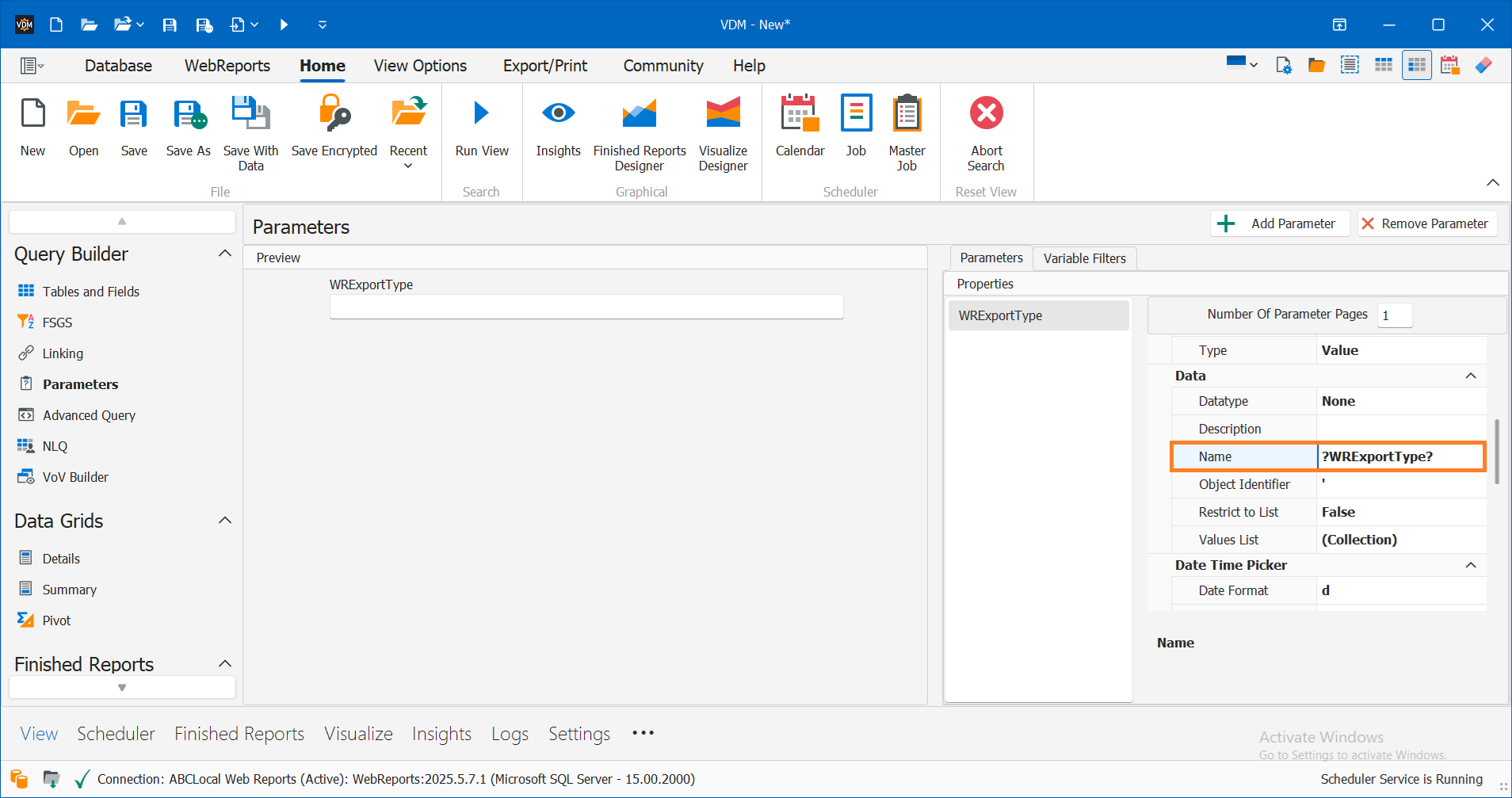

4. Name the Parameter: Set the parameter Name to WRExportType.

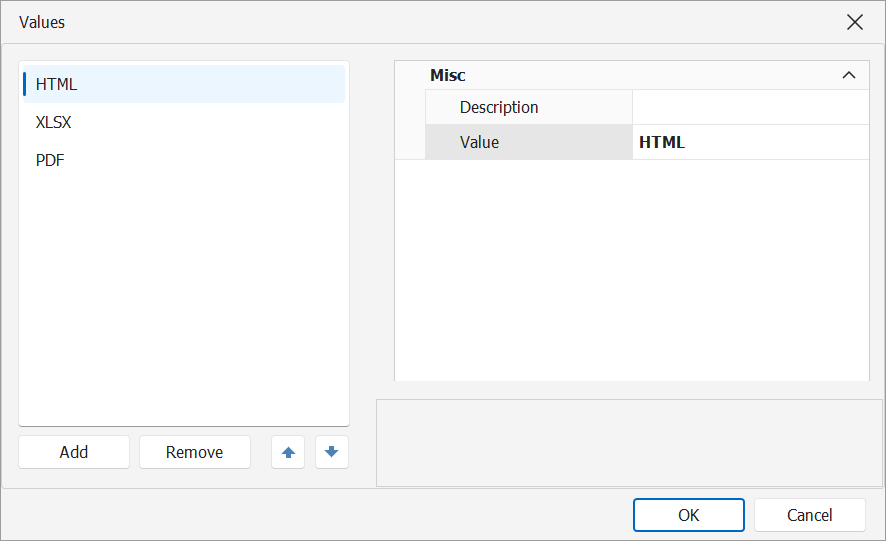

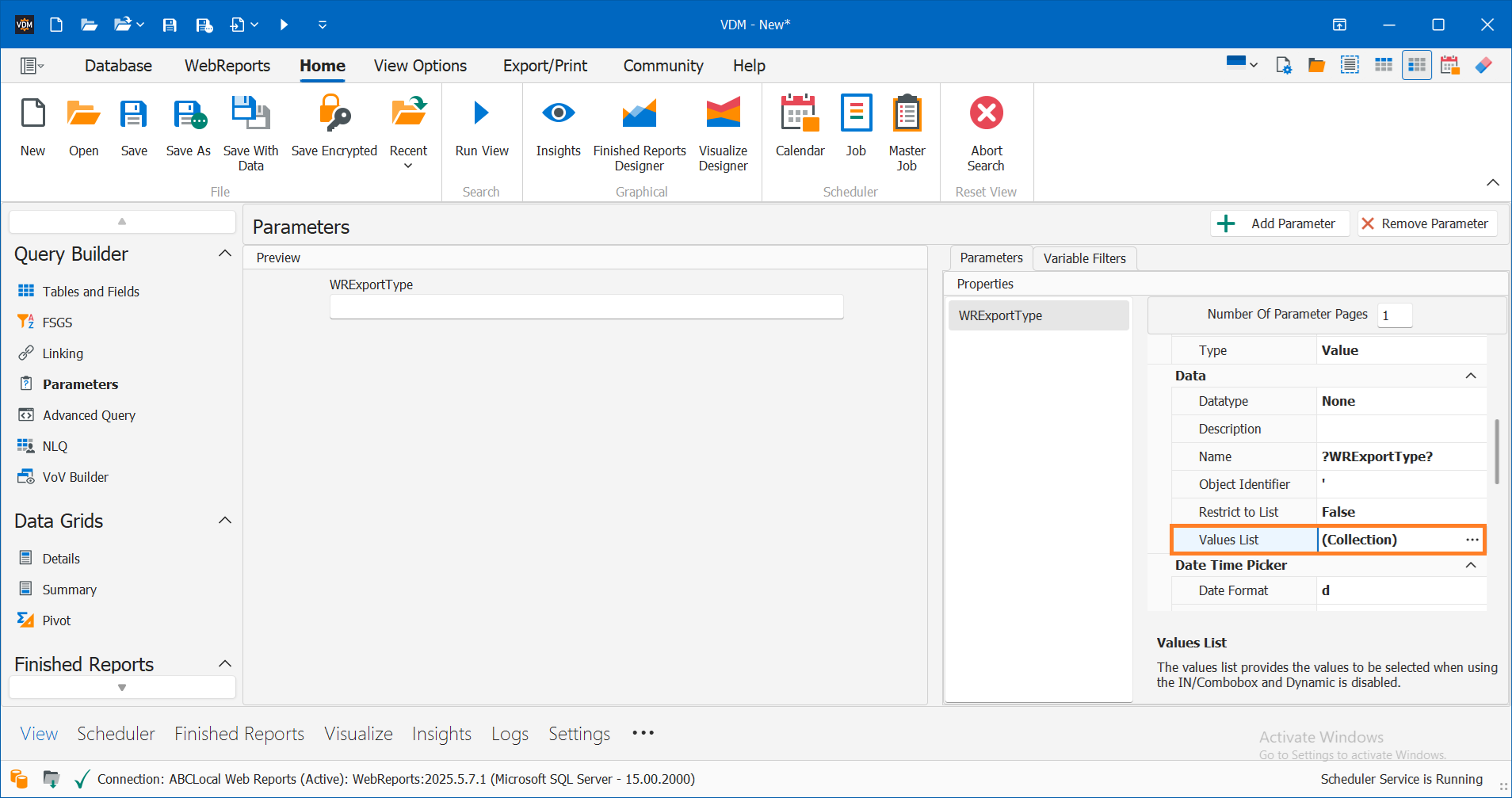

5. Add Export Format Options: In the Value / Collection List, enter the export formats (e.g., HTML, PDF, XLSX, RTF), one per line.

🔔 Note: The first value in the list is used as the default. Use the up/down arrows to change the order if needed.

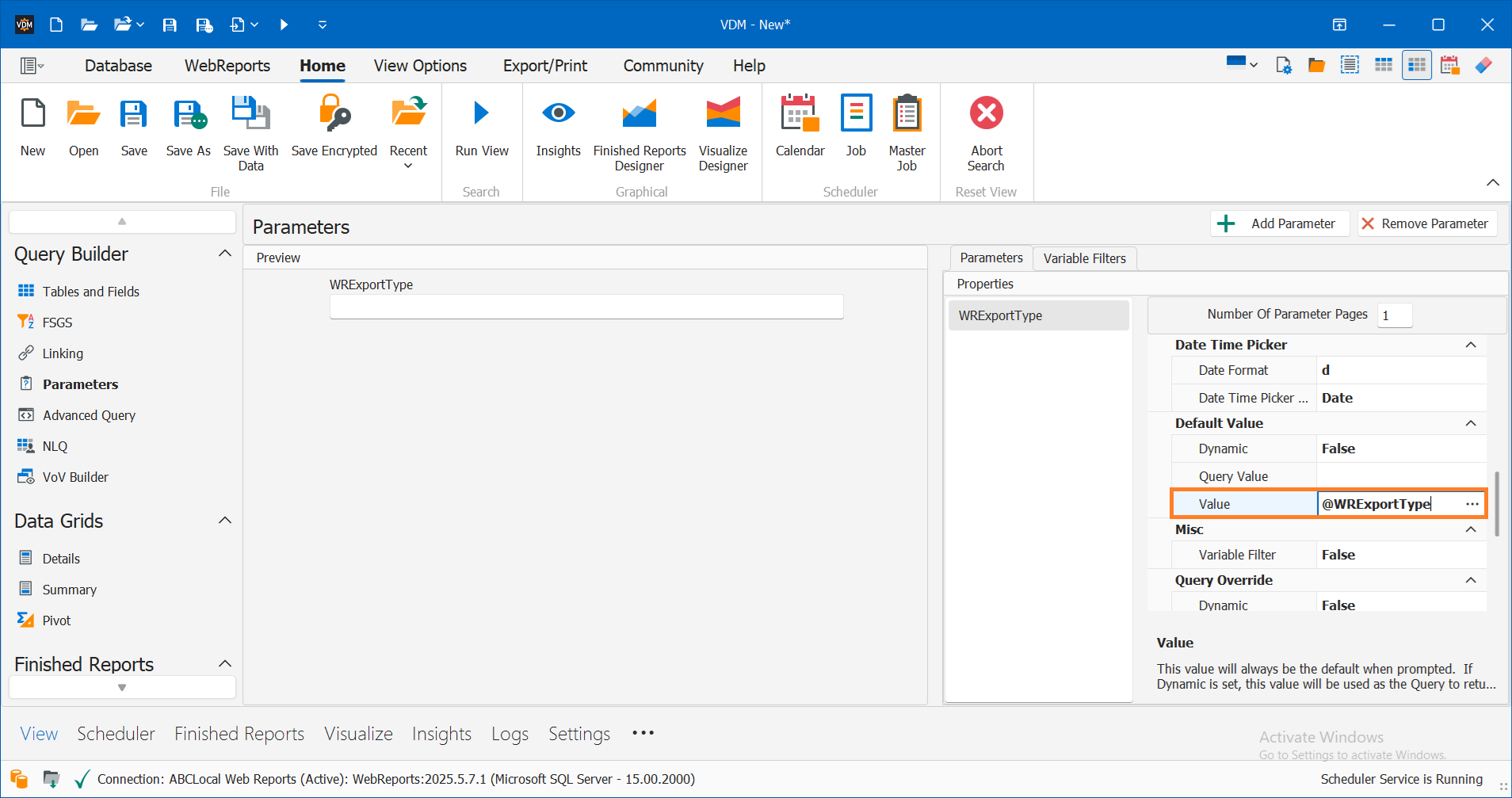

6. Assign the Reserved Word Default Value: Set the Value property in the Default Value section to@WRExportType

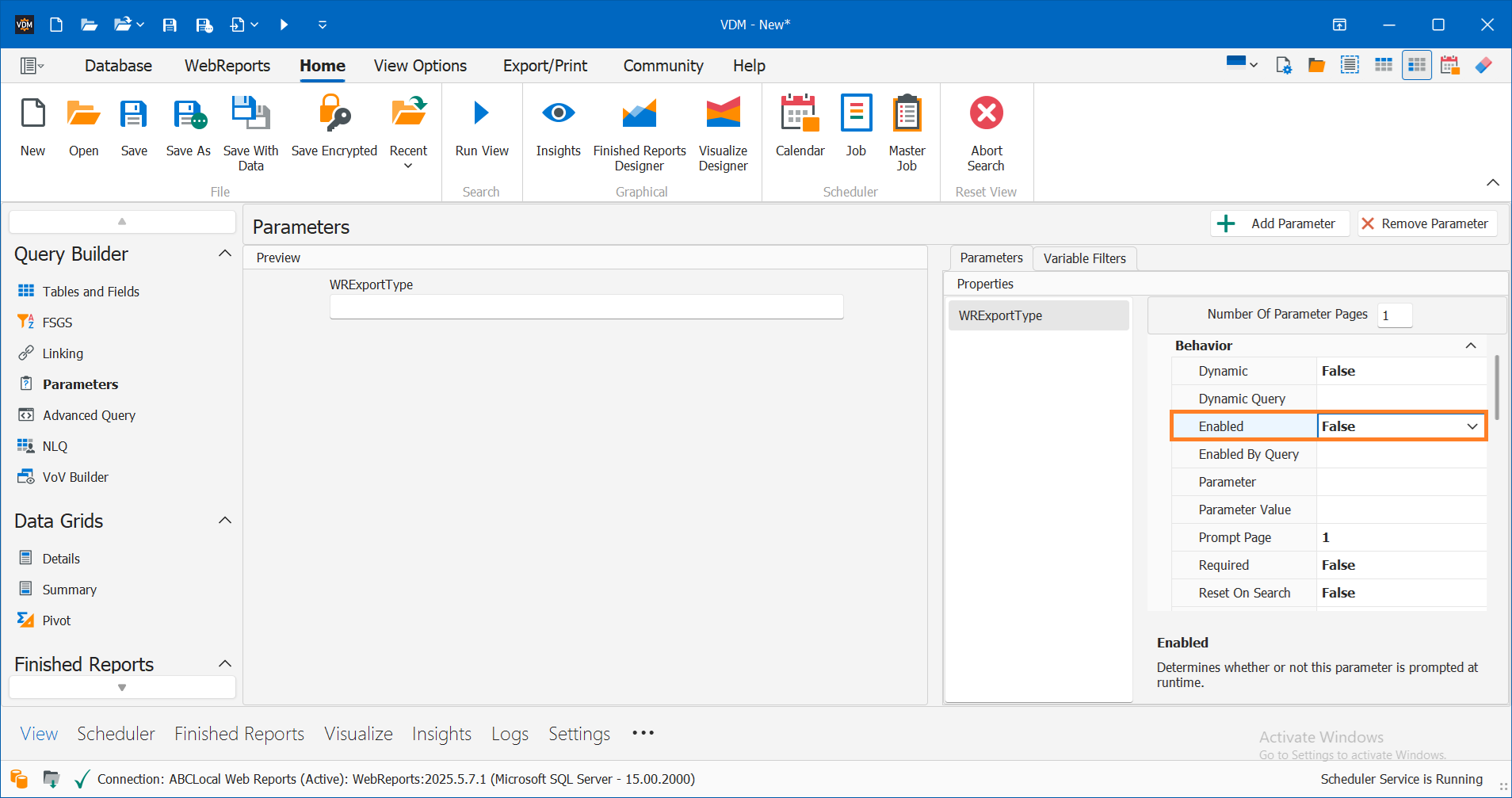

7: Disable User Input (Optional but Recommended)

• Set the Enabled property to False.

  • This hides the parameter in the user interface so users cannot manually enter or change its value.

  • It ensures the format is programmatically controlled based on VDM or API call behavior.

✅ Why this is useful: It prevents user confusion and guarantees consistent export formatting across different environments.

8: Save and Test the View: Once complete, save your view and test it by running the view in VDM and via WebReports using various export type scenarios:

• • No export type specified → should default to the first format.

  • API call with ExportType=XLSX → should export to Excel as expected.
