Monitoring WebReports Statistics

The Statistics page provides live information about manual and scheduled report activity on the WebReports instance.

Administrators can use Statistics to monitor workloads, completed and failed reports, process activity, memory use, and CPU use.

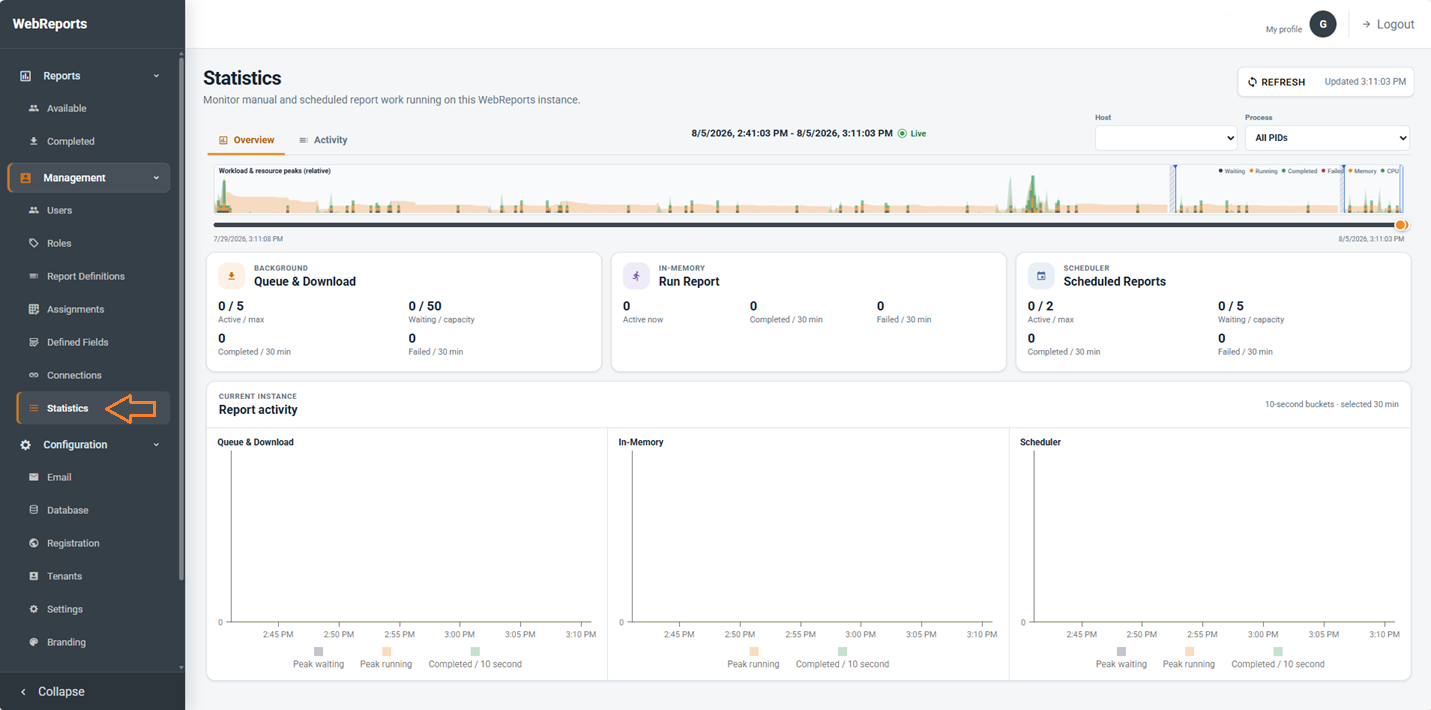

Open the Statistics page

Sign in to WebReports.
Select Management.
Select Statistics.

The Statistics page contains two tabs:

Overview
Activity

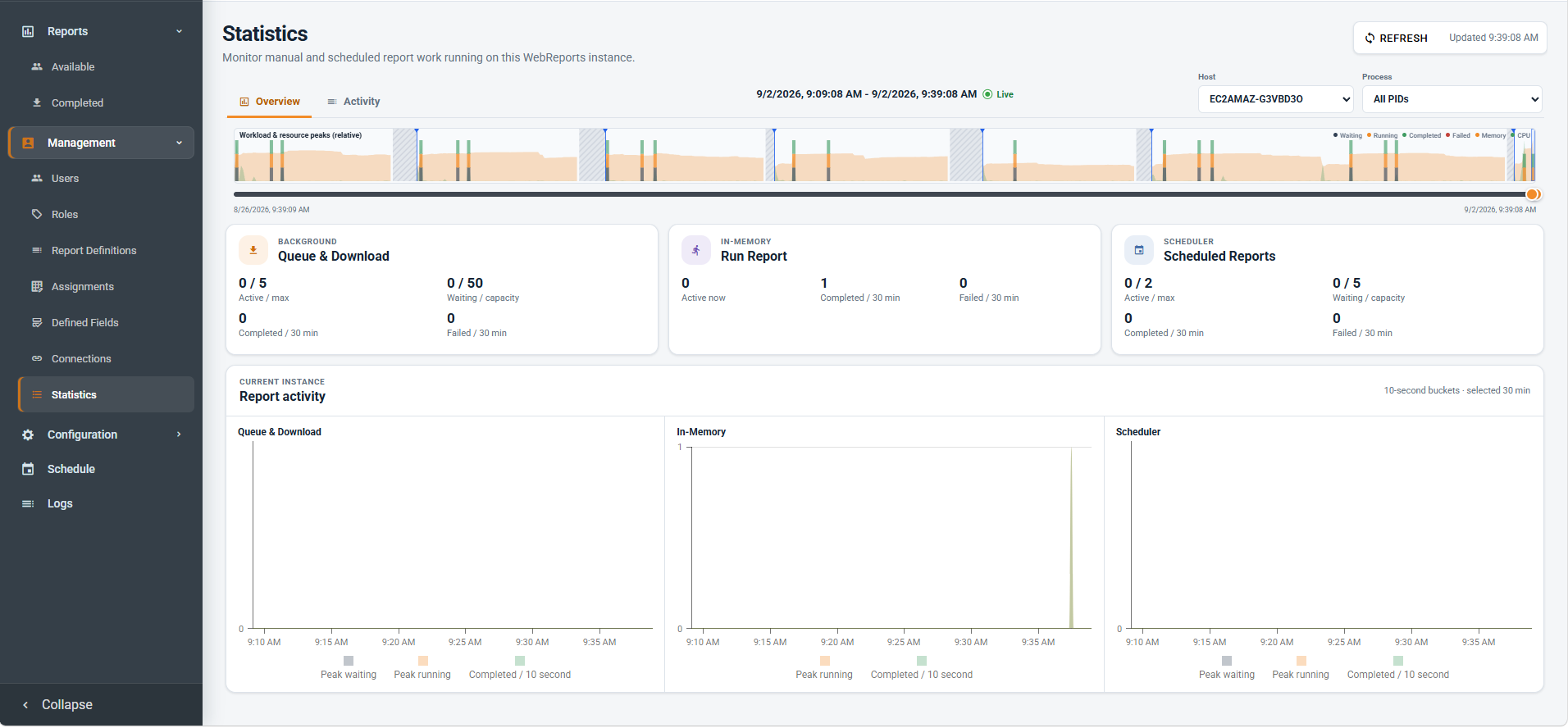

Statistics Overview

The Overview tab provides a summary of report workloads and resource use.

Filter the statistics

Use the controls at the top of the page to select:

Host — The WebReports host to monitor.
Process — A specific process or all process IDs.
Timeline — The period displayed in the statistics.
Refresh — Manually refreshes the displayed information.

The Live indicator shows that current activity is being monitored.

Workload and resource history

The timeline displays relative workload and resource peaks for:

Waiting reports
Running reports
Completed reports
Failed reports
Memory
CPU

Use the timeline control to adjust the period being reviewed.

Queue & Download

The Queue & Download card displays:

Active and maximum report counts
Waiting reports and queue capacity
Reports completed during the last 30 minutes
Reports that failed during the last 30 minutes

In-Memory reports

The In-Memory card displays:

Reports currently active
Reports completed during the last 30 minutes
Reports that failed during the last 30 minutes

Scheduled Reports

The Scheduled Reports card displays:

Active and maximum scheduled reports
Waiting reports and scheduler capacity
Reports completed during the last 30 minutes
Reports that failed during the last 30 minutes

Report activity charts

The lower portion of the Overview tab displays activity charts for:

Queue & Download
In-Memory
Scheduler

These charts show waiting, running, and completed activity during the selected period.

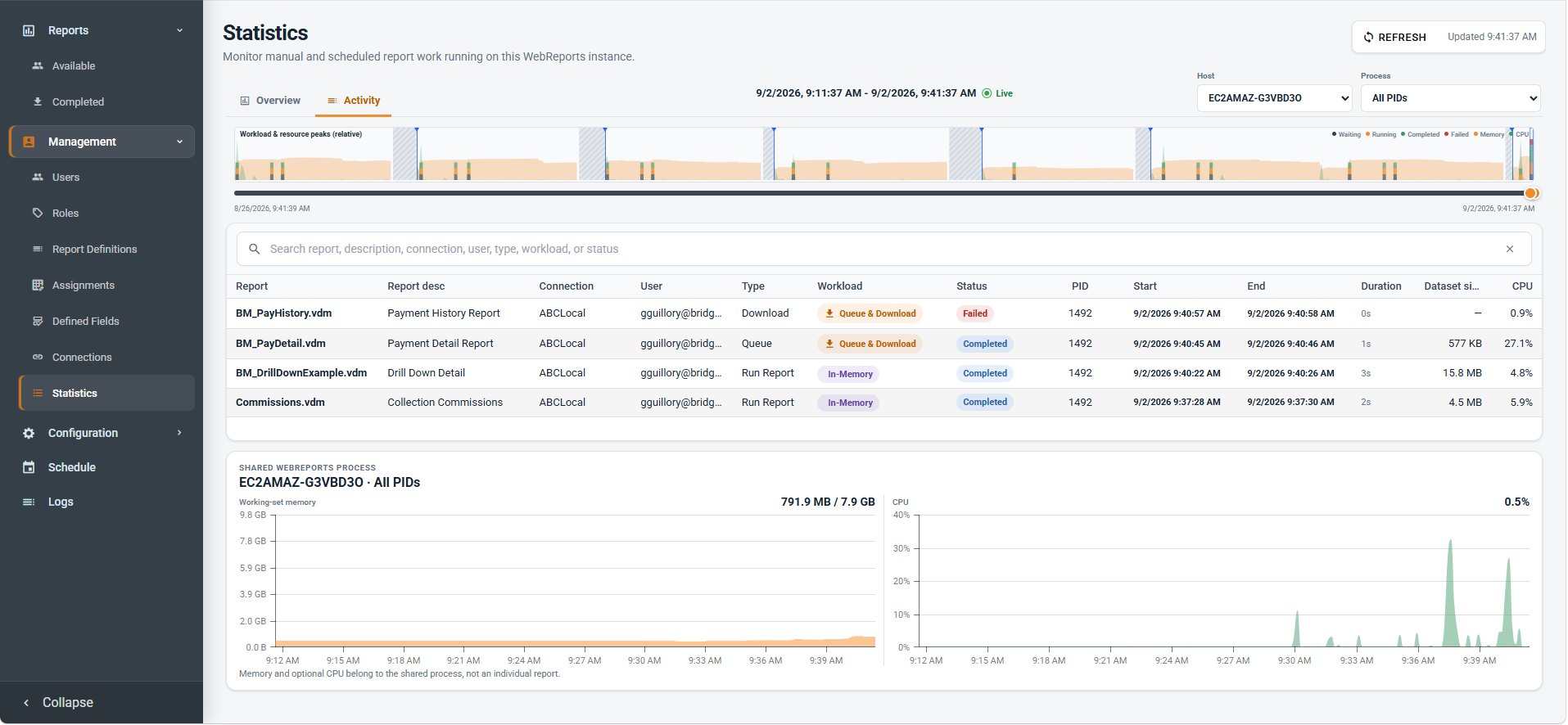

Statistics Activity

Select Activity to review individual report activity and process performance.

[Insert sanitized Statistics Activity screenshot]

Use the search box to find activity by:

Report
Description
Connection
User
Report type
Workload
Status

The activity table can display:

Report name and description
Connection
User
Report type
Workload
Status
Process ID
Start and end times
Duration
Dataset size
CPU use

Process performance

The bottom of the Activity tab displays memory and CPU history for the selected WebReports host and process.

Memory and CPU measurements apply to the shared WebReports process and may not represent the resource use of an individual report.

Protect sensitive information

Statistics can display usernames, report names, hostnames, process IDs, connection names, and system-performance information.

Do not publish screenshots containing production usernames, email addresses, hostnames, or other sensitive environment information. Use sanitized screenshots or a test environment for documentation.
