Setting Up a Multiple Master Filter in Visualize

Trouble Viewing Images? Right-click on any image and select "Open in new tab" to view a larger version. You can also zoom in using Ctrl + Mouse Wheel for easier readability.

Article Goal

Learn how to set up the Multiple Master Filter in Visualize to allow filtering across dashboard elements based on multiple selected values.

What Is Multiple Master Filter?

The Multiple Master Filter feature lets users select more than one value within a visual element (such as a Pie Chart) to filter the data in other elements (like a Grid or Pivot). This adds flexibility when exploring datasets with multiple groupings.

Use Case: For example, selecting multiple employees in a Pie Chart will filter the Grid to show all corresponding records across those employees—ideal for comparing grouped performance or outcomes.

Why Use Multiple Master Filter?

• Enables multi-selection filtering across dashboard elements

• Facilitates side-by-side comparisons of multiple data groups

• Increases interactivity in dashboards with complex datasets

Note: To select multiple values, use Ctrl + Click on the segments (e.g., chart pieces or rows). If only single-value selection is needed, consider using the Single Master Filter instead.

Where Is It Used?

Multiple Master Filter is enabled in the Visualize Designer inside VDM and is available for visual elements such as Charts, Grids, Cards, and Pivots.

Steps to Set Up Multiple Master Filter

Step 1: Open Visualize Designer

Launch VDM, open or create a View, then click on Visualize Designer.

Step 2: Add Visualization Elements

Insert two or more elements (e.g., Pie Chart, Grid) into the dashboard to visualize your data.

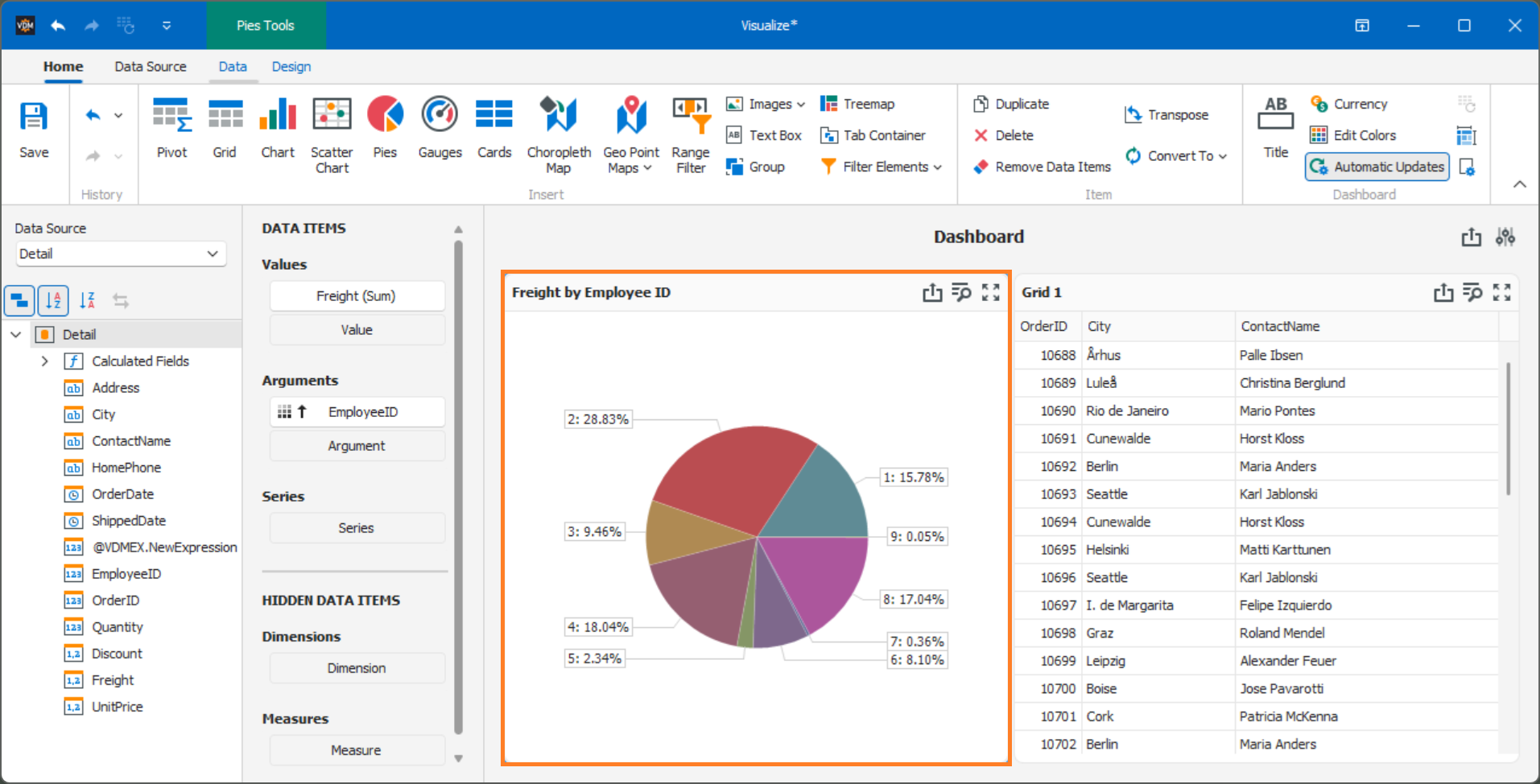

Step 3: Select the Filtering Element

Click on the Pie Chart (or whichever element you want to use as the filtering source).

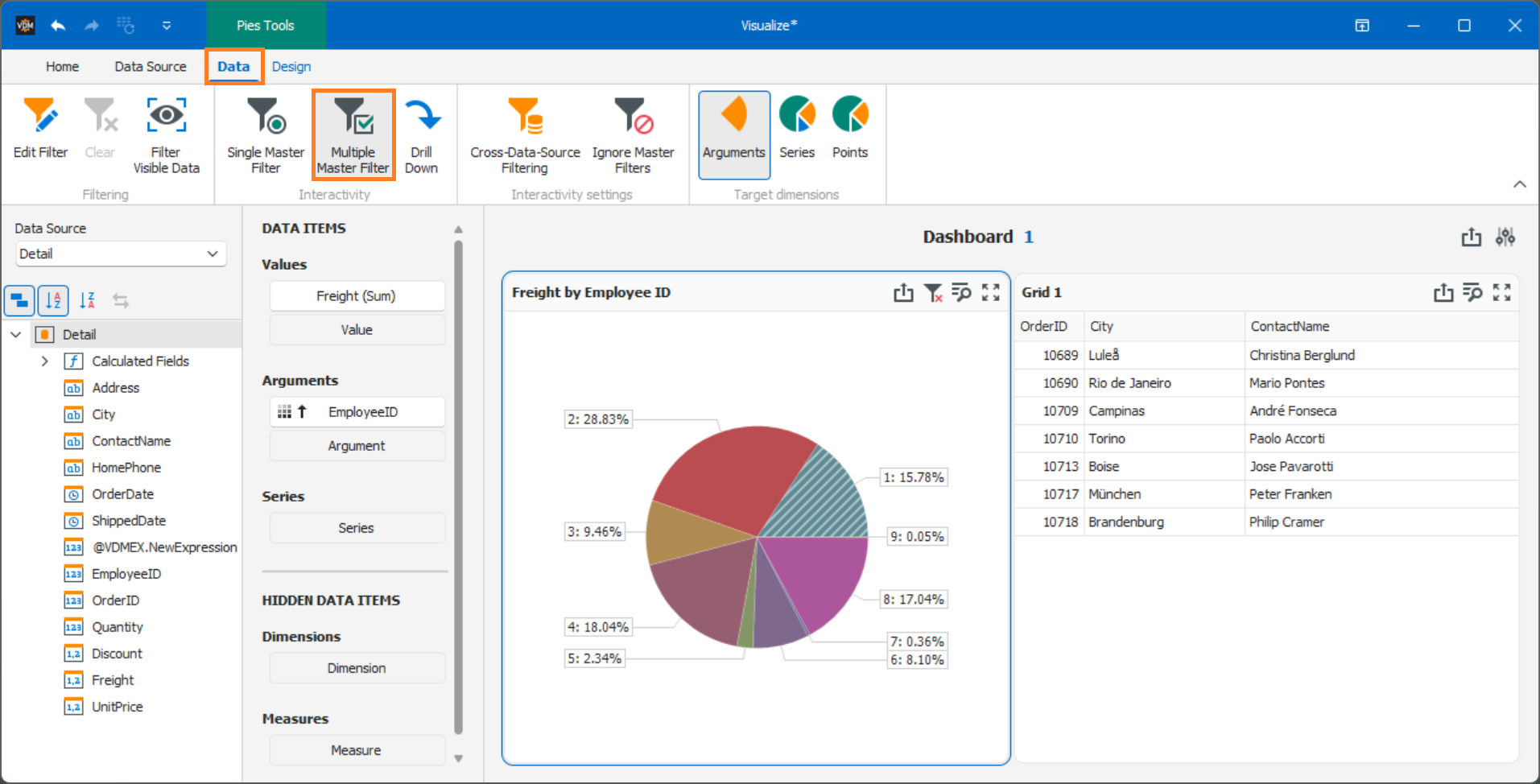

Step 4: Enable Multiple Master Filter

Under the Data tab, enable Multiple Master Filter.

Note: Tool options change depending on the selected item (e.g., Pie Tools, Chart Tools, Grid Tools).

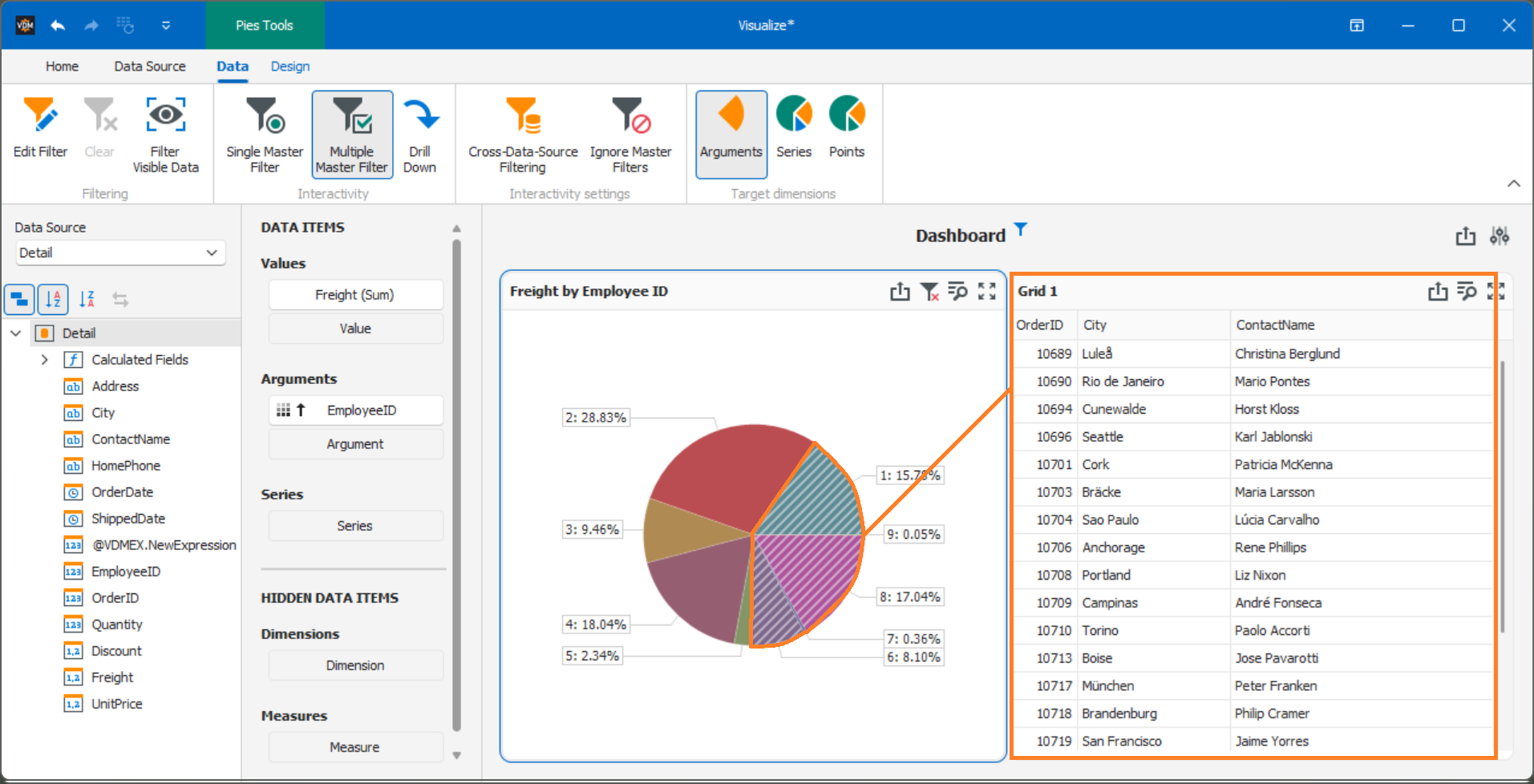

Step 5: Use the Filter Interactively

Click on multiple values (e.g., chart segments) using Ctrl + Click. The connected elements like the Grid or Pivot will automatically update to show combined results from all selected values.

Use Case: Ctrl + Click on multiple pie slices for “Employee 1,” “Employee 4,” and “Employee 6” to see data aggregated across all three in the grid.

Article Summary

The Multiple Master Filter in Visualize is a powerful tool for interactive dashboards, allowing users to filter based on multiple selected values across visual elements. It enhances the user experience when comparing categories, analyzing grouped metrics, or exploring layered data. This feature is essential when dashboards need dynamic multi-selection filtering without extra controls.

Use Case: In a regional sales dashboard, a manager could Ctrl + Click on multiple regions in a chart to compare total sales across those areas in a single view—without adding multiple filters or re-running reports.
