Summary: This article will walk you through setting up the Universe ODBC Driver step by step.



Before You Start

1. Determine if you need the 32-bit or 64-bit version of the driver. This depends on your system type.

2. Universe ODBC uses the UniRPC service, which operates on TCP Port 31438 by default.

3. If you prefer video instructions, scroll to the bottom of this article to watch a video guide!



Download and Install the ODBC Driver

1. Use the appropriate link below to download the driver:

   • 32-bit Driver: Download Here

   • 64-bit Driver: Download Here

2. Run the file you downloaded to start the installation process.

3. Follow the on-screen instructions until the installation is complete.

Note: For some systems, an older version of the ODBC driver may be required.





Download either the 64-bit or 32-bit ODBC driver (varies depending on your system)

32-bit ODBC Driver - https://license.bridgeworksllc.com/downloads/U2ODBC_32bit.msi

64-bit ODBC Driver - https://license.bridgeworksllc.com/downloads/U2ODBC_64bit.msi



NOTE: Some systems require an older version of ODBC available here.



Setting Up the ODBC Driver

Step 1: Download and install the ODBC Driver.

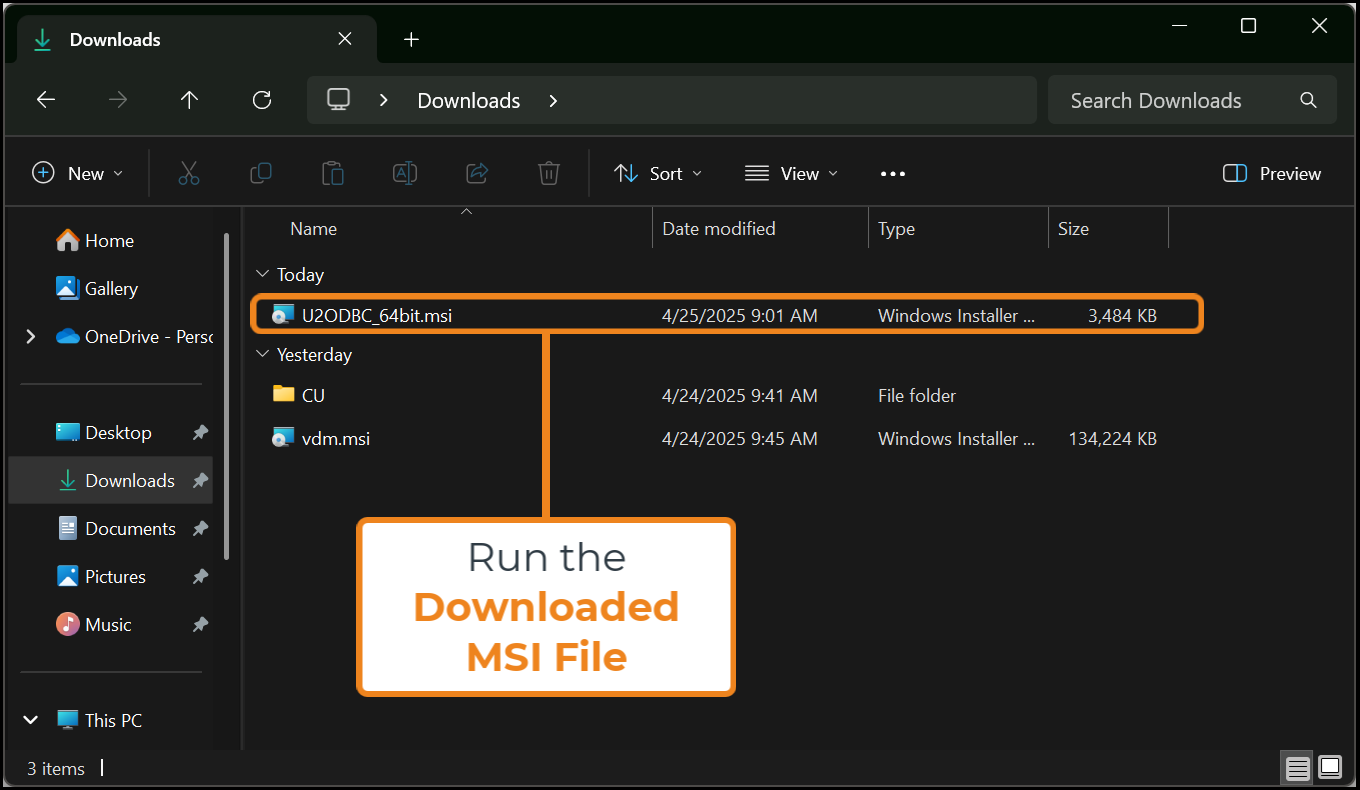

1. Run the Downloaded MSI File: Locate the MSI file you downloaded, then double-click it to start the installation.

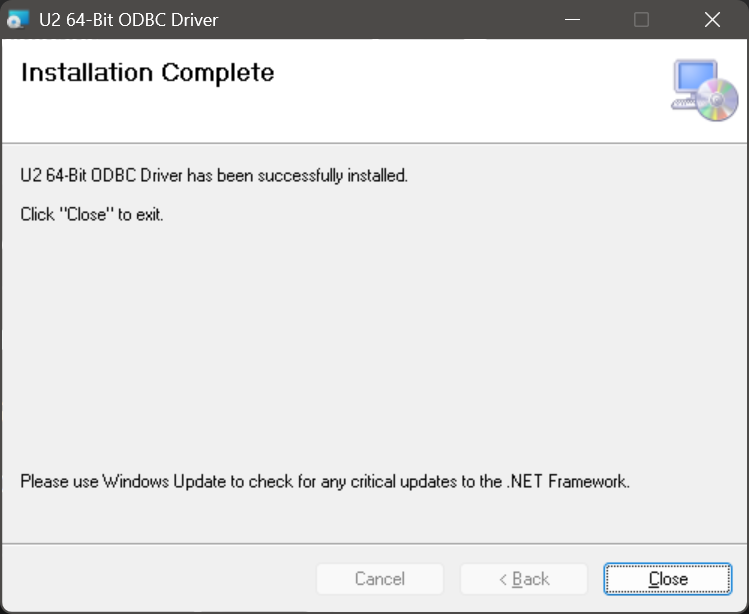

2. Complete the Installation Process: Follow the on-screen instructions step by step until the installation is finished.





Step 2: Modify the UCI.config File

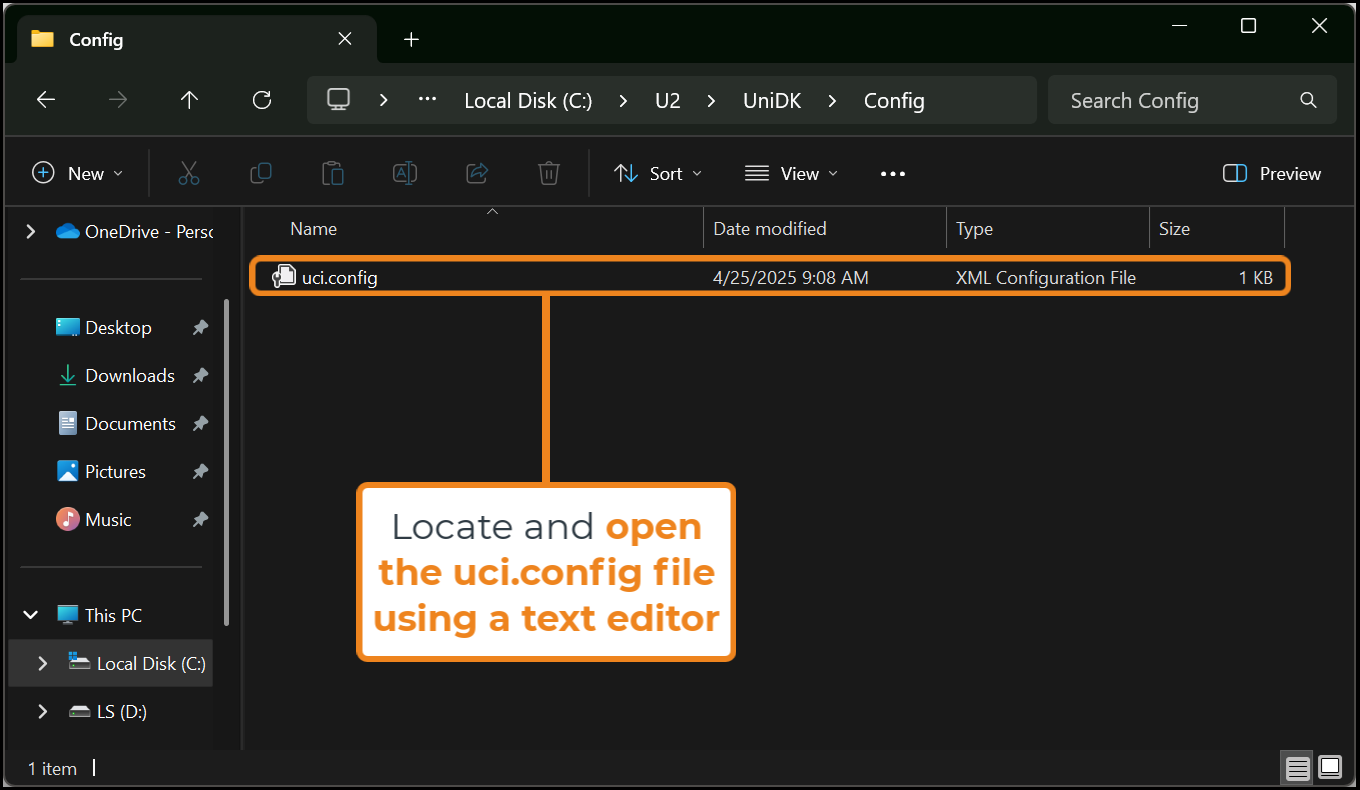

1. Locate and Open the UCI.config File: Find the file at the following path on your computer: C:\U2\UniDK\Config. Use a text editor, such as Notepad or WordPad, to open the UCI.config file.

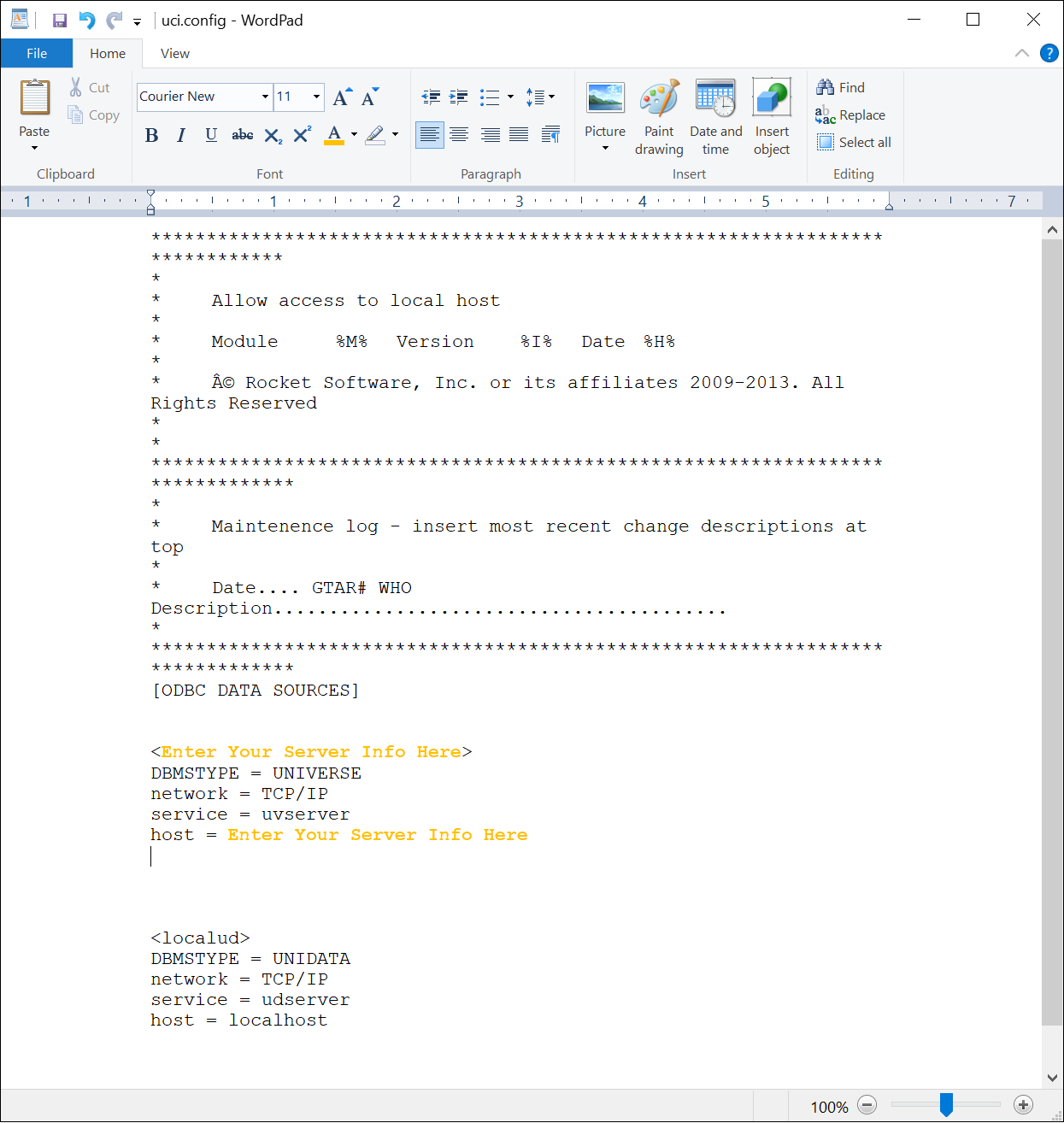

2. Enter Your Server Information: Look for areas in the file marked with placeholders like “Enter Your Server Info Here” and replace the placeholder text with the specific server information you’ve been provided.

• Example: If your server is named "MyServerName" enter that name in the indicated section.

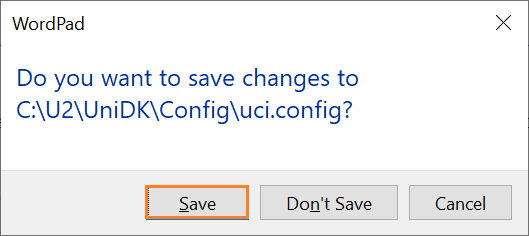

3. Save and Close: Save the changes you made to the file, then close the text editor to complete the process.





Step 3: Create a new ODBC data source.

(Note: Default port for Universe ODBC is 31438)



1. Open the ODBC Data Sources application: Use Windows Search and type ODBC Data Sources to find it, then select 32-bit or 64-bit, depending on the driver you installed.



Important Note:

• If your system uses a 32-bit driver, you must configure the 32-bit ODBC Data Source.

• If your system uses a 64-bit driver, you must configure the 64-bit ODBC Data Source

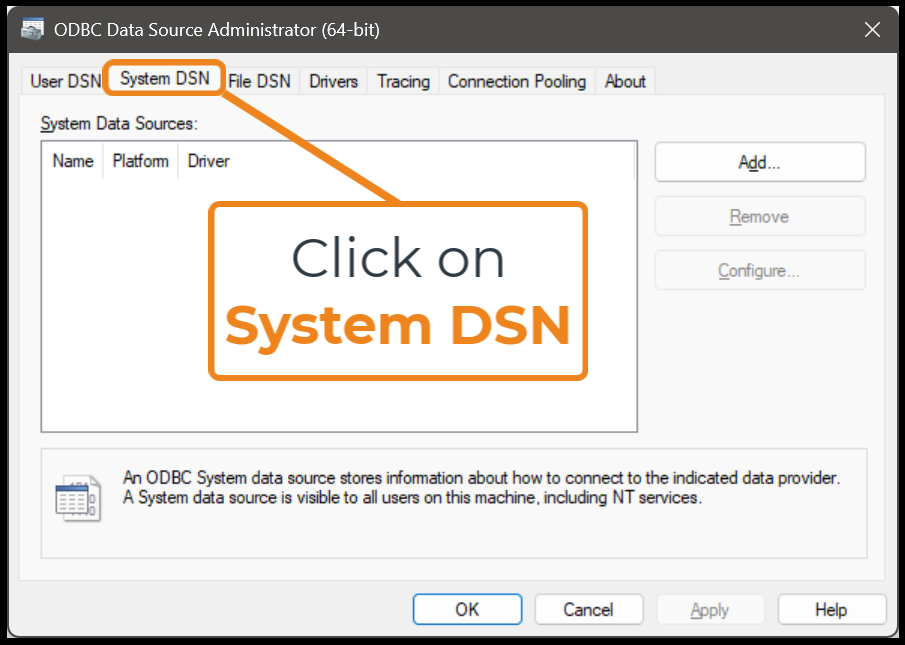

2. Go to the System DSN Tab: In the ODBC Manager, click on the System DSN tab to manage system-wide data sources.

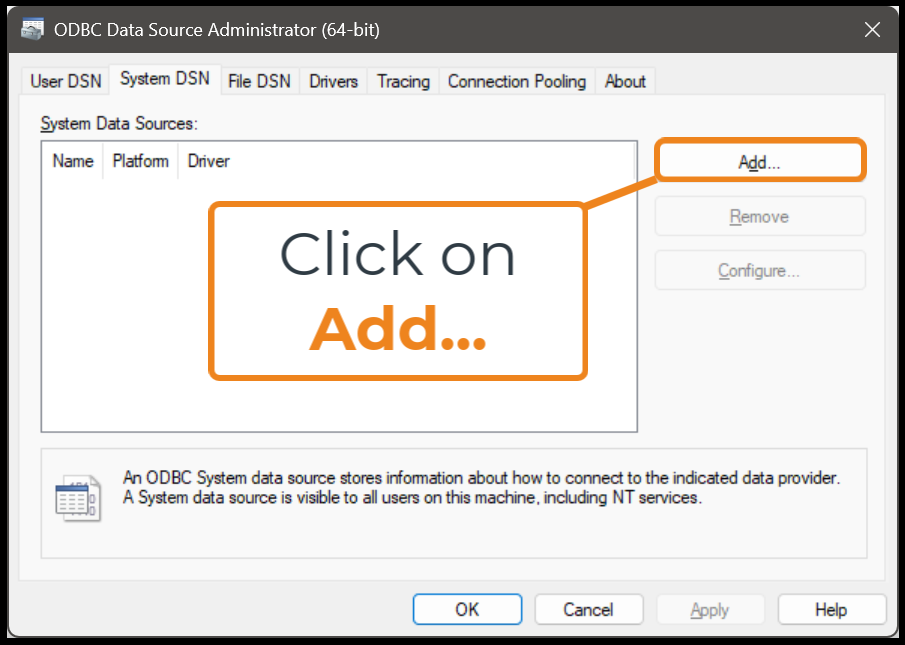

3. Add a New Data Source: Click the Add button to start creating a new data source.

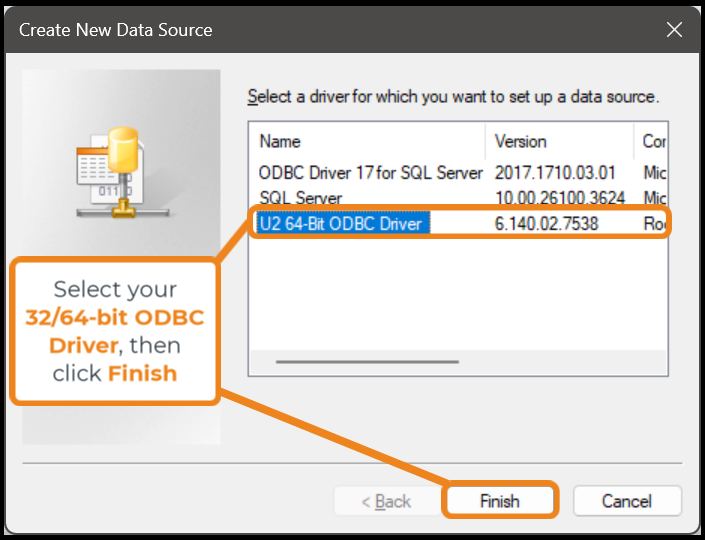

4. Choose the Driver: From the list of available drivers, select the U2 32-bit or 64-bit ODBC Driver (depending on your system) and click Finish.

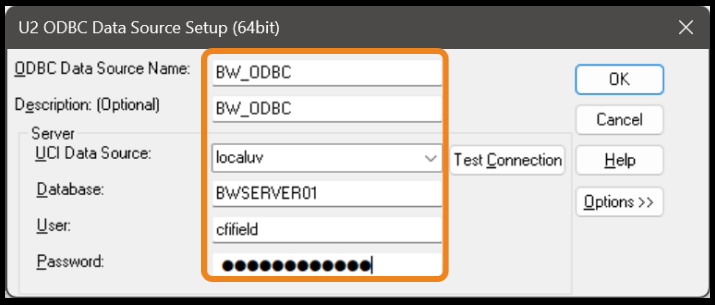

5. Enter Your Configuration Details: Fill in the setup fields with your server information and any other required details provided by your database.

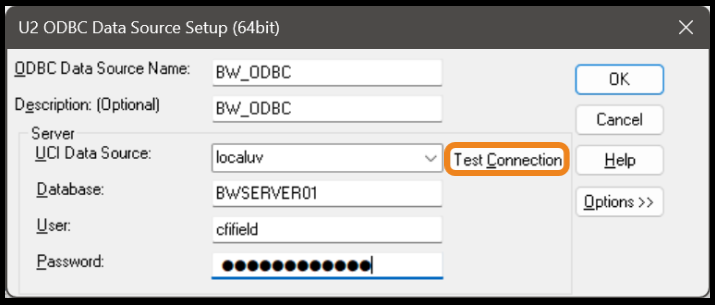

6. Test the Connection: Use the Test Connection button to ensure your setup works correctly. If the connection is successful, save the configuration to complete the process.





Step 4: Create a connection profile using the new setup.

(Note: Default port for Universe ODBC is 31438)

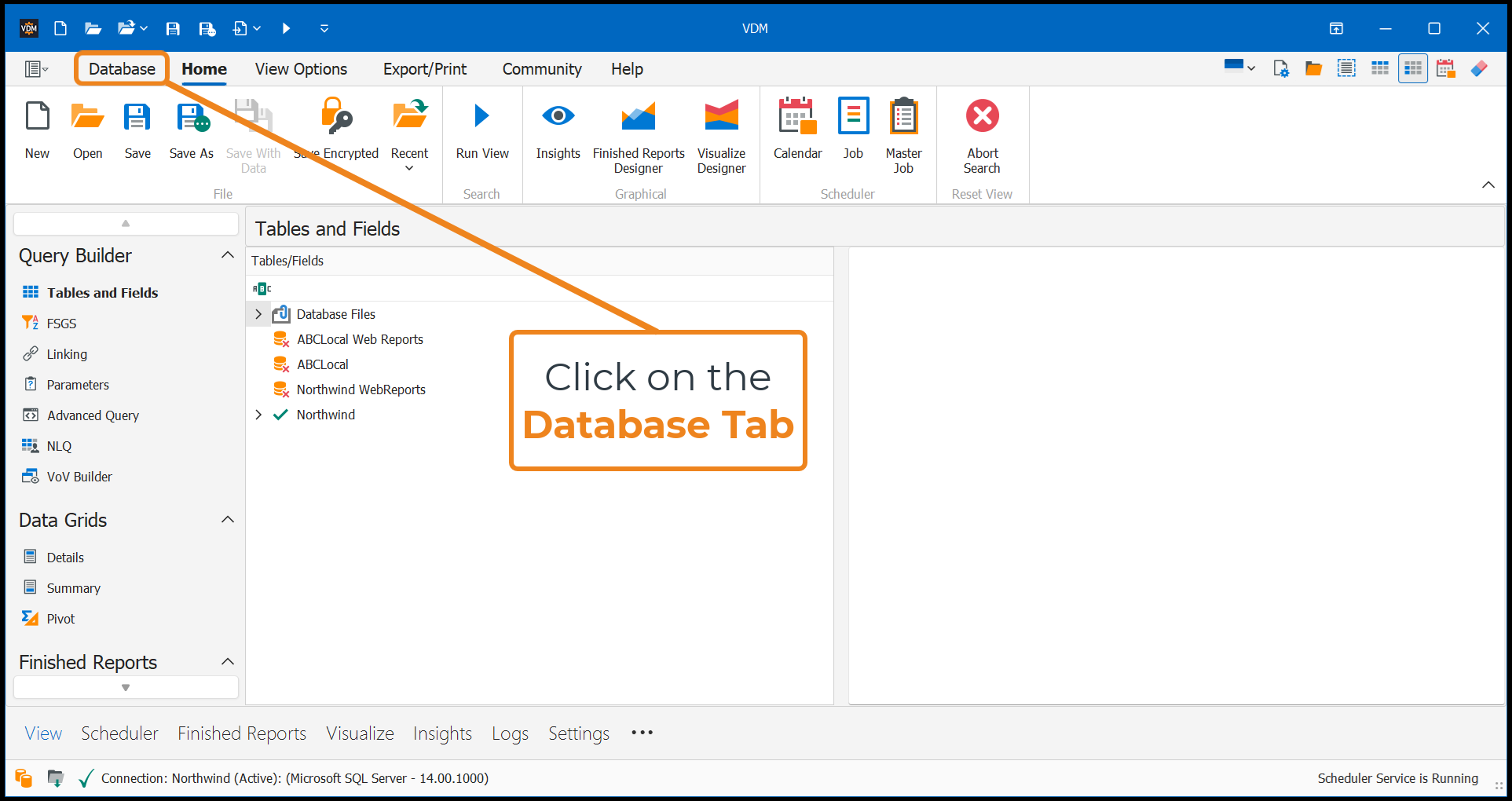

1. Open VDM: Launch VDM and navigate to the Database tab in the main menu.

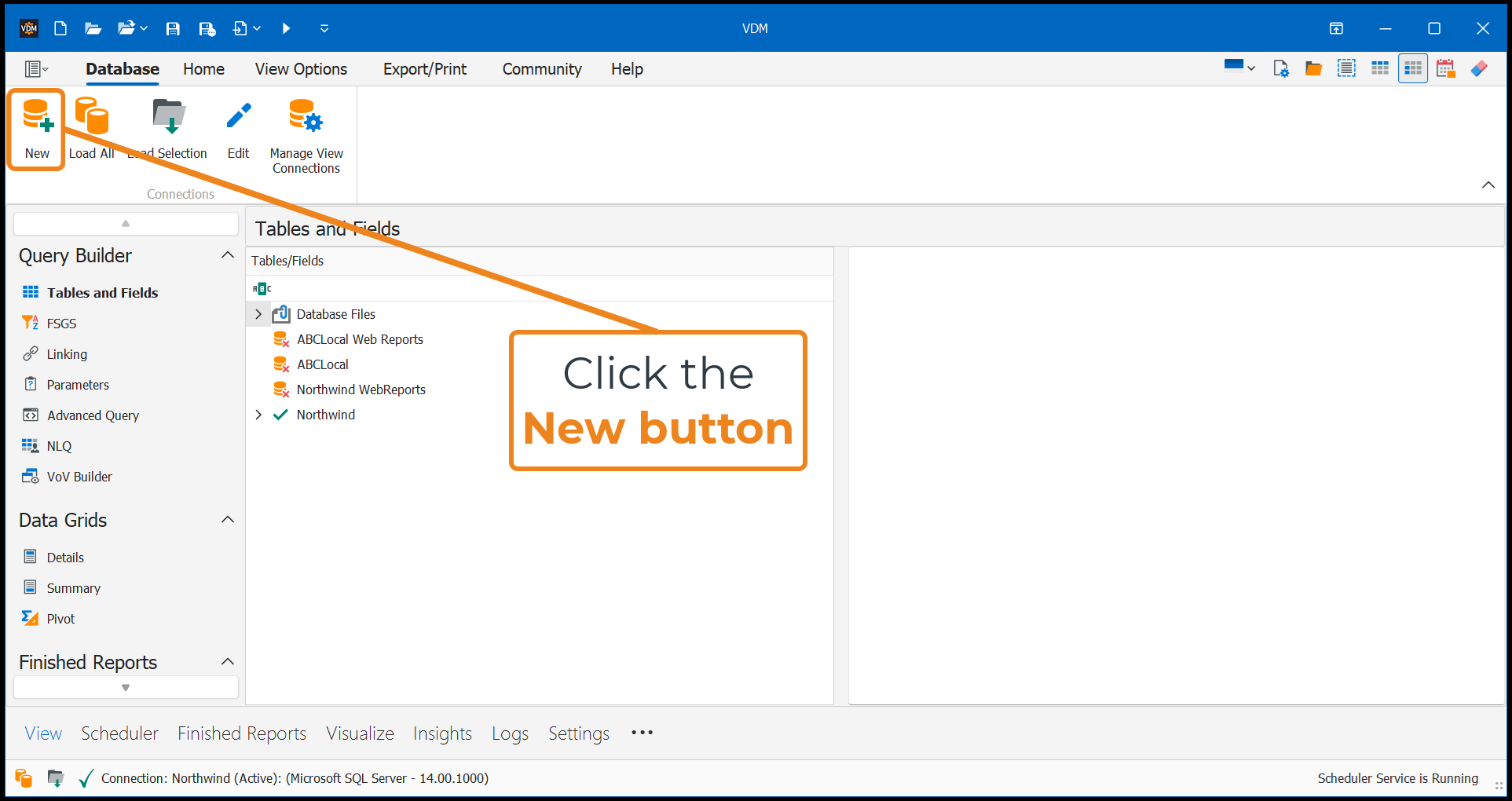

2. Create a New Connection: In the ribbon bar, click New to begin setting up a new connection profile.

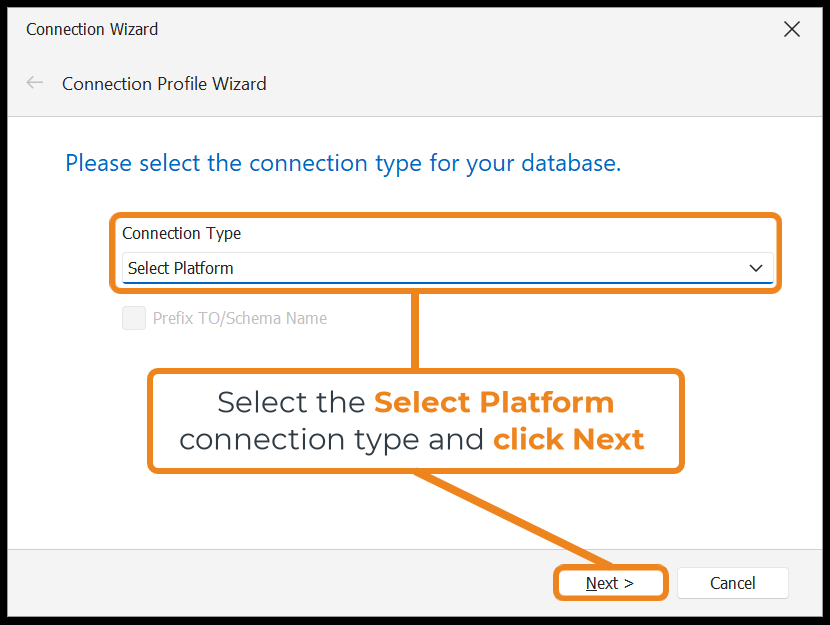

3. Select Your Connection Type: From the Connection Type dropdown menu, choose Select Platform, then click Next.

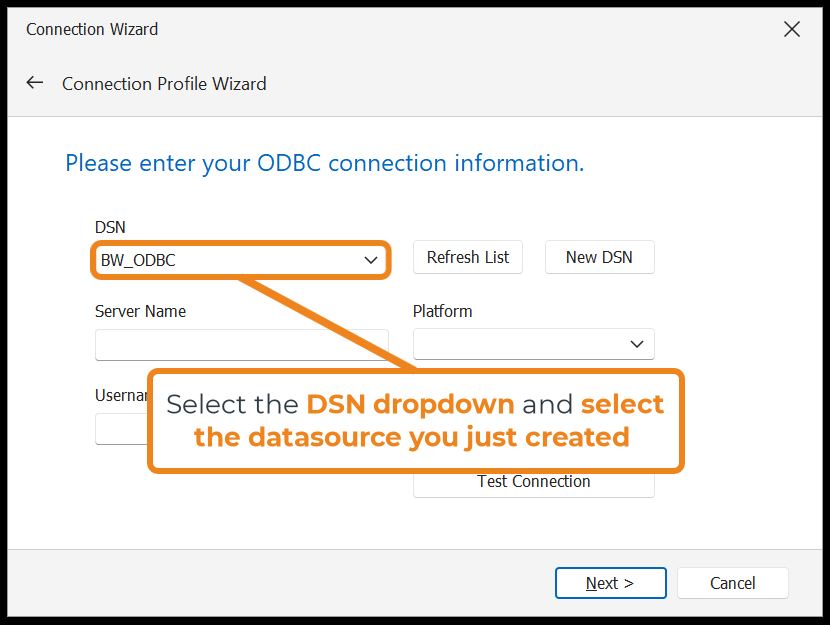

4. Choose Your Data Source: In the DSN dropdown menu, select the data source you created during the ODBC setup.



Note: If the list is empty, click Refresh List.

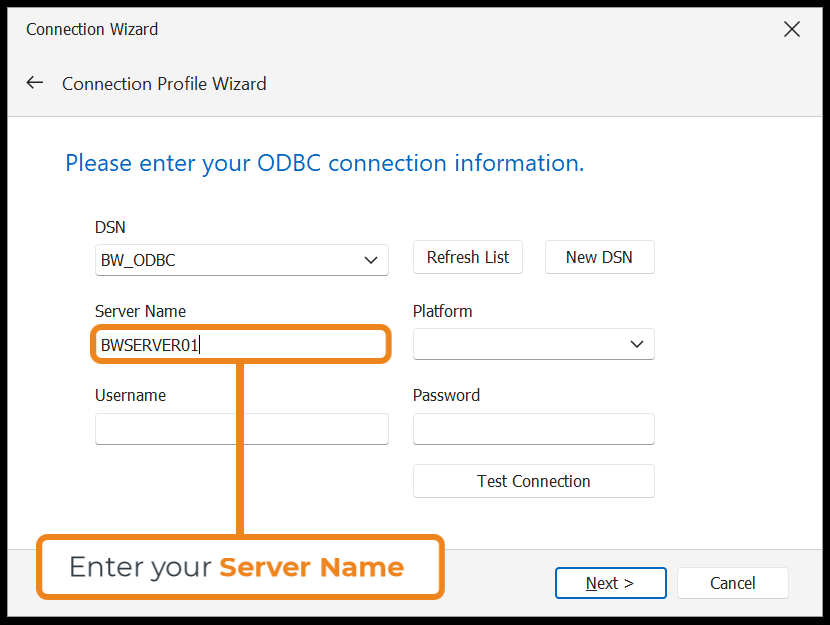

5. Enter Your Server Information: Provide the Server Name you used during the ODBC configuration process.

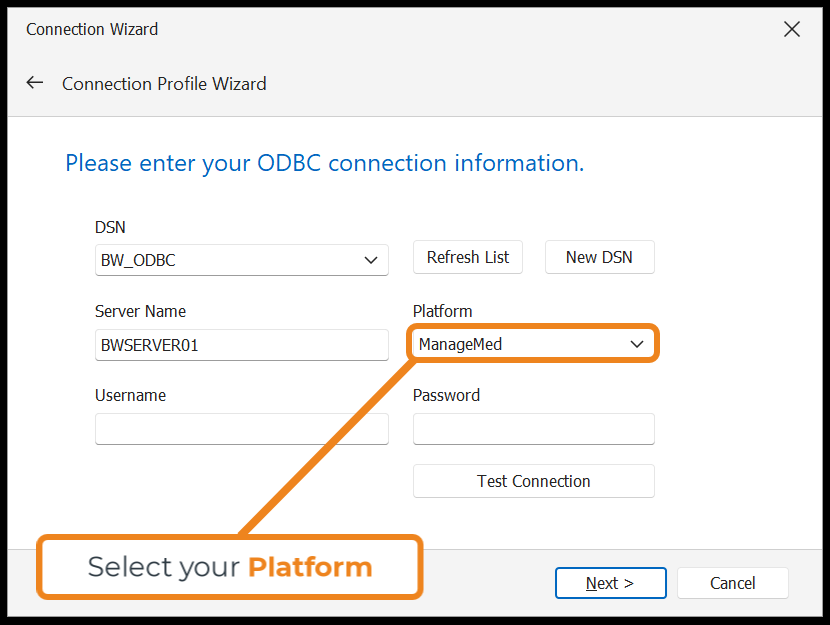

6. Select Your Database Platform: Choose the appropriate platform for your database (e.g., ManageMed).

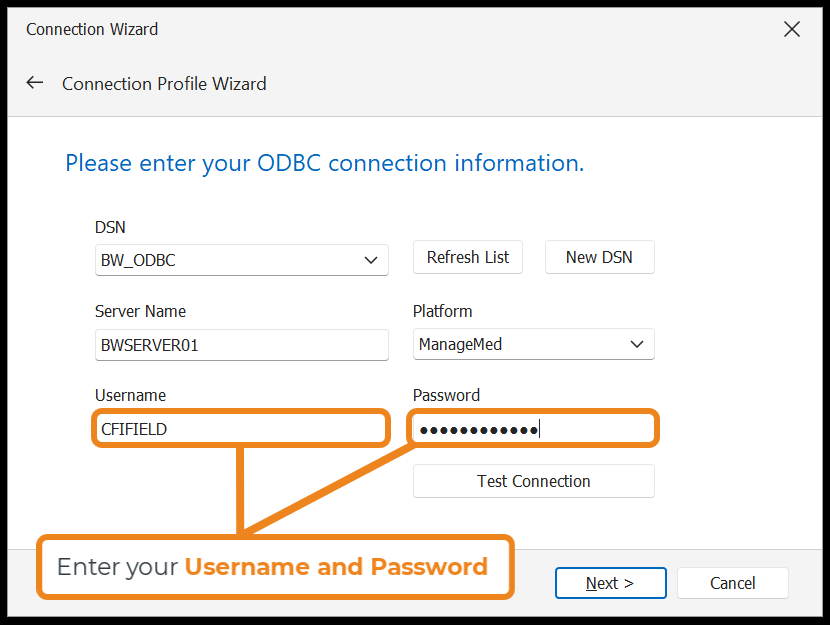

7. Enter Your Credentials: Input the Username and Password associated with your database setup.

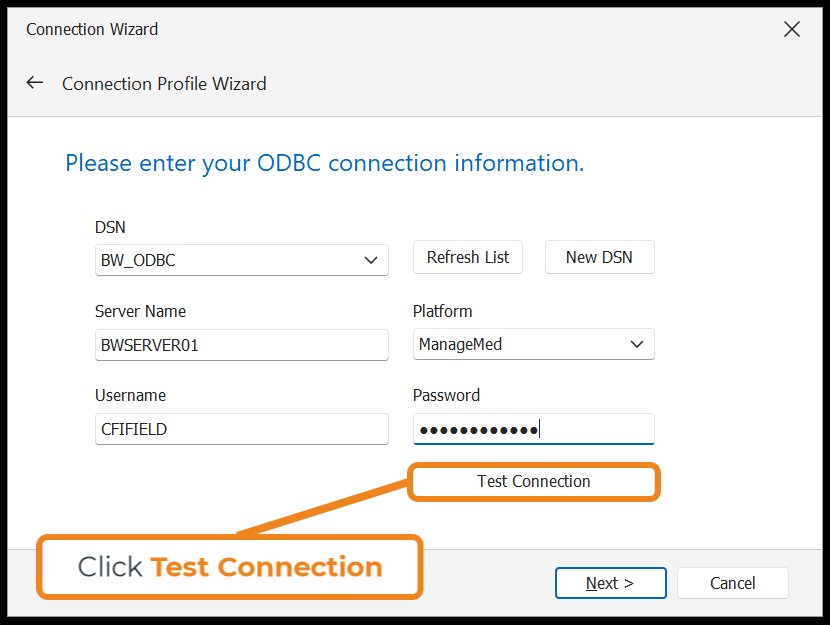

8. Test Your Connection: Click Test Connection to verify that the connection works properly.





9. Save the Profile: If the test is successful, click Next, then Finish to save your new connection profile.

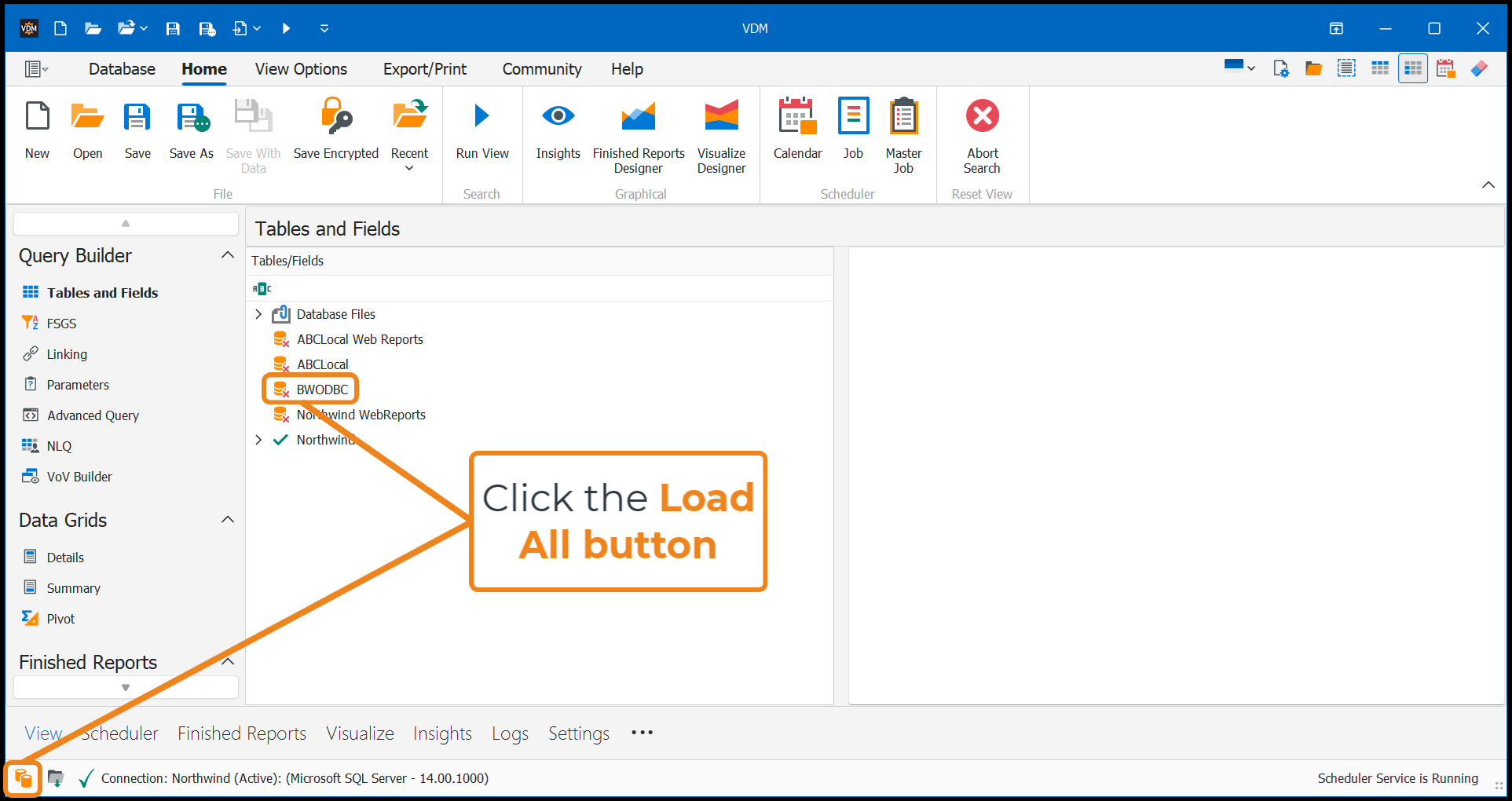

10. Load Your Connection Information: To populate the connection with your database details, click the Load All button. Your new connection will be populated in the list of available databases under Tables and Fields.



Video Steps

Step 1: Download and install the ODBC Driver.





Step 2: Modify the UCI.config file.





Step 3: Create an ODBC data source.





Step 4: Create a connection profile in VDM.
