Export To Excel With Sheet Names

Trouble Viewing Images? Right-click on any image and select "Open in new tab" to view a larger version. You can also zoom in using Ctrl + Mouse Wheel for easier readability.

Article Goal

Set up Finished Reports to name Excel worksheet tabs dynamically based on group values during export, using scripts and configuration options.

What Is This For?

When exporting reports to Excel, VDM normally places each page into its own tab with generic naming. By using a script and capturing group values, you can customize each Excel tab name to reflect its respective group ID or label—making the exported report far easier to navigate.

Why Use Dynamic Sheet Naming?

• Improves usability and professionalism in exported reports

• Automatically assigns relevant names to tabs (e.g., by Employee ID, Region, etc.)

• Reduces manual renaming of sheets

• Helps users identify grouped data at a glance

Tip: This method is especially helpful in reports where each group spans multiple pages but should still be exported as a single tab.

Step-by-Step: Export To Excel with Sheet Names

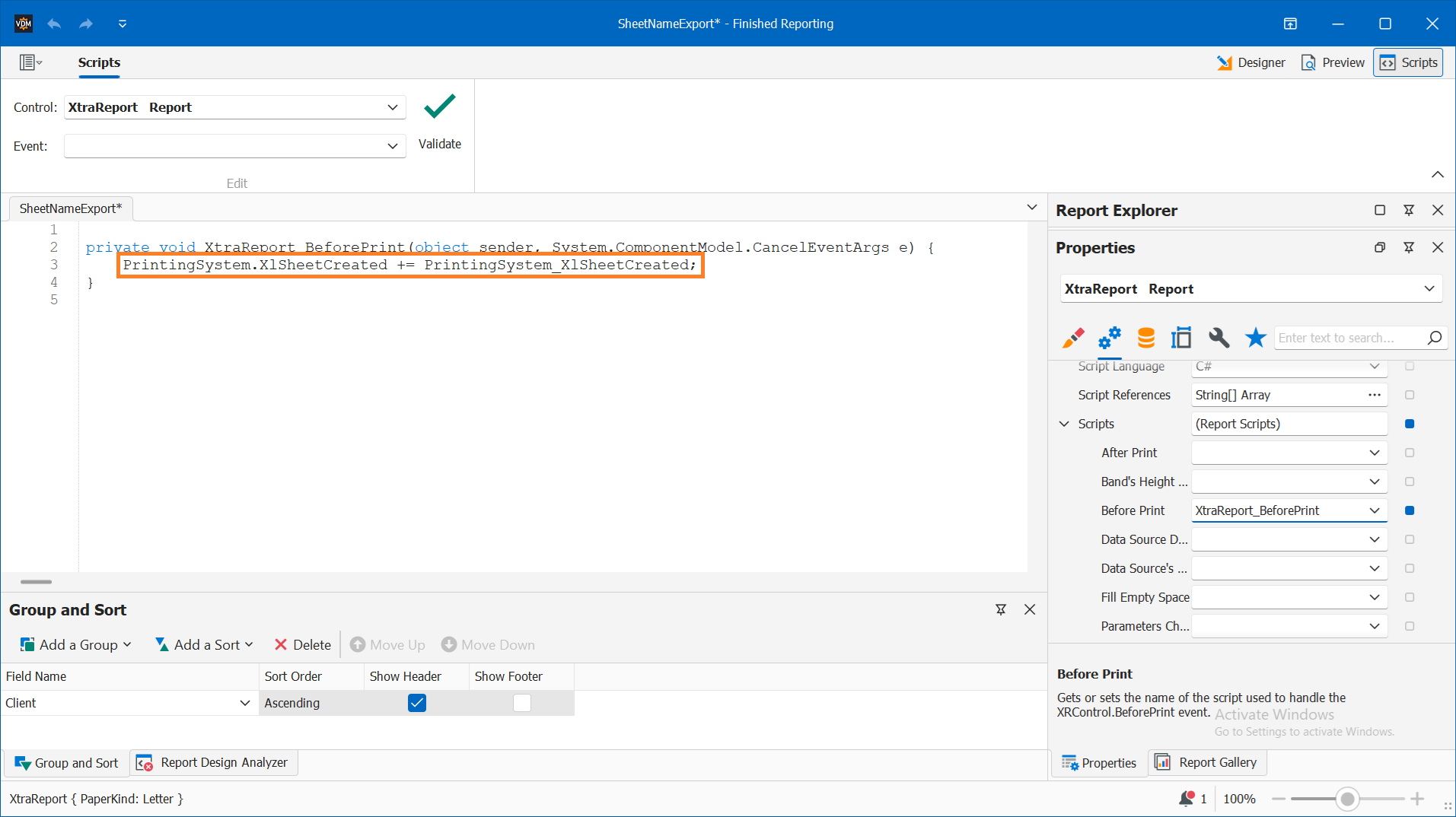

Step 1: Add a “Before Print” Script to the Report

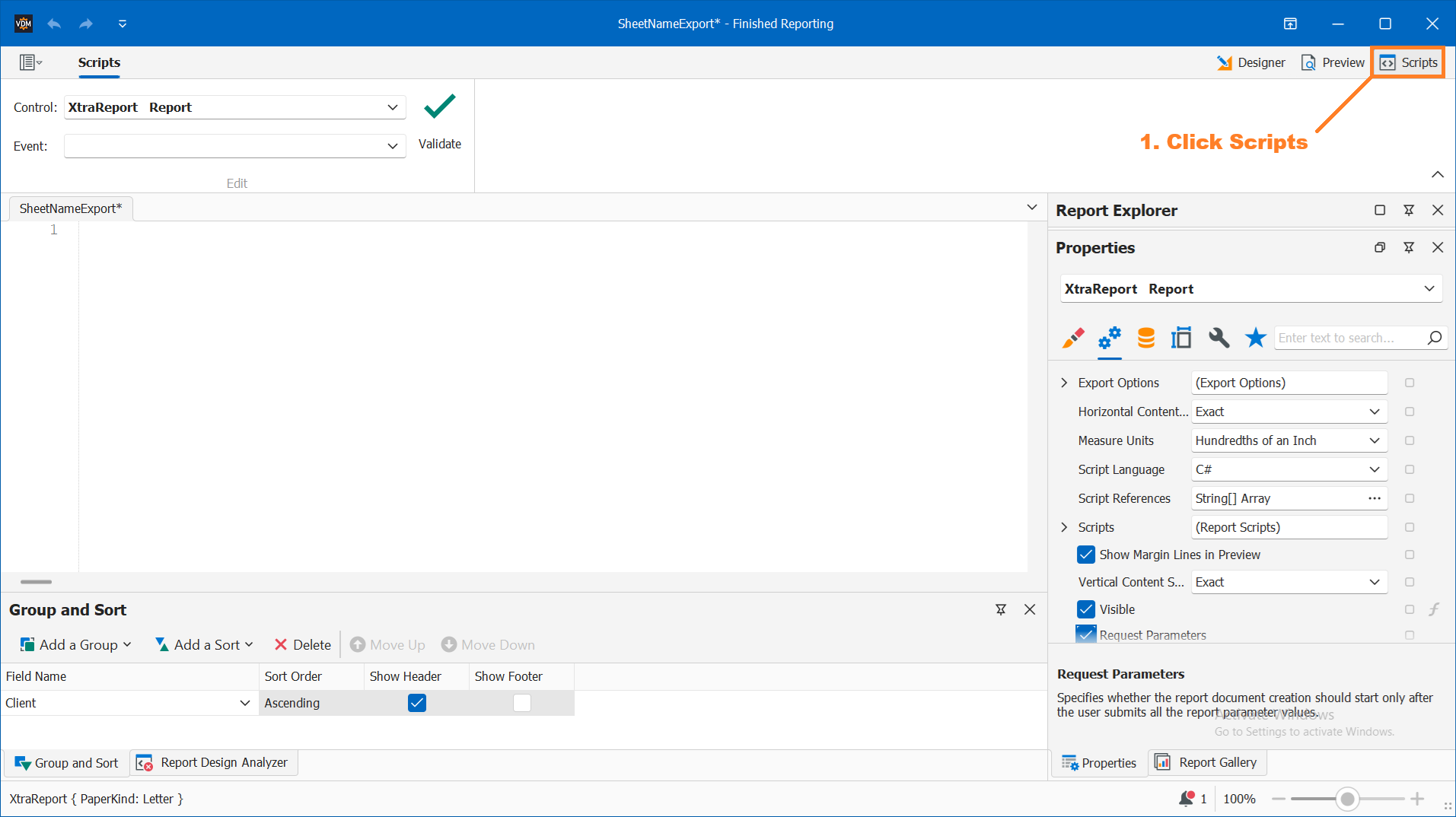

1. Click on Scripts at the top right of the Finished Report Designer

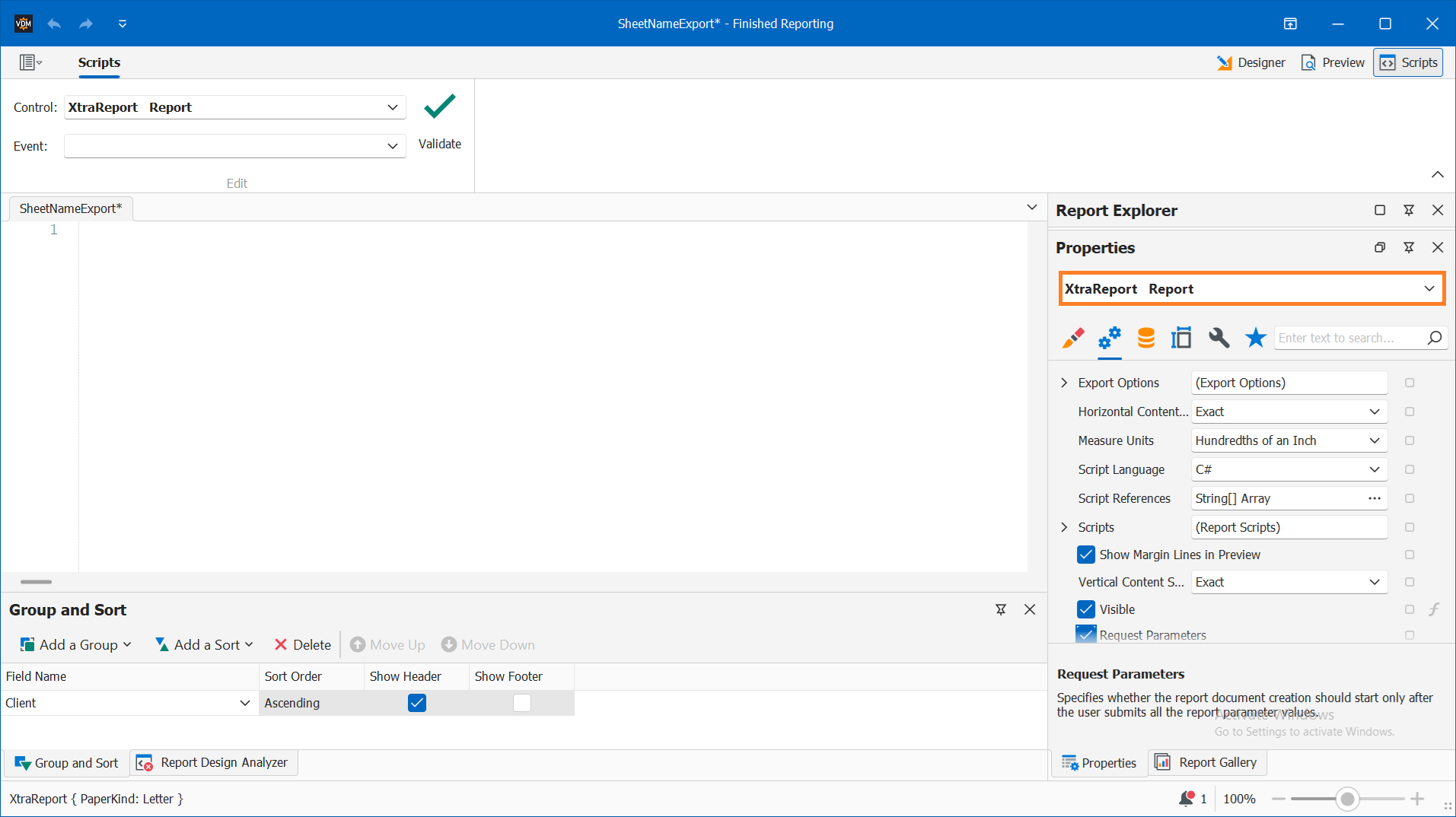

2. In the properties panel, select XtraReport Report from the drop down

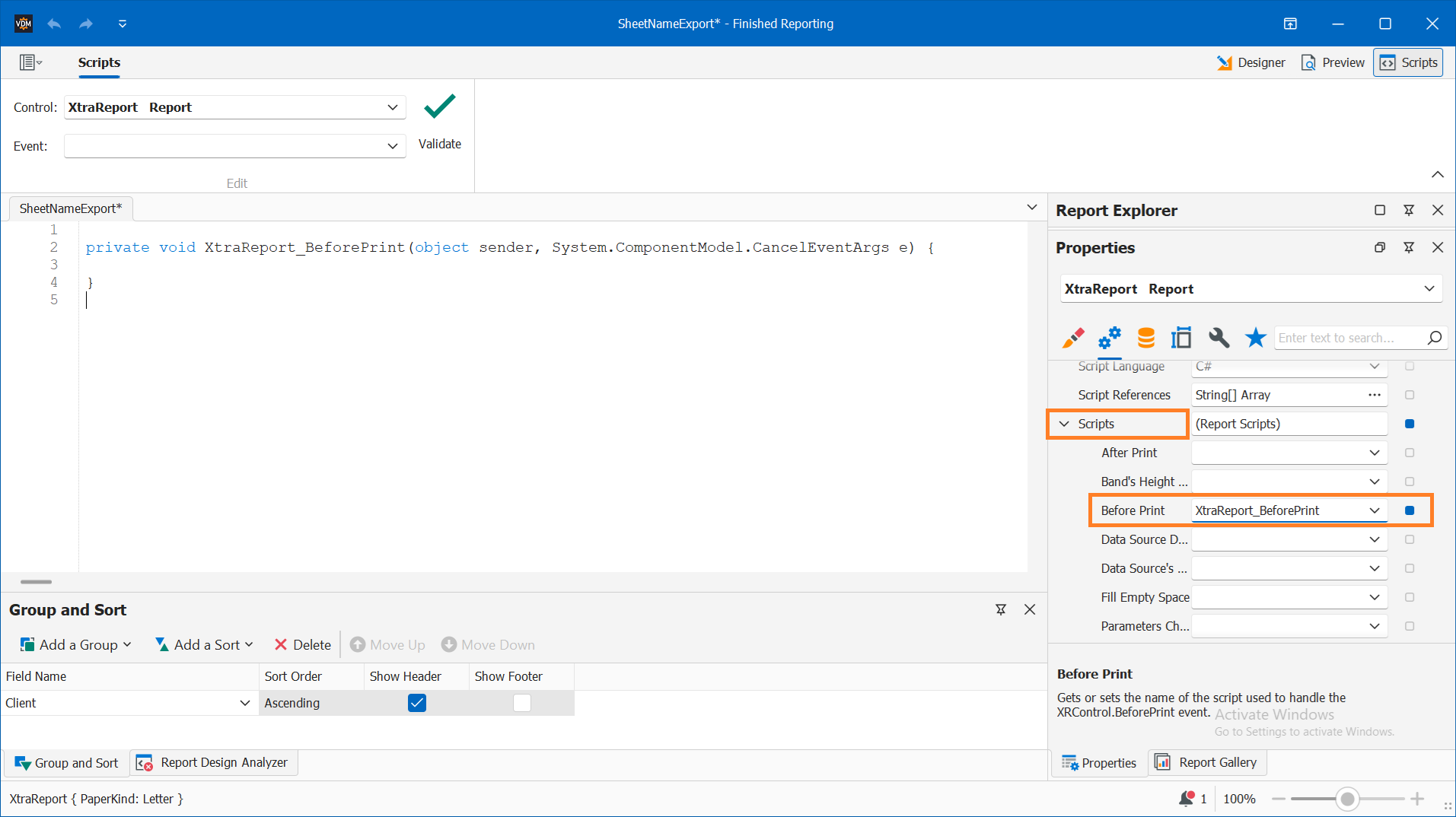

3. Expand Scripts, then add a new script under “Before Print”

4. Paste the following line inside the BeforePrint subroutine:

PrintingSystem.XlSheetCreated += PrintingSystem_XlSheetCreated;

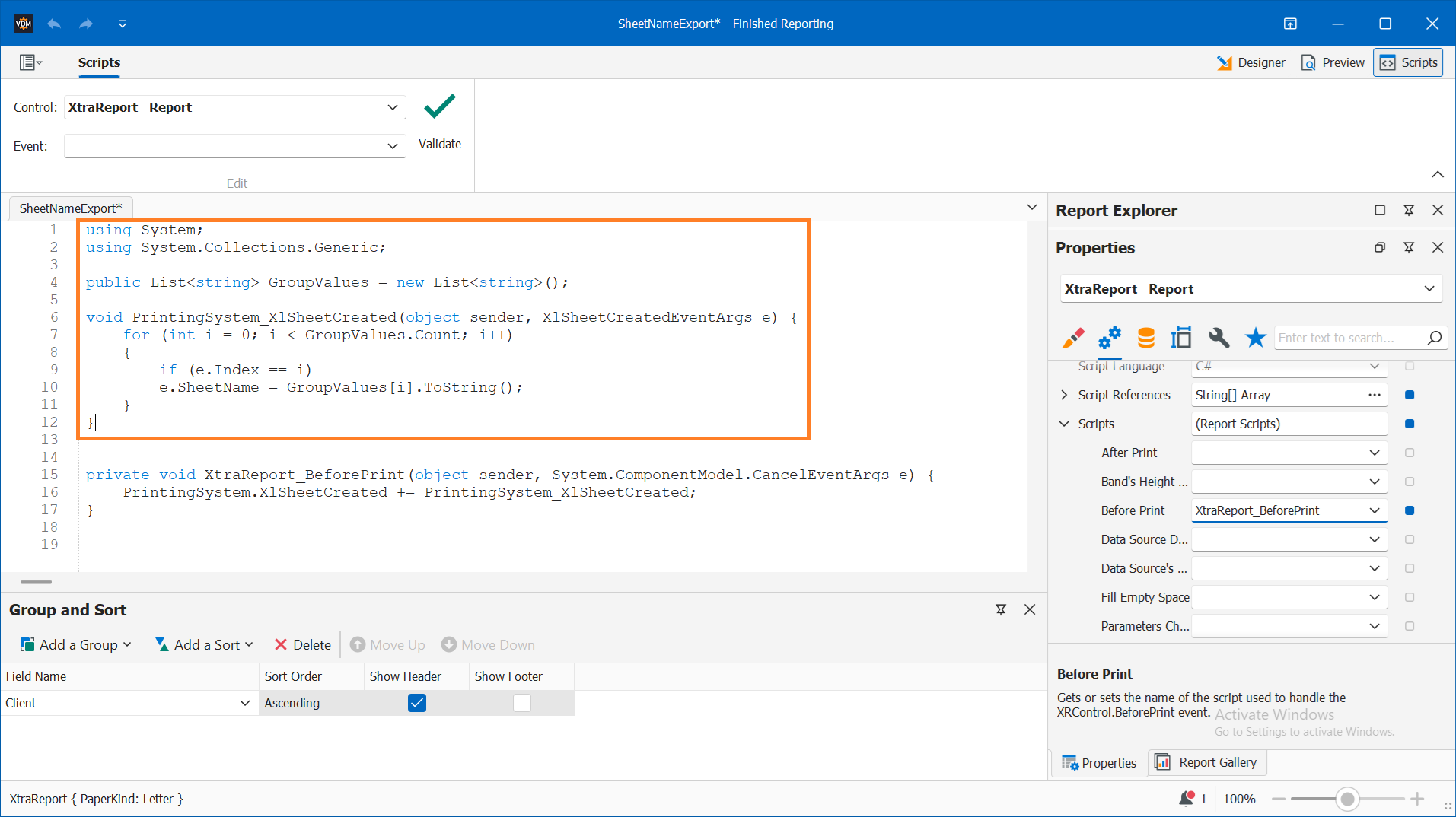

Step 2: Add Global Code at the Top of the Script Page

At the top of your script editor (Line 1), insert the following code block:

using System;
using System.Collections.Generic;

public List<string> GroupValues = new List<string>();

void PrintingSystem_XlSheetCreated(object sender, XlSheetCreatedEventArgs e) {
    for (int i = 0; i < GroupValues.Count; i++)
    {
        if (e.Index == i)
            e.SheetName = GroupValues[i].ToString();
    }
}
Important Note: This script builds a list of group values to be used as sheet names and assigns them one-by-one as Excel sheets are created.

Important Note: This script builds a list of group values to be used as sheet names and assigns them one-by-one as Excel sheets are created.

Step 3: Add a Page Break and “Before Print” Script to the Group Label

You need to add each group value to the list before the report is printed.

1. Click back on Designer (Top right of VDM)

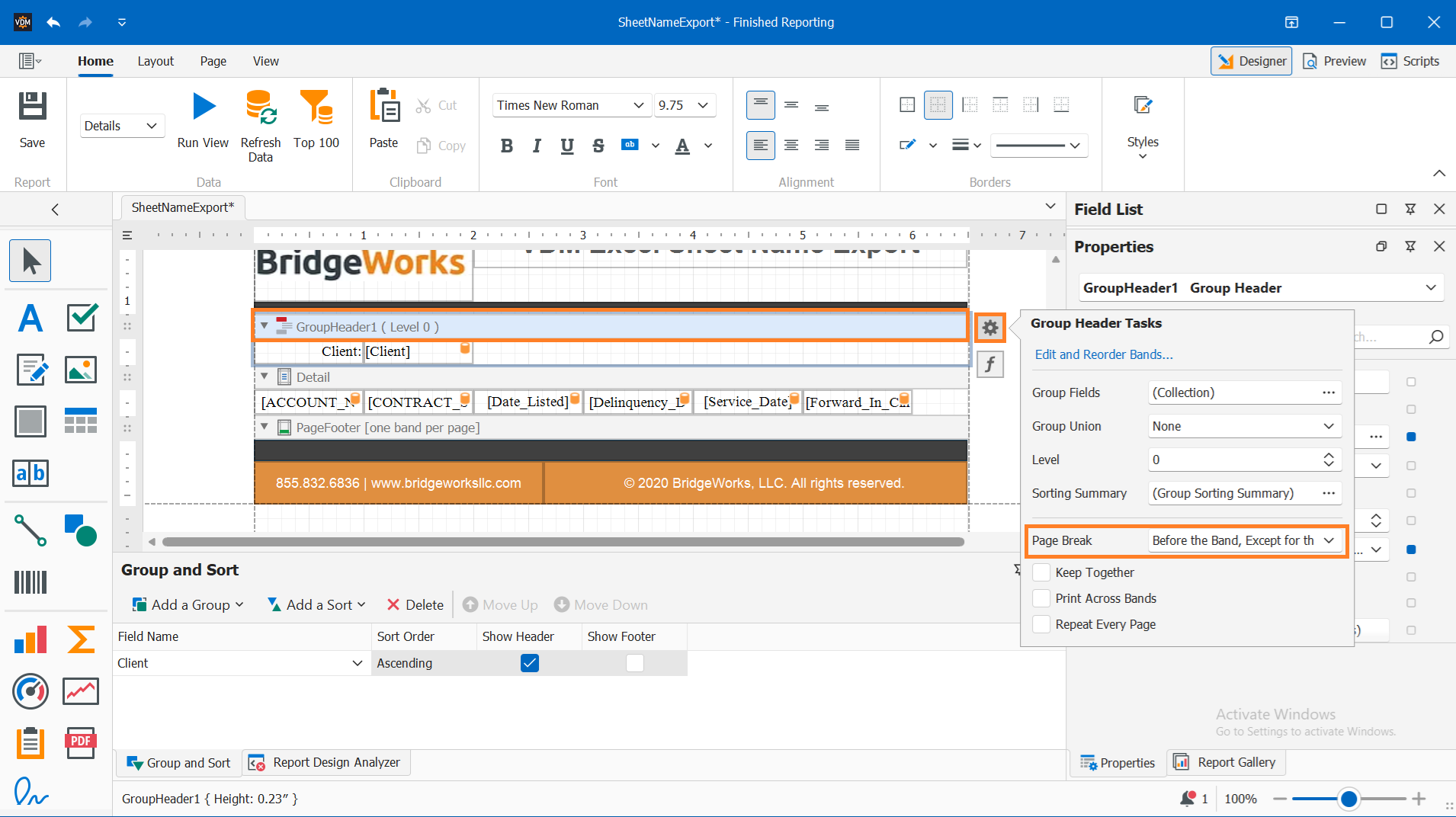

2. Select the Group Header that has your label in it, then expand the Group Header Tasks and add a Page Break.

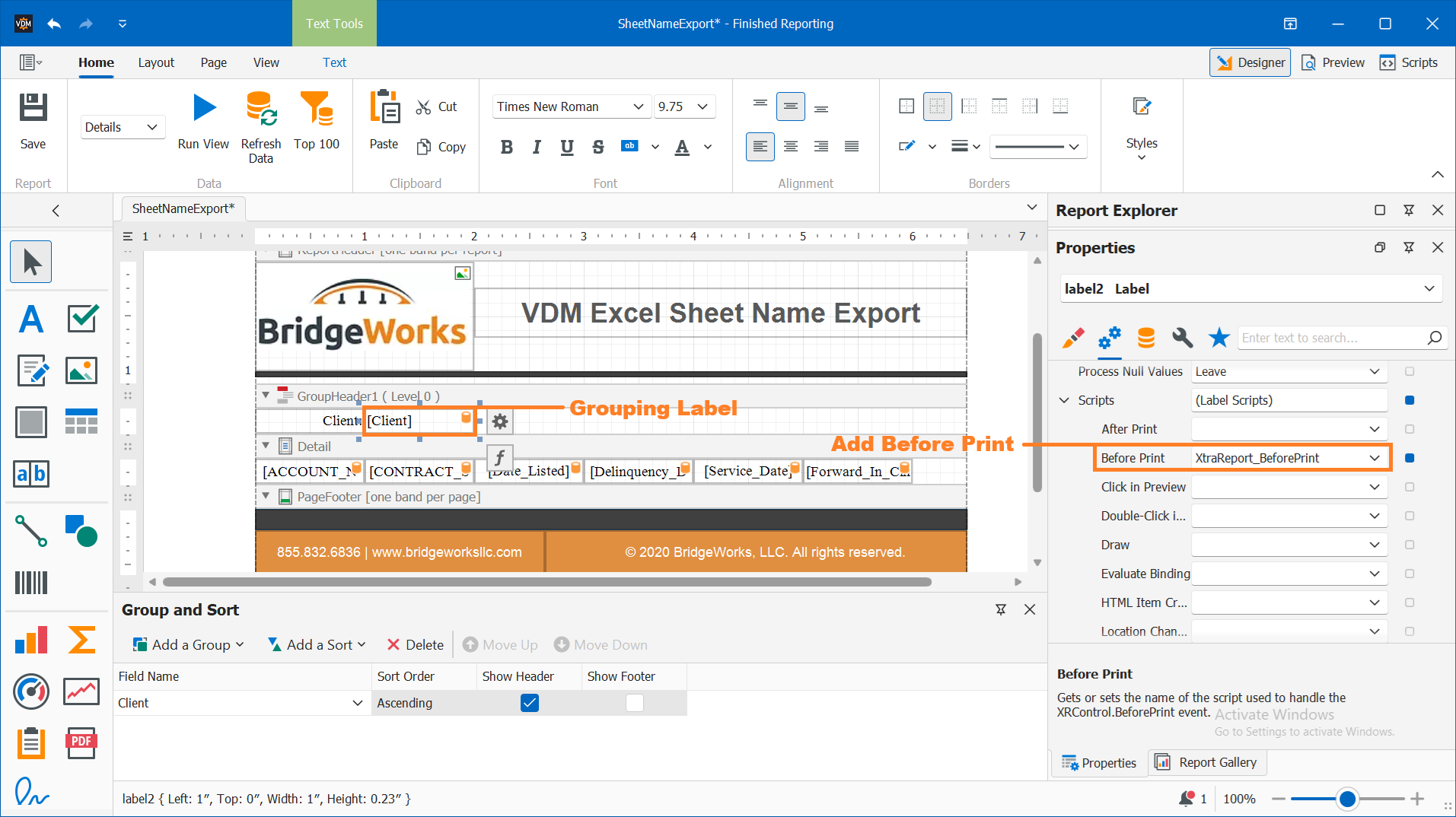

3. Identify and select the label that returns your grouping field (e.g., ClientID)

4. Add a Before Print script to that label

5. Insert the following line of code (modify label name as needed):

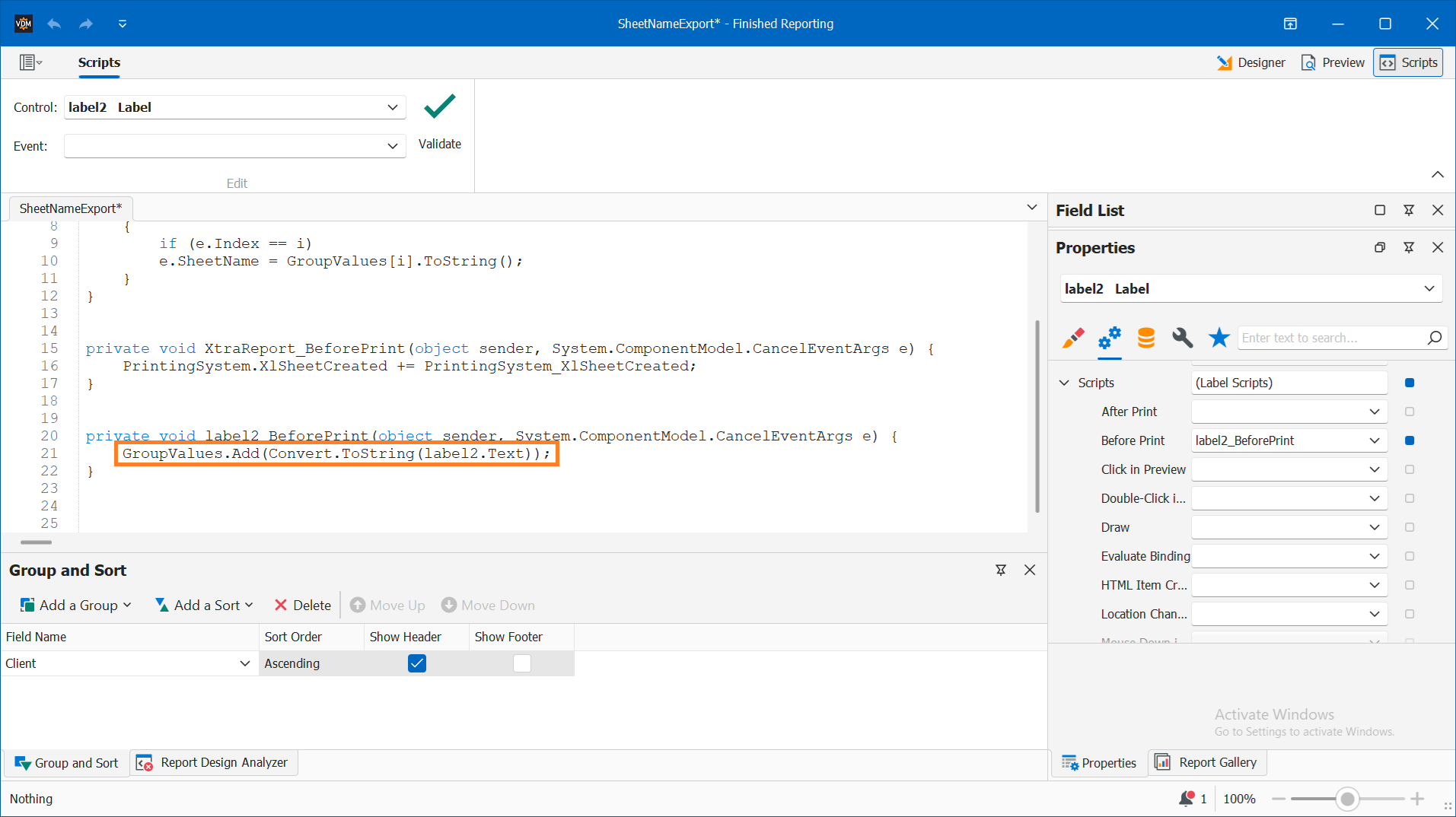

GroupValues.Add(Convert.ToString(label2.Text));





Reminder: Update label2.Text to match your actual label's name.



Example: labelX.Text



This must be added to the group-level label that’s placed before the page break, so the value is captured before the sheet split.

---

Step 4: Set the Excel Export Mode

To ensure each group is exported to its own worksheet:

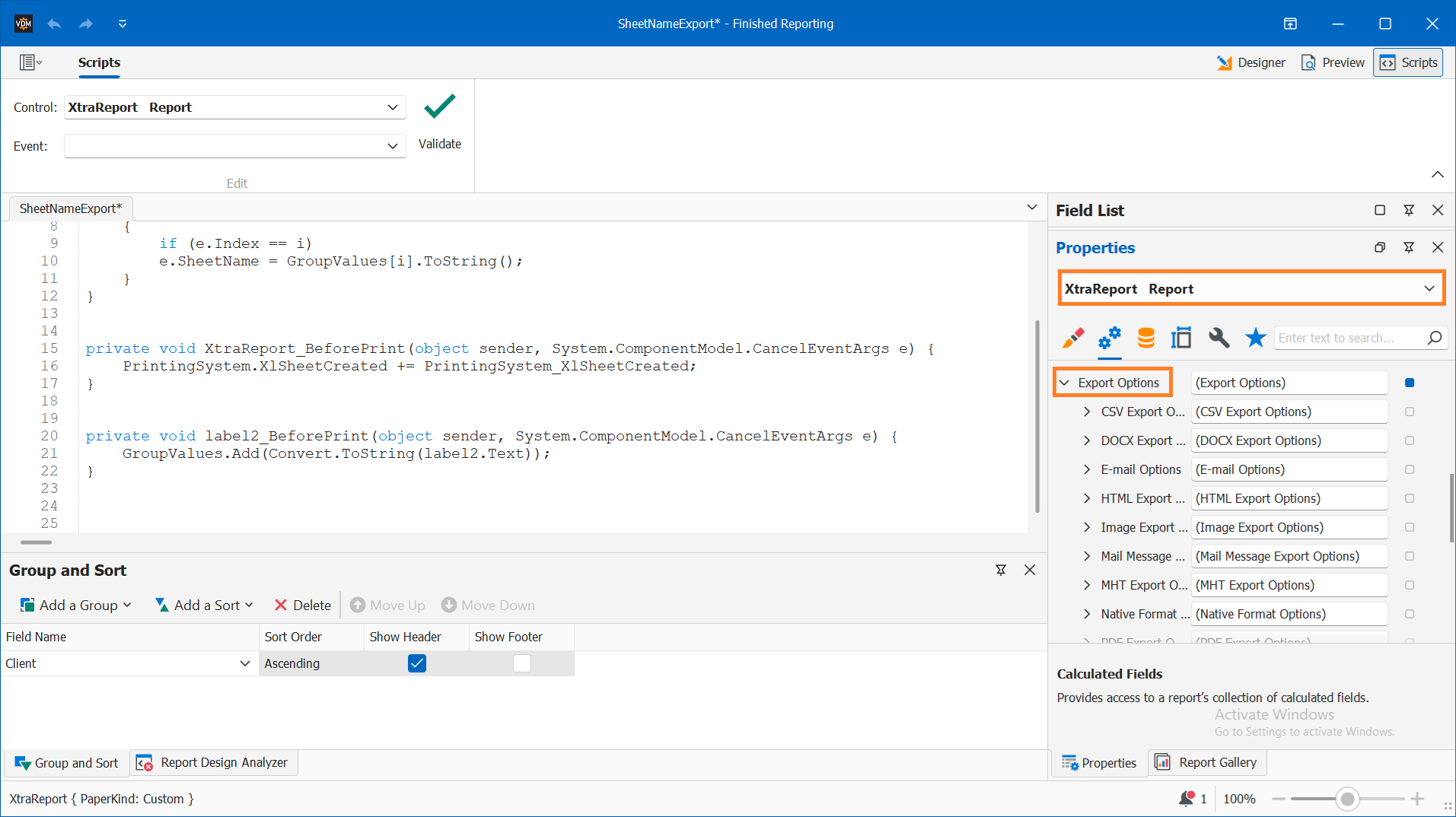

1. Go to the Report’s Export Options in the Properties Panel and expand Export Options

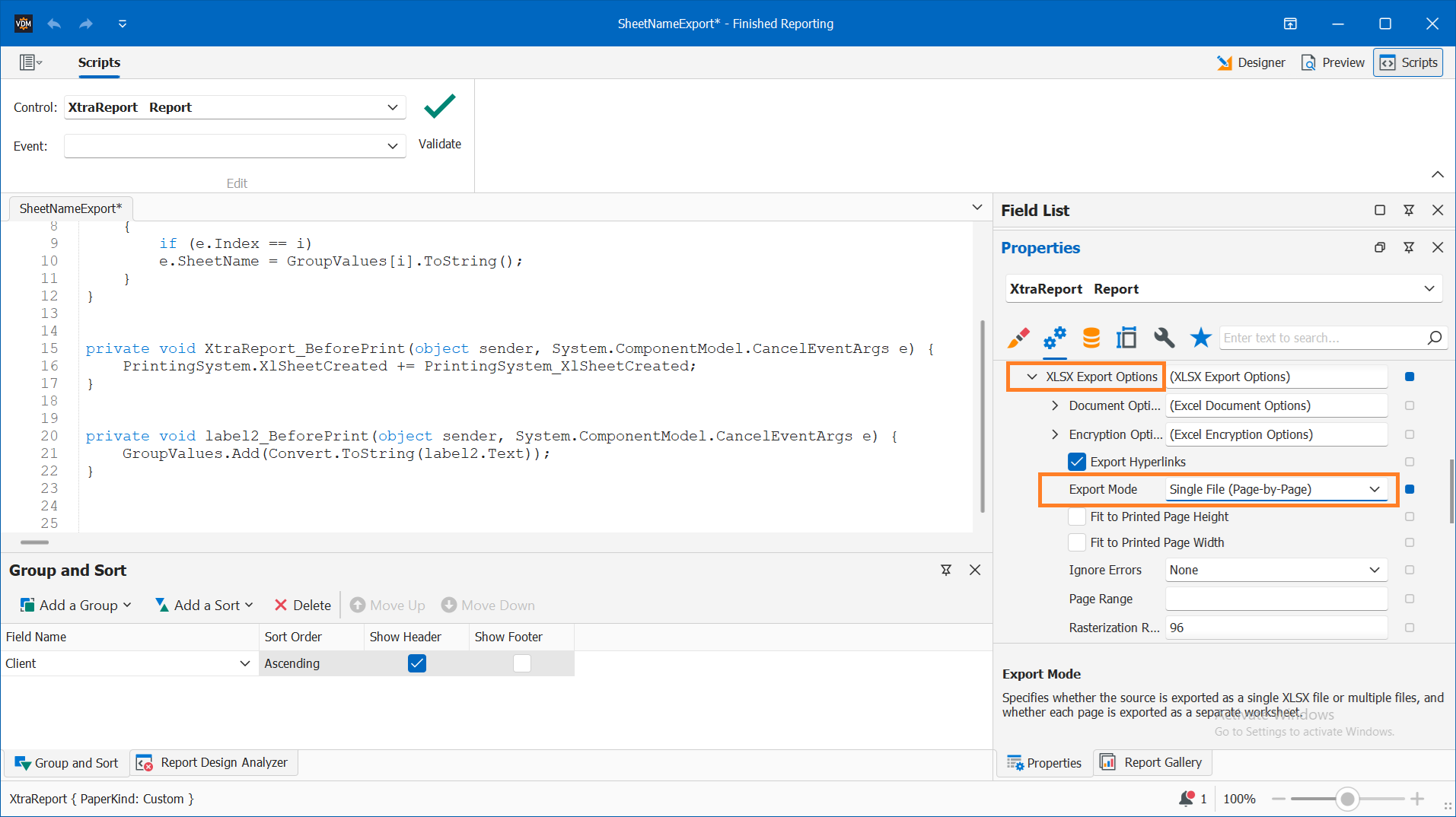

2. Under XLSX Export Options, set Export Mode to: Single File (Page-by-Page)

Tip: This ensures that each page becomes a separate tab within the same Excel file.
