Formatting Chart Axis Values in Finished Reports

Trouble Viewing Images? Right-click on any image and select "Open in new tab" to view a larger version. You can also zoom in using Ctrl + Mouse Wheel for easier readability.

Article Goal

Learn how to format the X and Y axis values on a chart within the Finished Reports Designer, including numeric and currency formatting options.

Why Format Axis Values?

Formatting the X and Y axis values improves readability, especially when working with financial, large-scale, or date-related data. It ensures your charts convey the correct message clearly and professionally.

Note: Axis formatting applies per chart series and must be configured individually for each relevant axis (X or Y).

Where Is Axis Formatting Done?

Axis formatting is performed in the Chart Designer inside the Finished Reports Designer. You’ll access text patterns via the Label properties for the axis.

Steps to Format the X and Y Axis Values

Step 1: Run the View

Open and execute your View in VDM to load data into the report.

Step 2: Open the Finished Report Designer

Enter the Finished Reports Designer to begin editing your chart layout.

Step 3: Open the Chart Designer

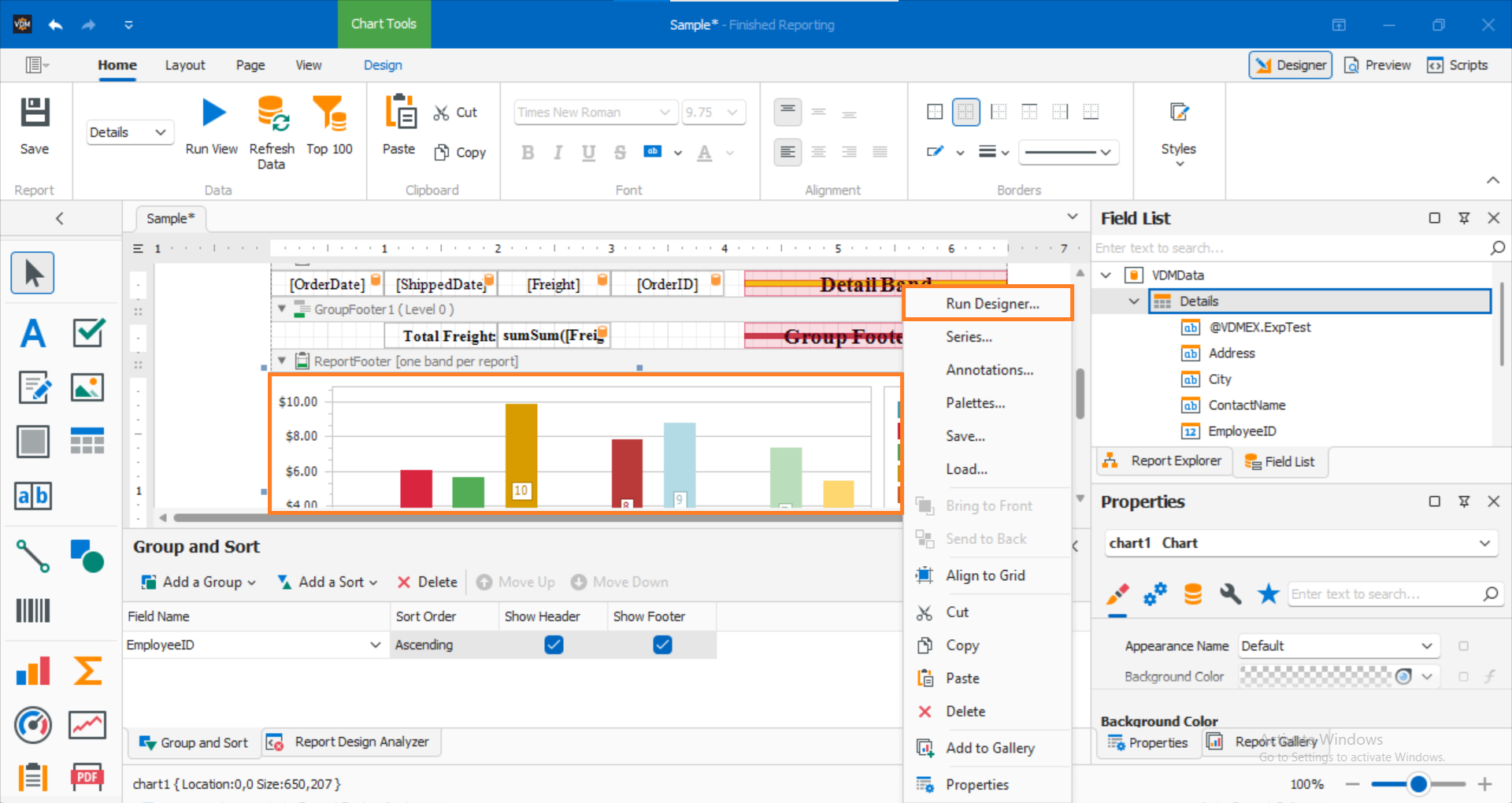

Click to edit the chart or right-click on it and select Run Designer to open the chart configuration window.

Step 4: Select the Axis

In the Chart Designer:

• Click on the series you want to modify.

• Then select the X or Y axis depending on what needs to be formatted.

Alternate Config – Pie Charts:
For pie charts, select the value series, then find the Text Pattern Editor under the Behavior section instead of axes.

Step 5: Open the Text Pattern / Pattern Editor

Expand the Label properties and click the “...” button next to Text Pattern to open the Pattern Editor.

Step 6: Select and Format Value

• Double-click the {V} placeholder.

• Click inside the braces after the V, then use the dropdown to:

  • Set Format Type (e.g., Number, Currency, Date)

  • Choose desired Unit, Precision, or enable group separator

• Once the desired format appears in the preview pane, double-click it to apply.

📎 Format Syntax:
{V:YourFormatHere}


Replace YourFormatHere with your chosen format string.

Step 7: Preview and Confirm

Click OK to apply changes, then preview the chart to confirm the desired output is reflected.

📎 Repeat Steps
Repeat for the X or Y axis as needed to format both directions.

Article Summary

Formatting X and Y axis values in Finished Reports enhances clarity and presentation in charts. By accessing the chart's Label Text Pattern settings, users can define custom numeric, date, or currency formatting. This is especially helpful in financial reporting and dashboards requiring consistent visual standards.
