Article Goal
Learn how to open an existing database connection in VDM so you can access tables, fields, and begin building views, reports, and filters.
What Is a Database Connection in VDM?
A database connection allows VDM to communicate with your organization's data source. Once connected, VDM can retrieve tables, fields, and other database objects that are available to your account.
Database connections are stored as Connection Profiles, which contain the information needed to connect to a specific database.
Before You Begin
Before opening a database connection, ensure that:
- A connection profile has already been created.
- You have permission to access the database.
- The database server is available and online.
- Your network connection is active.
If you have not yet created a connection profile, see How to Create a Database Connection Profile in VDM.
Why Open a Database Connection?
Opening a database connection allows you to:
- Browse available database tables and fields.
- Create views and reports.
- Build filters and queries.
- Access data for analysis and reporting.
A connection must be open before any data can be queried, grouped, etc.
Steps to Open a Database Connection
Step 1: Launch VDM
Open VDM and wait for the application to fully load.

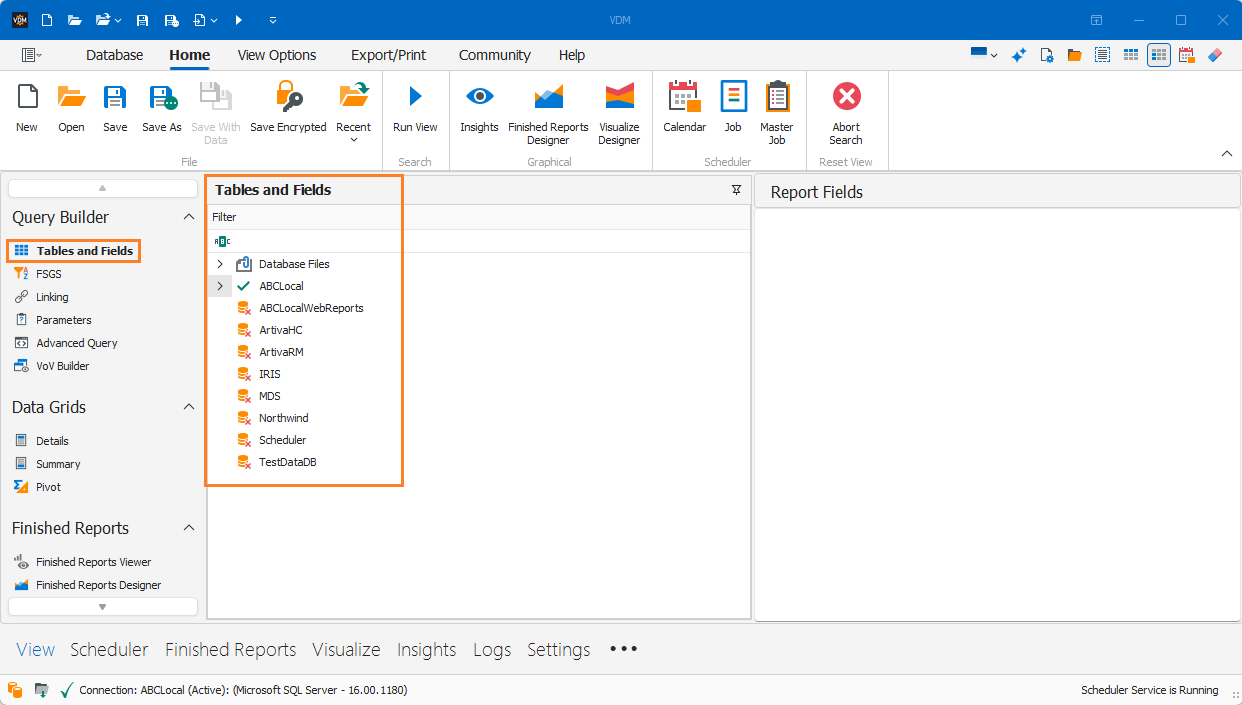

Step 2: Locate Your Connection Profile
In the Tables and Fields panel, locate the connection profile you want to open.
Step 3: Open the Connection
Click the desired connection profile. VDM will attempt to establish a connection using the settings stored in the profile.

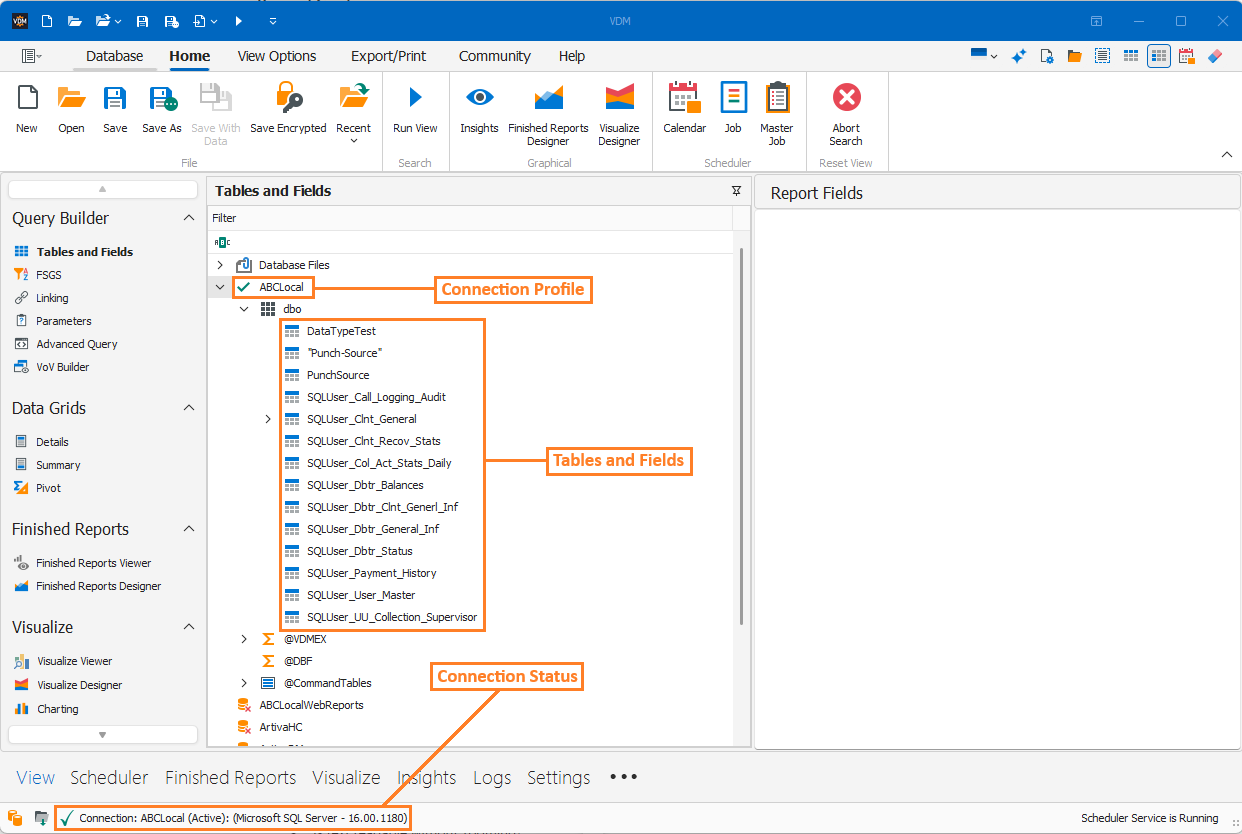

Step 4: Verify the Connection
Confirm that the connection opened successfully by checking for:
- A green checkmark next to the connection profile.
- An Active Connection status.
- Visible tables and fields beneath the connection profile.
If these indicators appear, your database connection is active and ready to use.
How to Know You're Connected
A successful connection typically displays:
✓ Green checkmark beside the connection profile
✓ Active Connection status

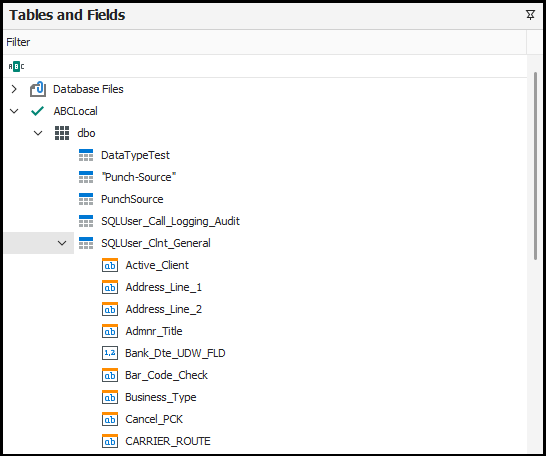

✓ Expanded list of available tables and fields
Once these indicators appear, you can begin working with your data.
Connection Profile
Connection Status
Tables and Fields
Common Issues and Troubleshooting
Red X Appears
Possible causes:
- Invalid credentials
- Network connectivity issues
- Database server unavailable
Try:
- Verifying your username and password.
- Confirming network access to the database server.
- Contacting your database administrator.
Video Tutorial
Article Summary
This article explains how to open an existing Connection Profile in VDM to begin accessing tables and building your view. It details how to connect your database and how to confirm a successful connection using on-screen indicators.
