Article Goal

Guide users through setting up a DeepSee / IRIS BI connection in VDM so they can build pivots, data visualizations, and finished reports using BI cubes from an InterSystems environment.

Why Use This Connection Type?

With this integration, you can:

Build interactive pivots and data visualizations using InterSystems BI cube data
Combine DeepSee/IRIS BI cubes with other VDM features such as Finished Reports
Eliminate the need for custom ODBC or database views to access analytic cubes

⚠️ Beta Notice:
This feature is currently in beta. Please share issues, feedback, or enhancement suggestions with our support team at support@bridgeworksllc.com.

Steps to Create a DeepSee or IRIS BI Connection in VDM

Step 1: Launch the Connection Wizard

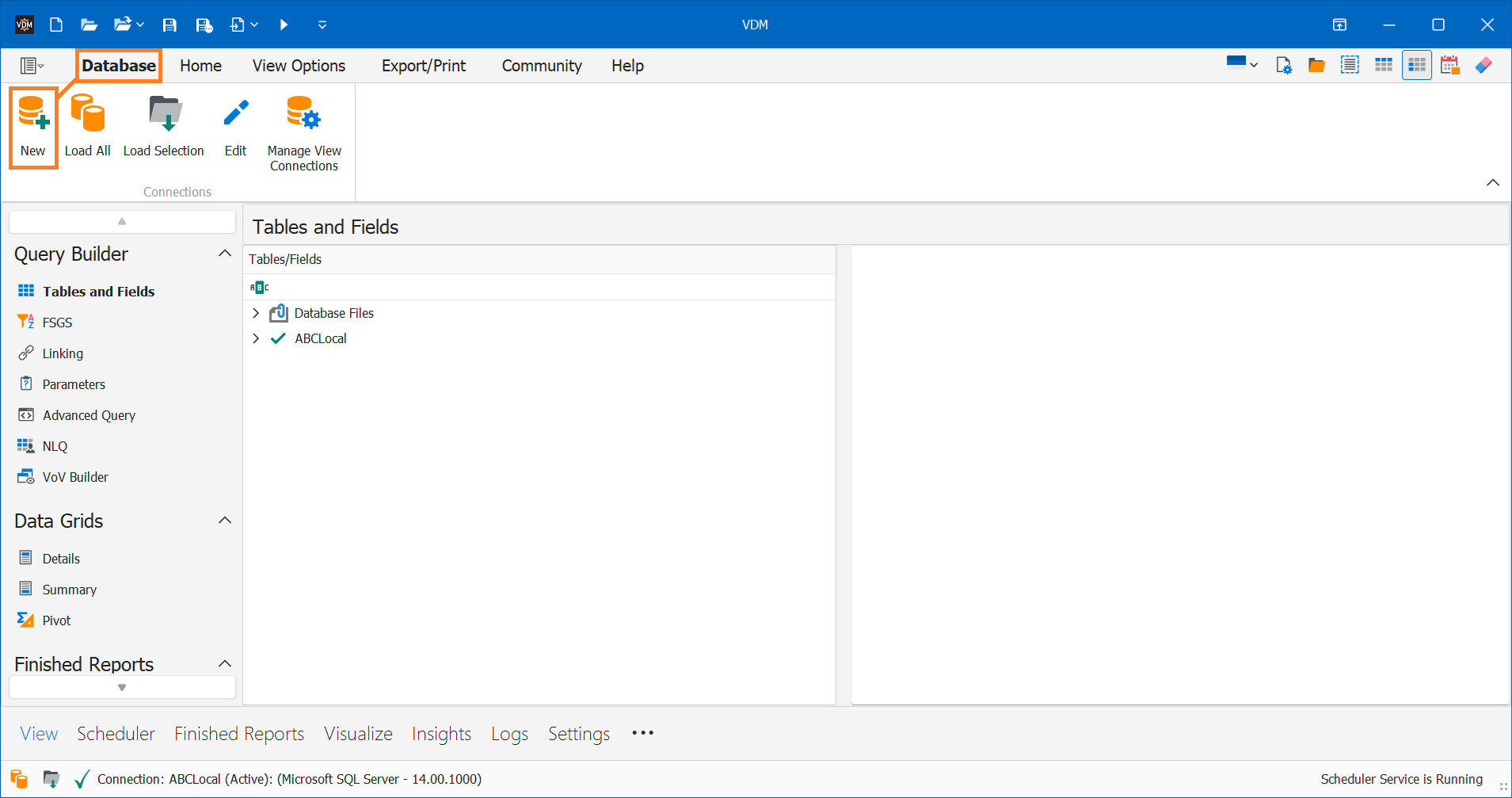

In VDM, click the Database tab on the ribbon
Click New to open the Connection Wizard

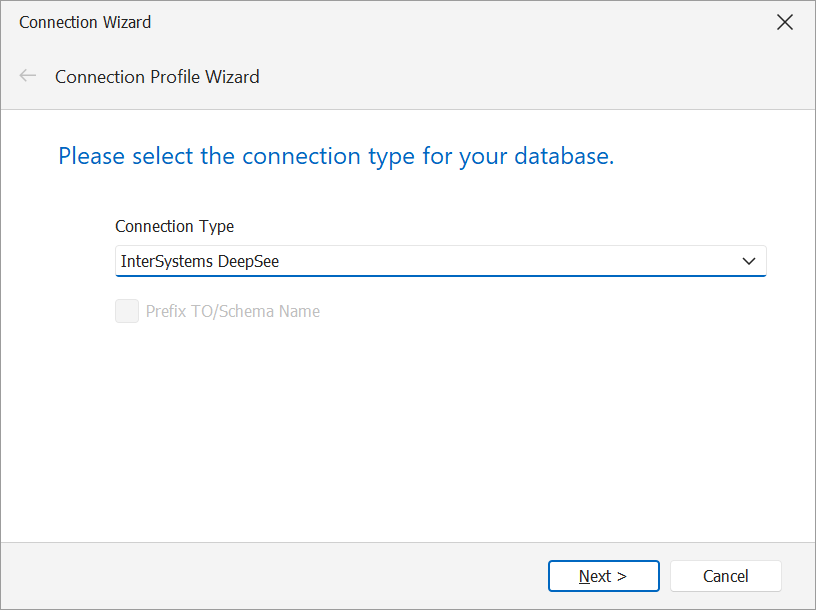

Step 2: Select the Connection Type

From the Connection Type list, choose:
InterSystems DeepSee / InterSystems IRIS BI

🧠 This is the designated type for DeepSee or IRIS BI cube access via REST API.

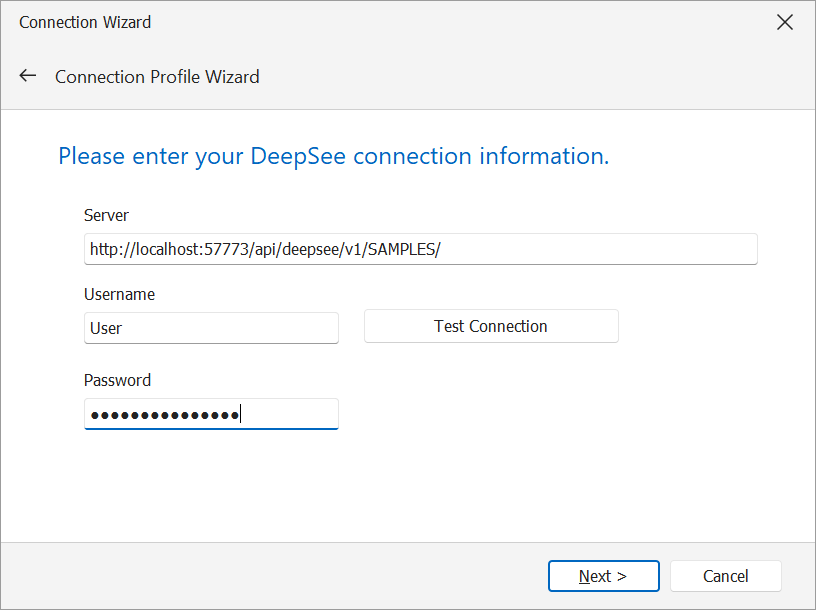

Step 3: Enter Connection Details

Provide the following information:

URL to DeepSee REST API
- Format: http://<host>:<port>/api/deepsee/v1/<namespace>/
- Example: http://localhost:57773/api/deepsee/v1/SAMPLES/
Username and Password (if authentication is required)

⚠️ Important: The DeepSee.RESTClient.cls page must be available on your InterSystems instance. If this page is missing or inaccessible, VDM will not be able to connect.

Step 4: Name and Finish the Connection Profile

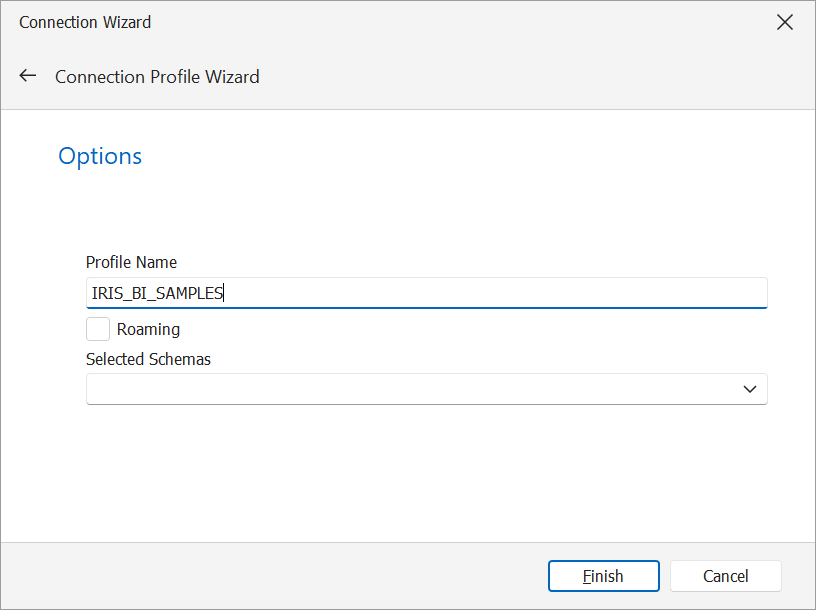

Enter a name for your new Connection Profile, then click Finish.

📝 Use a clear and descriptive name (e.g., IRIS_BI_SAMPLES) to help with identification in multi-connection environments.

Step 5: Load the Connection

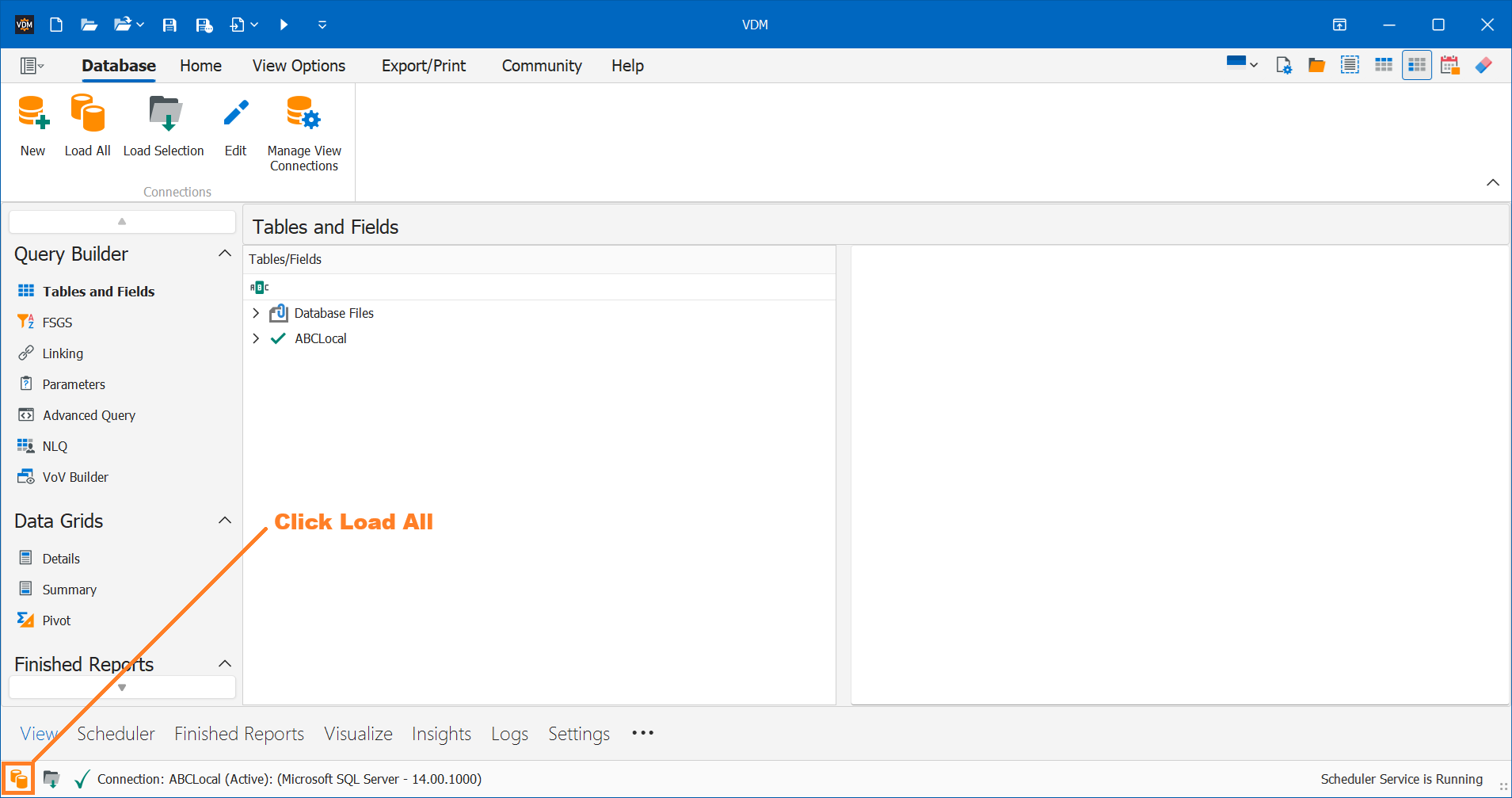

Click Load All to initialize the connection and load the cube metadata into VDM.

✅ You should now see your DeepSee/IRIS cubes listed in the Tables and Fields panel.

Article Summary

This article outlines how to create a connection to InterSystems DeepSee or IRIS BI cubes in VDM using the built-in DeepSee connection type. Once the REST API connection is established, users can build pivot tables and finished reports using cube data. This feature is currently in beta, and user feedback is encouraged to improve functionality.
