Article Goal
Learn the layout of the Visualize Designer in VDM, including where elements, fields, and data sources are located, and how to use the Data Items Pane to build visualizations.
Why Use the Visualize Designer?
The Visualize Designer is your main workspace for building interactive dashboards and reports. It organizes available elements, database fields, and data sources in one interface, making it easier to drag, drop, and configure visualizations.
Use Case: If you want to quickly create a chart showing sales by region, you can drag fields from the Green Section into the data items pane, and then choose the appropriate element (chart, grid, map, etc.) from the Orange Section.
Where to Access the Visualize Designer

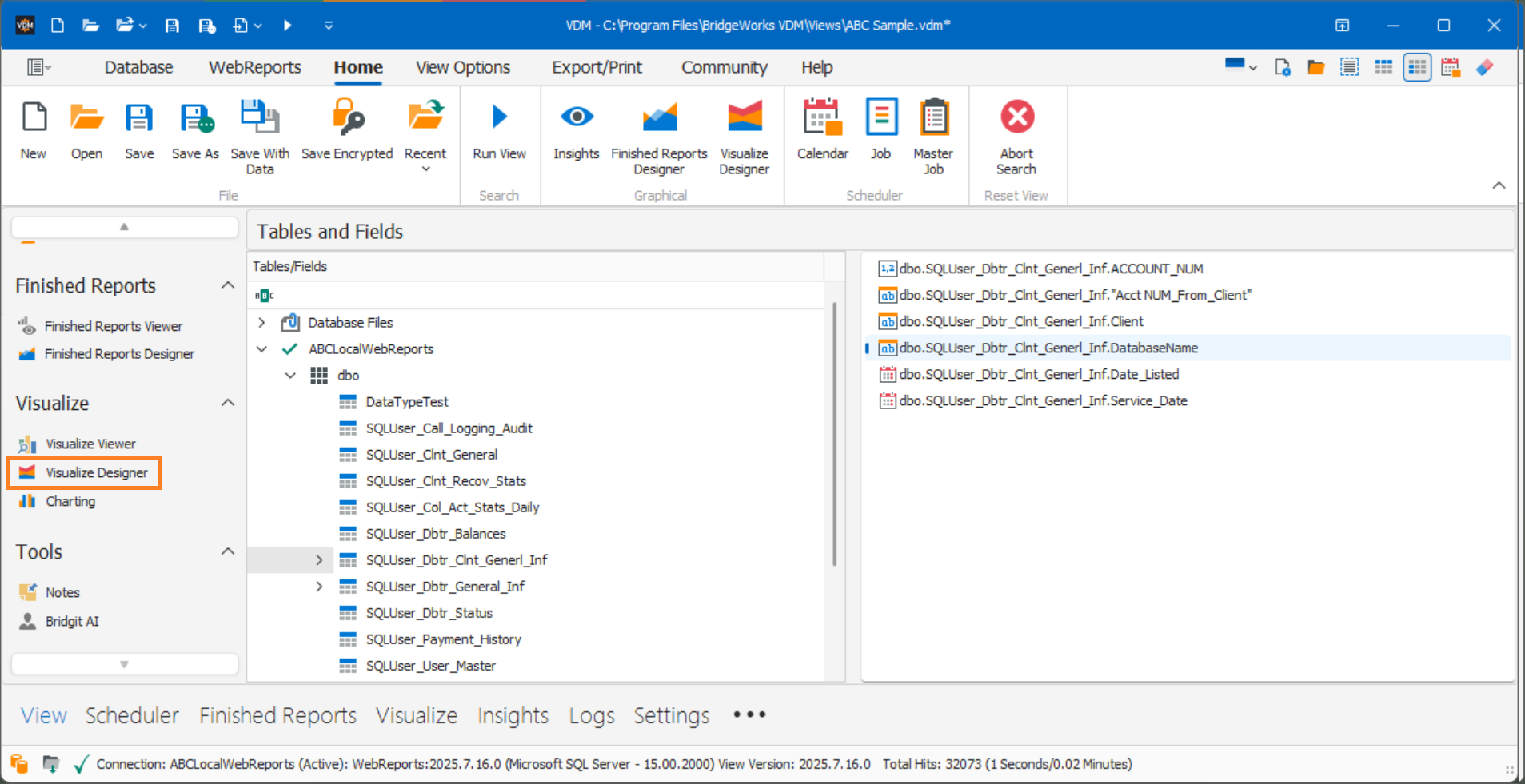

You can access the Visualize Designer directly from VDM’s main screen by clicking Visualize Designer.
Layout of the Visualize Designer

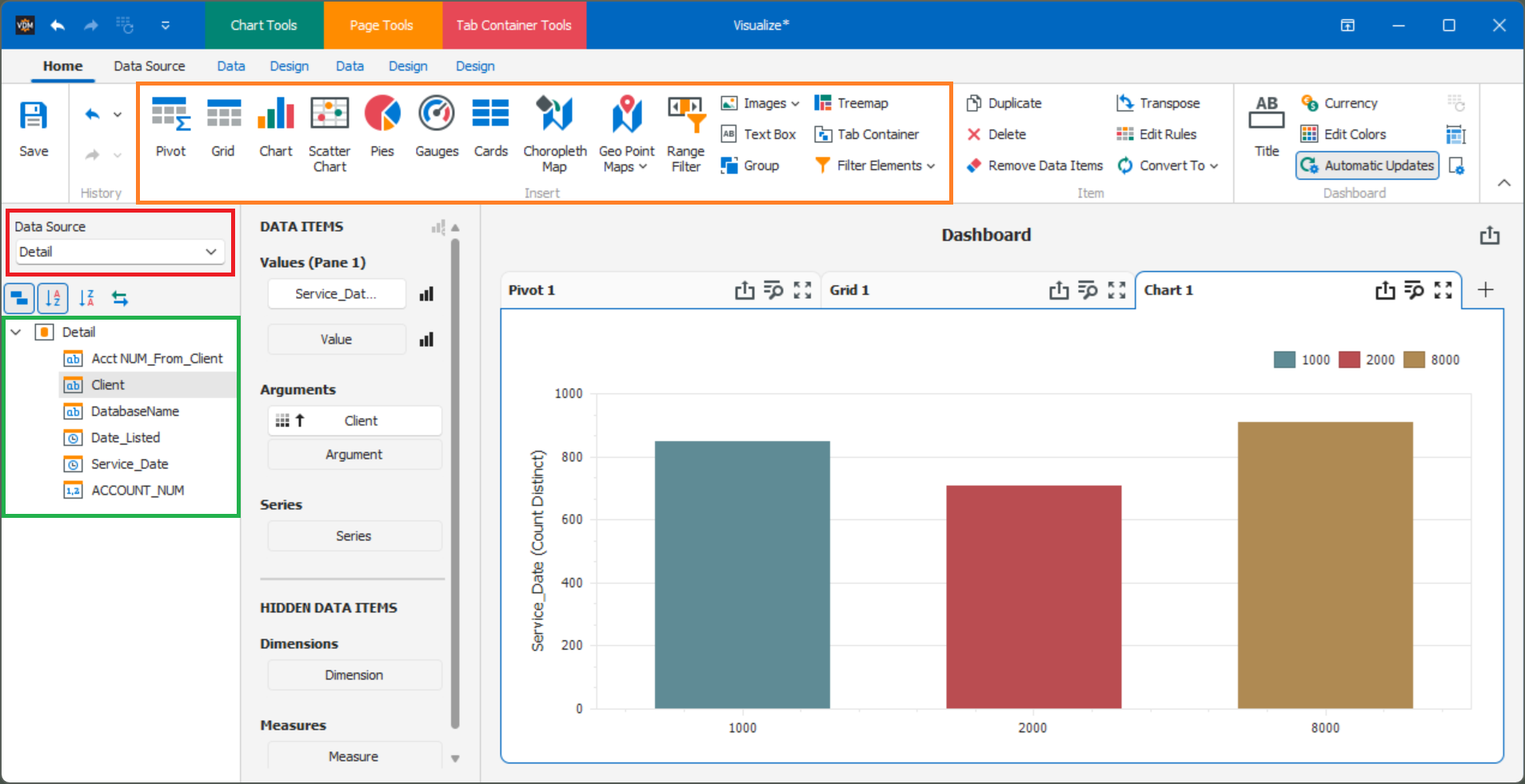

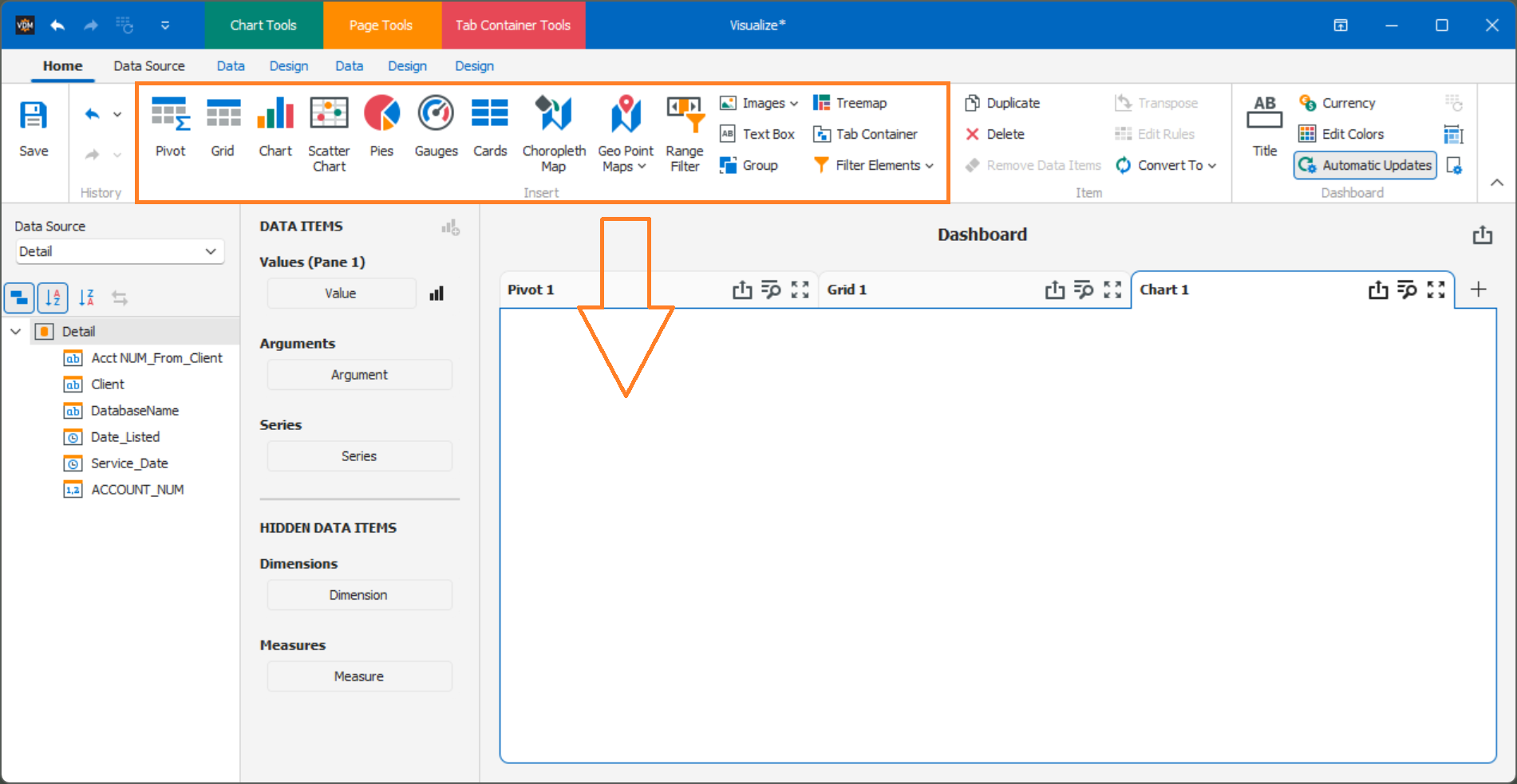

Orange Section – The available elements you can use in your visualization (charts, grids, cards, maps, etc.).
Red Section – The data source selector. You can choose between Summary or Details, with Details being the most common choice.
Green Section – The list of available fields from your dataset that you can drag into your visualization.
Steps to Use the Visualize Designer
Step 1: Open the Visualize Designer
Launch VDM and click Visualize Designer on the main screen.
Step 2: Select a Data Source
Choose between Details / Summary / Transposed. Most commonly, the Details (default) data source is used.
Step 3: Add Elements
Pick an element from the Orange Section (e.g., chart, grid, or card).
Step 4: Add Fields
Expand the tables in the Green Section to view available fields. Drag and drop fields into the Data Items Pane to start building your visualization.
Step 5: Customize the Visualization
Use the Data Items Pane to drag and drop values or arguments. Available options will vary depending on the element type.
Article Summary
The Visualize Designer in VDM provides a structured workspace to create powerful, interactive dashboards. The layout is divided into three key sections—elements (orange), data sources (red), and fields (green)—with the Data Items Pane at the core of customization. By selecting fields, assigning them to elements, and adjusting arguments, users can quickly build visualizations that provide actionable insights.
Use Case: A business analyst can design a sales dashboard by choosing Details as the data source, dragging fields like Region and Sales, and dropping them into a chart element to instantly see performance by geography.
