Syntax / Examples of Markup Text Formatting

Trouble seeing the images? Right click on images and open in new tab to enlarge or zoom in on the page (Ctrl + mousewheel).

Article Goal: Provide a source of the available HTML tags that can be used with the Allow Markup Text property in Finished Reports.

In this article we are going provide a few HTML tags that can be used with the Allow Markup Text property in Finished Reports.

Try it out using our Sample View! Just click the link to download the View (saved with data).

Example: Formatting Label with Markup Text / Expression Logic

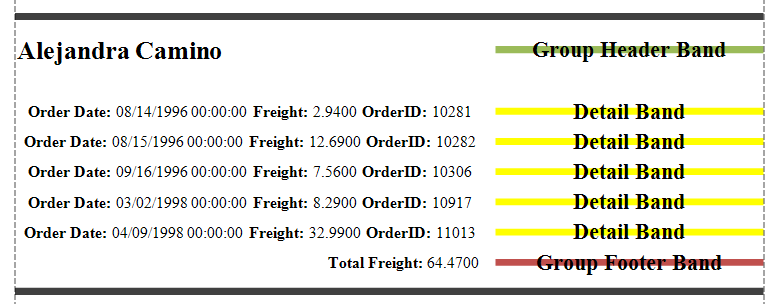

Example: Results

Available Format Tags / Syntax / Examples

Text Format Tags

• Bold text
  • Syntax: <b></b>
  • Example: '<b>Bold text</b>'

• Italic text
  • Syntax: <i></i>
  • Example: '<i>Italic text</i>'

• Strikethrough text
  • Syntax: <s></s>
  • Example: '<s>Strikethrough text</s>'

• Underlined text
  • Syntax: <u></u>
  • Example: '<u>Underlined text</u>'

• Combination text
  • '<b><u> Bold and Underlined text </u></b> '
  • The <r> tag applies normal text formatting, resetting any existing bold, italic, underlined, and strikethrough formats following the tag.
    • '<b><u> Bold and Underlined text<r>Normal or Reset Format Text </u></b>'

MISC Format Tags

• Size
  • Syntax: '<size=value></size>'
  • Example: '<size=10>10pt text</size>'

• Color
  • Syntax: '<color=value></color>'
  • Example: '<color=red>Red Text</color>'

• Backcolor
  • Syntax: <backcolor=value></backcolor>
  • Example: '<backcolor=red>Red Highlight</backcolor>'

• Line break
  • Syntax: <br>
  • Example: 'Hello<br>World'

• Font
  • Syntax: <font></font>
  • Example: '<font=Helvetica>Helvetica text</font>'

• Subscript & Superscript
  • Syntax: ,
  • Example: '_{Subscript Text}' or '^{Superscript Text}'

• Hyperlink
  • '<href=value>Your URL</href>' or '<a href=value>Your URL</a>'
  • If the value contains a space, put the string in quotes.
  • value = the URL you want.

• Non-breaking Space
  • Syntax:<nbsp>
  • Example: 'Hello<nbsp>World'

Try it out using our Sample View! Just click the link to download the View (saved with data).
